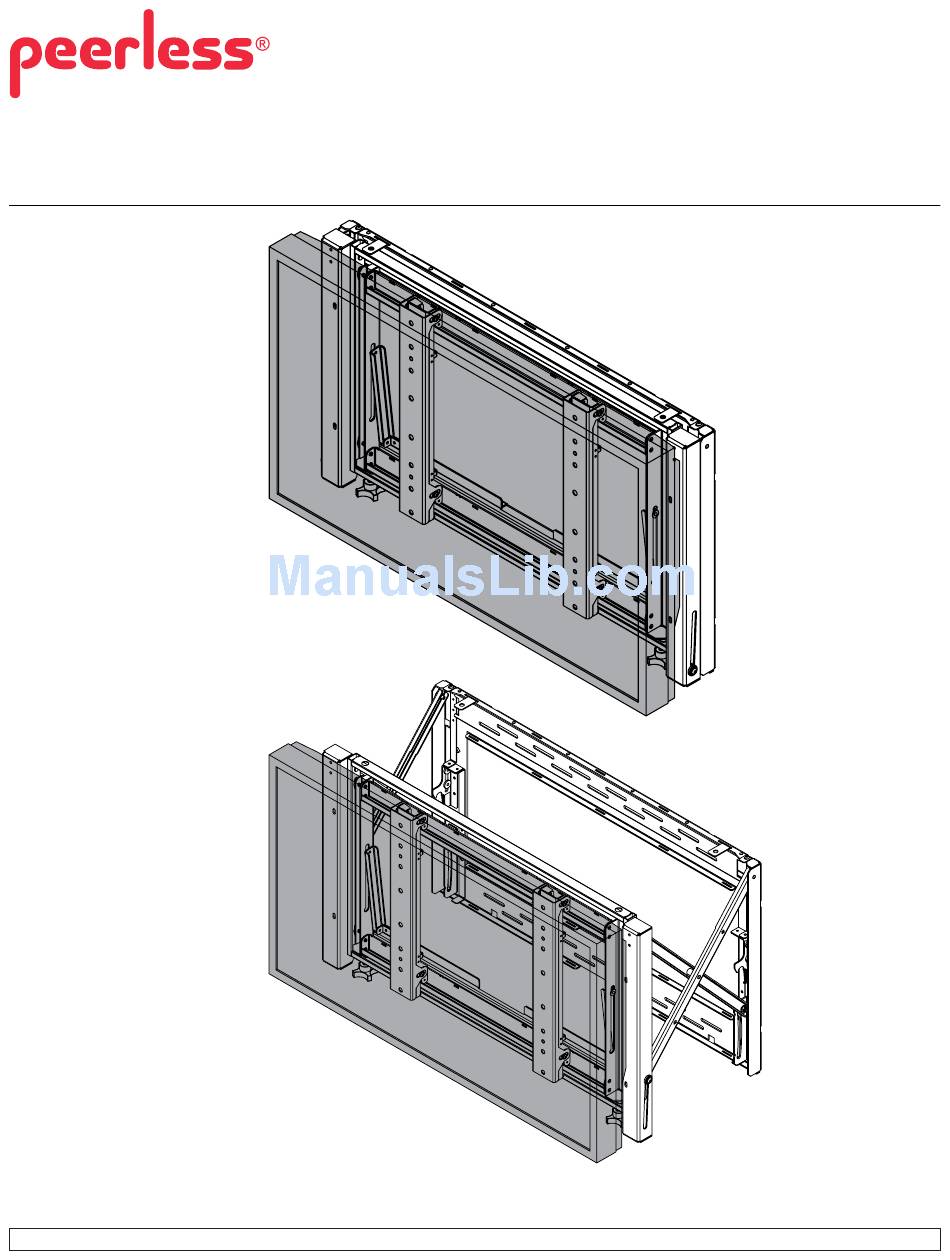

- Page 1 Installation and Assembly: Full Service Video Wall Mount Model: DS-VW760 COLLAPSED EXTENDED Maximum Load Capacity: 150 Ib ( 68 kg) 1 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
- Page 2 NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
- Page 3 Vertical Spacing Location If DS-VWS0## Wall Plate Spacer Kit is not available use diagram below to determine vertical spacing. To determine lower mounting slot position of second mount, add display height to (Y1) or (Y2) DISPLAY HEIGHT 10.25 1.688 Vertical Location .938 X - 10.25 + (.938 OR 1.688) = (Y1 OR Y2) Horizontal Spacing Location If DS-VWS0## Wall Plate Spacer Kit is not available use diagram below to determine horizontal spacing.
- Page 4 Parts List Description Qty. Part # A pull out mount assembly 145‐1104 B adapter bracket 145‐1105 C lock bracket 145‐1091 D M5 x 10 mm socket pin type‐F screw 520‐1164 E #14 x 2.5" hex head wood screw 5S1‐015‐C03 F concrete anchor 590‐0320 G fender washer 540‐1008 H nylon shoulder washer 590‐2233 I M6 x 12 mm phillips screw 520‐1128 J M8 x 15 mm phillips screw 520‐9257 K 4 mm allen wrench 560‐9646 L cable tie (not shown) 560‐9711 M mesh sleeve (not shown) 600‐1014 Open video wall mount assembly by releasing locking tab. Pull or push up...
- Page 5 Removing Display Carriage Remove display carriage by removing clip, pull release pin, and screws as shown. Remove screws using 4 mm allen wrench (K). 5 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
- Page 6 Installation to Wall Stud WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. • Never tighten in excess of 80 in. • lb (9 N.M.). • Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder is highly recommended. • Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install- ers are responsible to provide hardware for other types of mounting situations. Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended.
-
Page 7: Installation To Solid Concrete Or Cinder Block
Installation to Solid Concrete or Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1" (25 mm) minimum from the side of the block. Cinder block must meet ASTM C-90 specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid breaking out the back of the hole when entering a void or cavity. • Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor. - Page 8 Re-Attaching Display Carriage Secure display carriage by pulling release pin, fastening clevis pin, clip, four screws, and spacer as shown. NOTE: make sure that spacer is in-between display carriage and video wall mount assembly. Attaching Adapter Brackets to Display Attach adapter brackets (B) to back of display using four M6 x 12 mm phillips screws (I) with nylon shoulder washer (H), or four M8 x 15 mm phillips screws (J) as shown below.
- Page 9 Attaching Adapter Brackets to Display Carriage Attach adapter brackets (B) to display carriage. Slide adapter brackets (B) to position based on hole pattern as shown below. Loosely fasten in place using security screw as shown in detail 1. NOTE: Once display is located in desired position, tighten security screws using 4mm allen wrench (K) to lock in place. Horizontal Display Position OPTIONAL GUIDE: When positioning adapter brackets make sure outside edge of adapter bracket is in notch on display carriage as shown in detail 2. 9 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
- Page 10 Display Carriage Adjustment Use legend below to determine position of display. NOTE: Each knob can be adjusted independently for fine tuning adjustments. Turn knob CLOCKWISE to tighten Turn knob COUNTER-CLOCKWISE to loosen DOWN ROTATE LEFT ROTATE RIGHT 10 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
- Page 11 Adapter Bracket Adjustment Use legend below to determine position of display. NOTE: Each knob can be adjusted independently for fine tuning adjustments. Turn knob CLOCKWISE to tighten Turn knob COUNTER-CLOCKWISE to loosen TILT FORWARD BACK BACK BACK TILT BACKWARD TILT RIGHT TILT LEFT BACK BACK BACK 11 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
-
Page 12: Cable Management
Cable Management Display cables can be routed through top or bottom of video wall mount assembly. NOTE: Use mesh sleeve (M) and cable ties (L) for cable management as shown in detail 3 NOTE: Cable ties and cable management slots on video wall mount assembly can be used to secure display cables. 12 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10... - Page 13 Open and Close Display Carriage Open display carriage by releasing locking pin. Once open push down on access bracket to lock display carriage in place. NOTE: Make sure that access bracket is notch in display carriage as shown in detail 4. Close Display Carriage Close display carriage by pulling up on access bracket to unlock display carriage. Once unlocked close display carriage. NOTE: Make sure that access bracket is out of notch in display carriage before closing. 13 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
- Page 14 Secure locking tab using two socket pin screws (D) as shown below. Lock bracket (C) and lock (not supplied) can be used to secure display carriage to video wall mount assembly as shown in below. Optional 14 of 14 ISSUED: 04-23-10 SHEET #: 145-9010-2 04-27-10...
