Installation and Assembly:

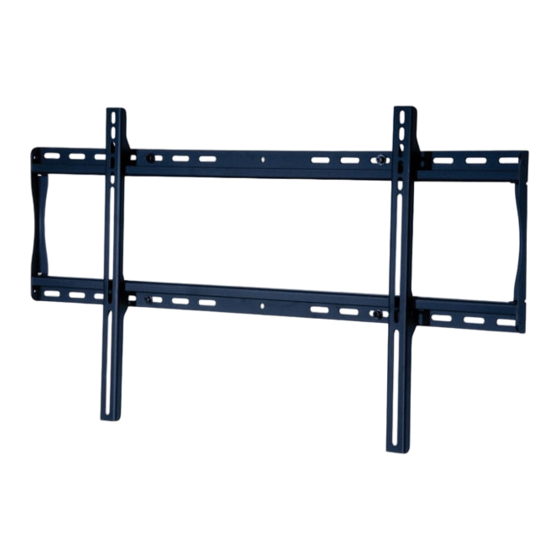

Universal Flat Wall Mount for 32" to 63" Screens
Models: D-FPF-320, D-FPF-320S, SF 660P, SF 660P-S
Features:
•
For 32" to 63" flat panel screens
•
Ultra-slim design holds the screen flat against the wall
• Screen simply hooks onto the wall plate for quick and easy installation
• Includes hardware for installation to wood studs, concrete, and cinder block
4900 Industry Drive • Central Point, OR 97502 • (800) 888-6024 or (541) 779-3763 • Fax: (541) 779-0829 • www.ergoindemand.com
Max Load Capacity: 200 lb (90.7 kg)
ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05
Advertisement
Related Manuals for PEERLESS SmartMount D-FPF-320
Summary of Contents for PEERLESS SmartMount D-FPF-320
- Page 1 Installation and Assembly: Universal Flat Wall Mount for 32" to 63" Screens Models: D-FPF-320, D-FPF-320S, SF 660P, SF 660P-S Features: • For 32" to 63" flat panel screens • Ultra-slim design holds the screen flat against the wall • Screen simply hooks onto the wall plate for quick and easy installation •...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING •Do not begin to install your product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call customer care at 1-800-888-6024. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. D-FPF-320 D-FPF-320S Parts List SF 660P SF 660P-S Description Qty Part # Part # AA wall plate 200-1796 200-4796 BB shallow adapter bracket 200-0754 200-0755 CC deep adapter bracket 200-0750 200-0751 DD #14 x 2-1/2"... -
Page 4: Installation To Wood Stud Wall
Installation to Wood Stud Wall WARNING • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. Using a stud finder, locate the edges of the wood studs used in mounting this product. Use of an edge-to-edge stud finder is highly recommended. -
Page 5: Installation To Solid Concrete And Cinder Block Wall
Installation to Solid Concrete and Cinder Block Wall WARNING •When installing wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... -
Page 6: Installing Adapter Brackets
Installing Adapter Brackets Refer to Screen Compatibility Chart to determine the proper fasteners to use. To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached. Place adapter brackets (BB or CC) on back of screen, align to holes, and center on back of screen as shown in figure 2.1. -
Page 7: Attaching Flat Panel Screen To Wall Mount
ISSUED: 03-23-05 SHEET #: 201-9398-5 08-03-05 © 2005 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark and Smart mount is a trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.
