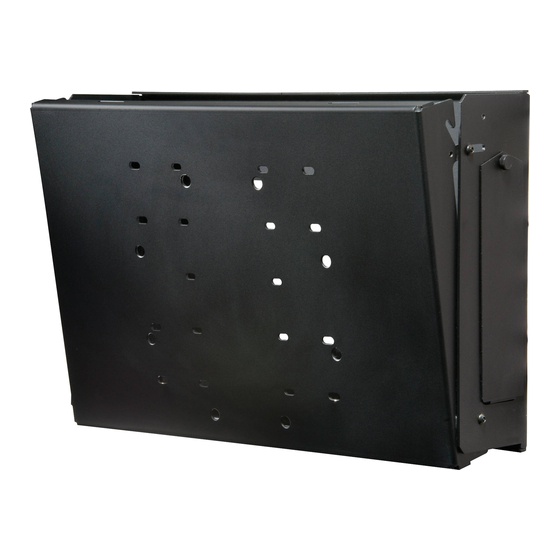

Installation and Assembly - TV and PC Mount
IMPORTANT! Read instruction sheet before you start installation and assembly.
Before you start make sure all parts listed are included with your product.

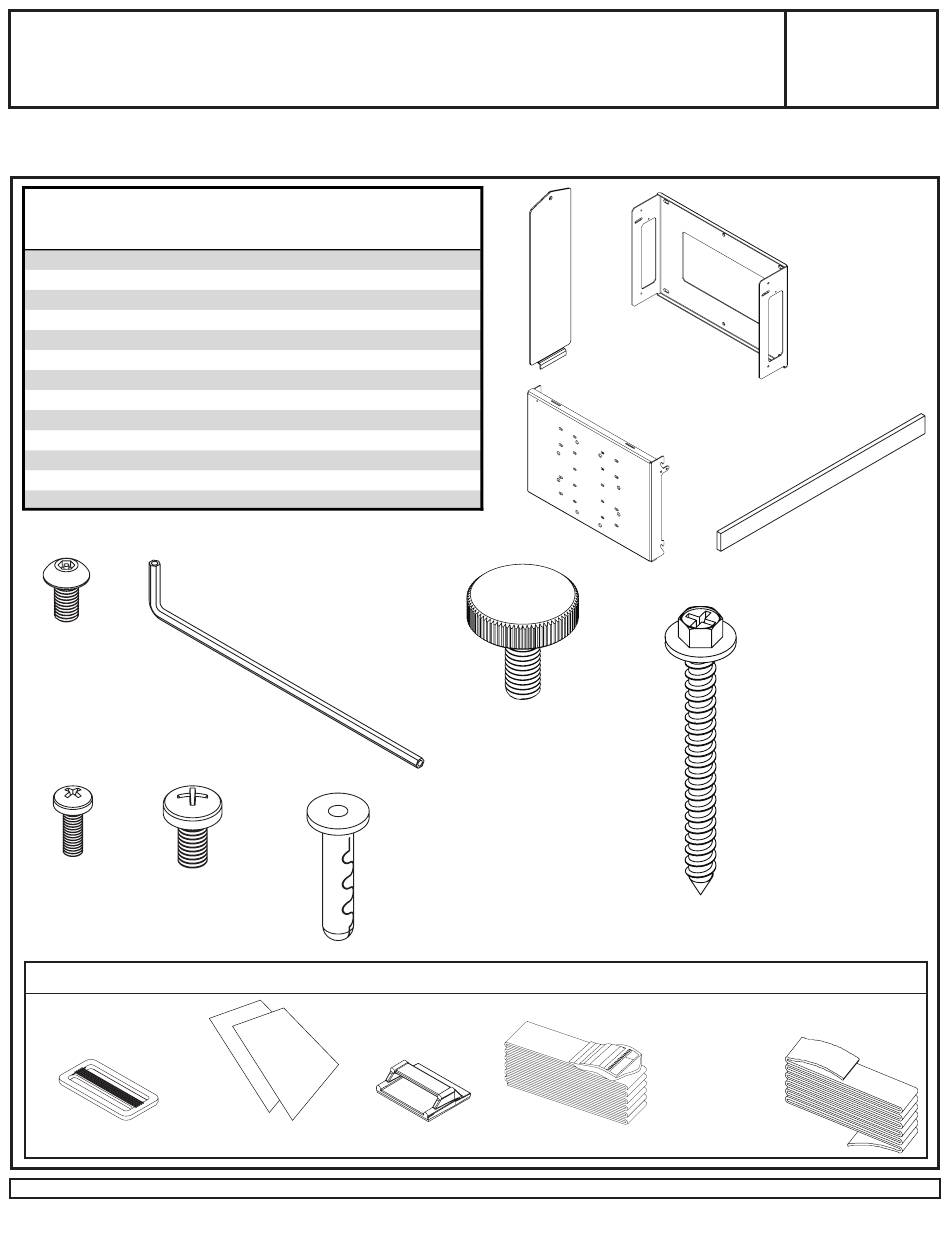

Parts List
Description
A
cover plate
B
wall plate
C
screen plate
D
bumper strip
E
M5 x 10 mm type-F socket pin screw
F
4 mm security allen wrench
G
M4 x 10 mm knurled knob
H
M4 x 12 mm phillips screw
I
M6 x 12 mm phillips screw
J
#14 x 2.5" wood screw
K
aligator anchor
L
safety belt kit
M
4 pack of togglers (not shown)
Some parts may appear slightly different than illustrated.
E
F
H
I
TrI-bAr bELT CLIP
Visit the Peerless Web Site at www.peerlessmounts.com
Qty.
Part #
2
201-1335
1
201-1337
1
201-1649
1
570-1029
6
520-1164
1
560-9646
2
560-1151
4
504-9013
4
520-1128
4
5S1-015-C03
4
590-0097
2
170-8039-1
1
ACC415
K
Safety Belt Kit (L)
CLEAr STrIPS
bELT gUIDE
A
B
C
G
bELT WITH CInCH bUCkLE
1 of 5
For customer care call 1-800-729-0307 or 708-865-8870.
Model: DS415
J
MAX LOAD CAPACITY: 150 lb (68 kg)
bELT WITHOUT CInCH bUCkLE
ISSUED: 03-05-09 SHEET #: 125-9051-1
