Summary of Contents for PEERLESS DS-VL-H018

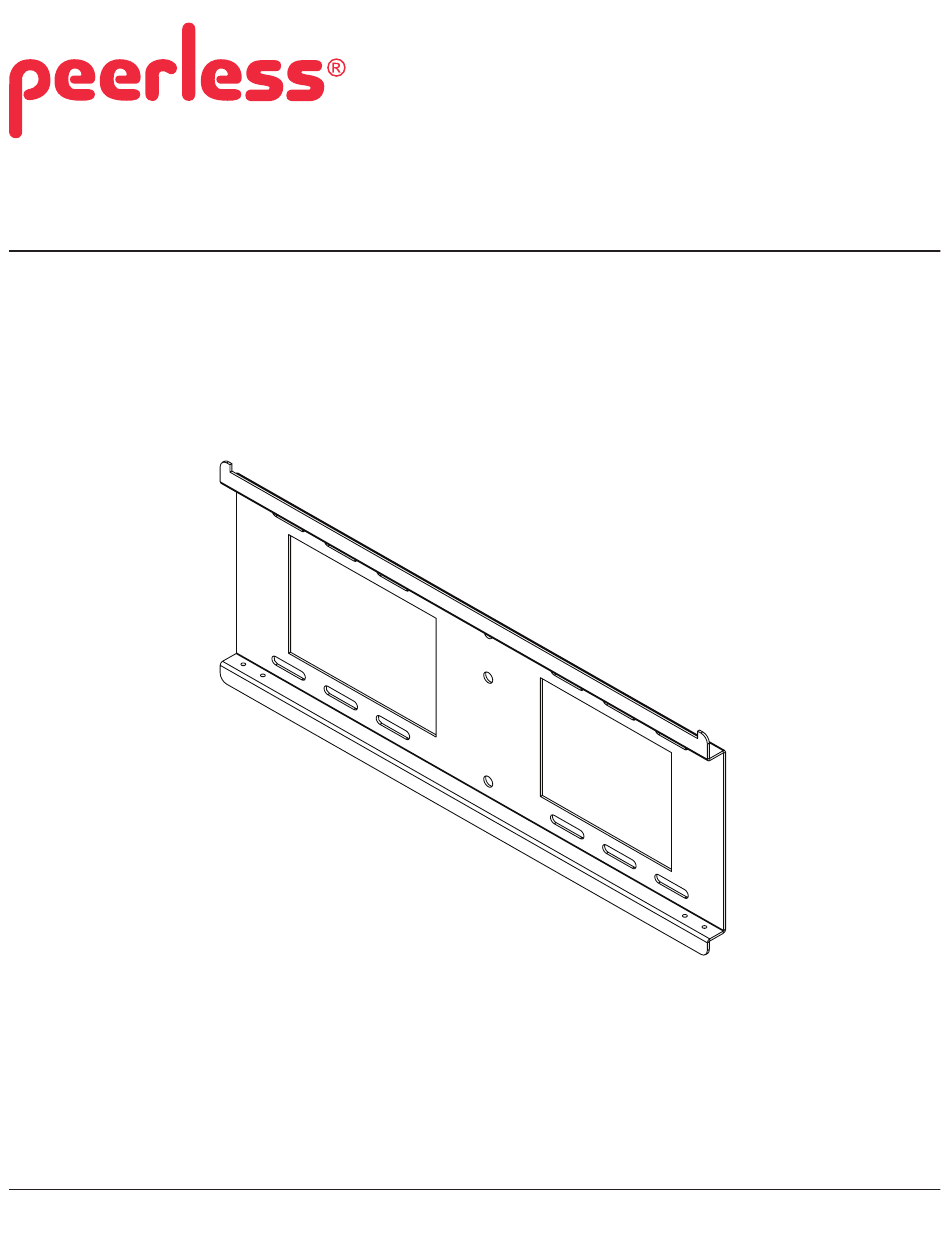

- Page 1 Installation and Assembly: 18" Wall Plate Accessory Model: DS-VL-H018 Maximum Load Capacity: 150 lb (68 kg) 2300 White Oak Circle. • Aurora, IL 60502 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 10-28-10 SHEET #: 120-9092-1...
-
Page 2: Wall Construction
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112. -
Page 3: Parts List
Before you begin, make sure all parts shown are included with your product. PARTS LIST Description Qty. Part # A wall plate 145-1218 B M4 x 12 mm socket pin serrated washer head screw 510-1079 C 8 mm concrete anchor 590-0320 D wall plate connector 024-1045... -
Page 4: Installation To Double Wood Stud Wall
Installation to Double Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. -
Page 5: Installation To Solid Concrete Or Cinder Block
WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"... - Page 6 WALL PLATE MAY APPEAR DIFFERENT THAN ILLUSTRATED ACC-DSV240 (SOLD SEPARATELY) 6 of 6 ISSUED: 10-28-10 SHEET #: 120-9092-1 © 2010, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
