Installation and Assembly:

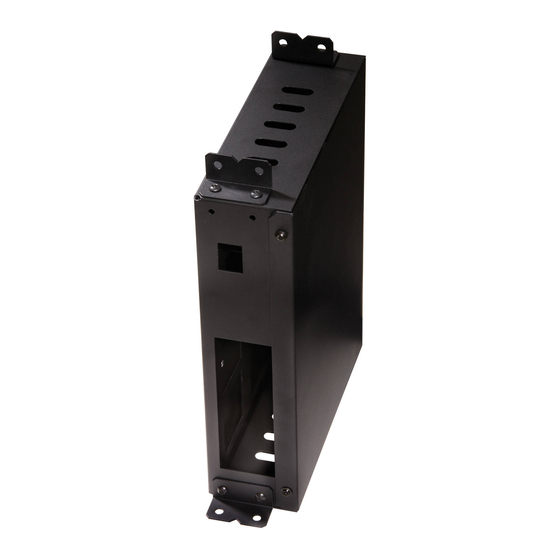

Custom Mac Mini PC Holder
Model: DS495
NOTE:
Read entire instruction sheet before you start installation and assembly.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-865-2112.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
• Never exceed the Maximum Load Capacity.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
Maximum Load
WARNING
Capacity: 10 lb (4.5 kg)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PEERLESS DS495
Summary of Contents for PEERLESS DS495
- Page 1 Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.
- Page 2 Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List Description Qty. Part # A computer box 124-1139 B alternate support bracket 124-1141 C box cover 124-1140 D #10 x 1/2" TEK phillips screw 520-1320 E M4 x 10 mm serrated washer head socket pin screw 510-1060...
- Page 3 Installation to PLCM-2 (Not Included) WARNING • Installer must verify that the supporting surface will safely support the combined weight of all attached equipment and hardware. Hold back of computer box (A) against the back of PLCM-2 (not included). Line up locator hole of computer box (A) with screw of PLCM-2 so that the head of screw is visible, as shown in fig.
- Page 4 Installation to Supporting Surface WARNING • Installer must verify that the supporting surface will safely support the combined weight of all attached equipment and hardware. There are eight mounting places for the alternate support brackets (B) as shown in fig. 1.3. Determined the locations for alternate support brackets (B) according to supporting surface.
- Page 5 NOTE: Box cover (C) can be oriented left or right. 5 of 5 ISSUED: 03-05-09 SHEET #: 125-9053-1 © 2007, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
