GHARiENi AMPHIBIA Instructions For Use Manual

Treatment bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

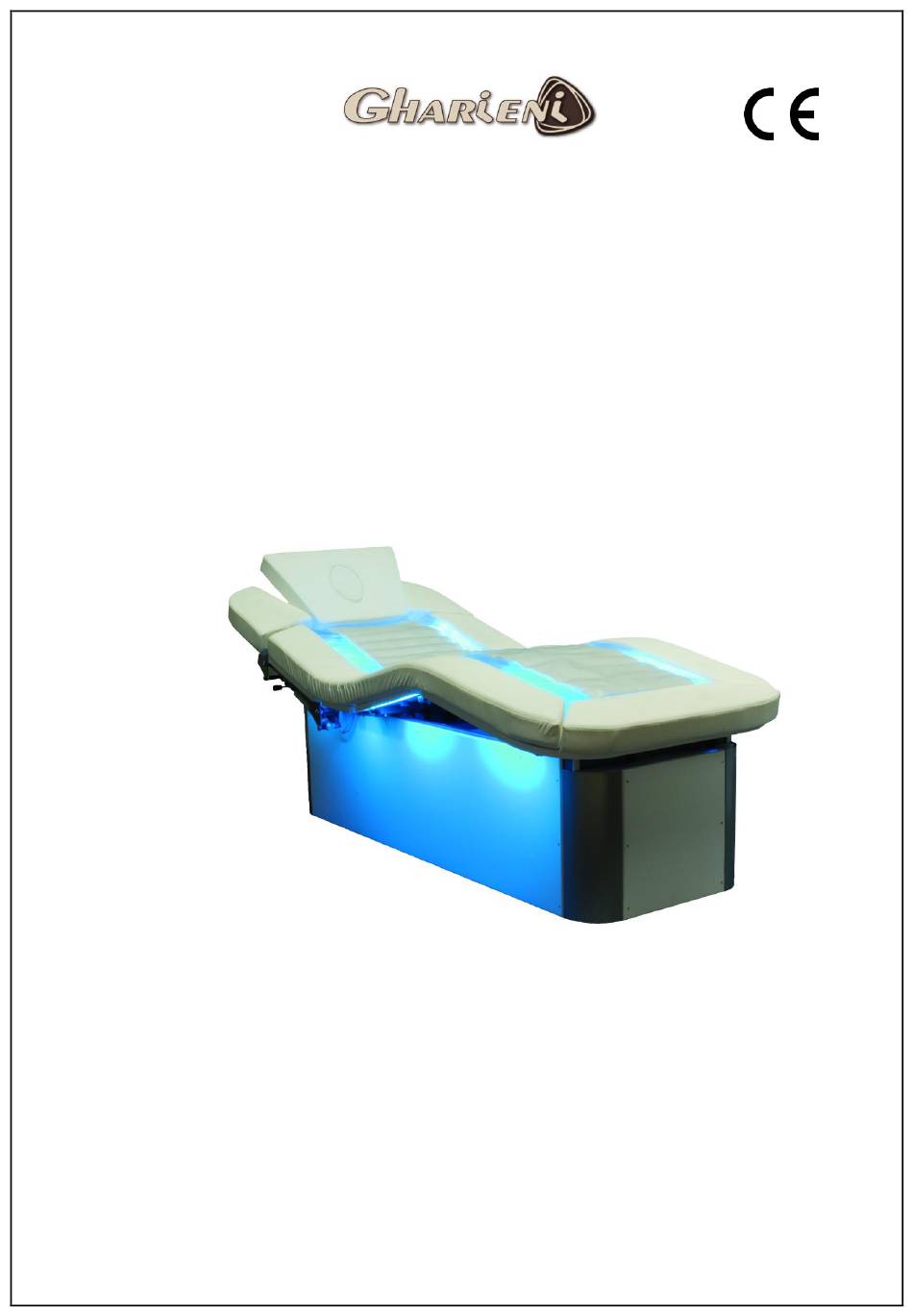

I
NSTRUCTIONS FOR USE
Tel.:
+49(0)2841/88300-163
Fax:
+49(0)2841/88300-999
Service Hotline: +49(0)2841/88300-40
A
MPHIBIA
T
REATMENT BED
Gharieni GmbH
Gutenbergstraße 40
D - 47443 Moers
G H A R I E N I b e d s
E-mail:
service@gharieni.de
Internet:
www.gharieni.de
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMPHIBIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GHARiENi AMPHIBIA

Summary of Contents for GHARiENi AMPHIBIA

  • Page 1 NSTRUCTIONS FOR USE MPHIBIA REATMENT BED Gharieni GmbH Gutenbergstraße 40 D - 47443 Moers E-mail: service@gharieni.de Tel.: +49(0)2841/88300-163 Internet: www.gharieni.de Fax: +49(0)2841/88300-999 Service Hotline: +49(0)2841/88300-40 G H A R I E N I b e d s...

  • Page 2: Table Of Contents

    Contents of this manual ......................4 AFETY SYMBOLS USED ....................4 AFETY INSTRUCTIONS ......................5 NTENDED USE – .......... 5 UTHORISED OPERATORS OPERATING COMPANY S DUTY ................5 ANGER OF ELECTRICAL ENERGY ......................6 AFETY DEVICES ..............6 ANGERS DUE TO MECHANICAL ENERGY ................
  • Page 3 (HZO//HMU) ....18 ETTING THE TEMPERATURE OF THE UPPER HEATING MAT (HZU///HML) ........18 ETTING THE WATER CUSHION TEMPERATURE ..........18 ISPLAYING AND SETTING THE DURATION OF HEATING ....................19 LECTRIC IRBACK ........................19 IGHTING ) ..........19 OMPRESSED AIR FOR ACCESSORIES YURVEDA MAT ........................

  • Page 4: Safety Symbols Used

    S a f e t y s y m b o l s u s e d You will find the following safety instructions in this manual: Caution! If this safety instruction is not observed, the user's safety is endangered or the device may be damaged! Danger of electric current! Danger of electric shock! Danger of getting crushed!

  • Page 5: Intended Use

    1 . 1 I n t e n d e d u s e The Gharieni MLW Amphibia is a versatile wellness treatment bed. It can be used for cosmetic treatments or full-body massages. When the right accessories are added, such as the oil-resistant protective cover, it is suitable for Ayurveda treatments.

  • Page 6: Safety Devices

    plug for maintenance work, running the bed over the mains cord or a defective cord or cable. Maintenance work and safety checks must only be carried out by authorised professionals. Immediately stop using defective equipment and make sure that it cannot be used by unauthorised users again.

  • Page 7: Maintenance And Safety Check

    The individual materials must be disposed of in accordance with the environmental and waste disposal regulations of the country of use. If you have any queries as regards disposal, contact the local authorities responsible for waste disposal, your dealer or: Gharieni GmbH Tel.: +49 (0)2841/88300-163 service@gharieni.de...

  • Page 8: Before First Use Transport /Unpacking

    2 . 1 B e f o r e f i r s t u s e - T r a n s p o r t / U n p a c k i n g Before installing the bed, make sure that sufficient space has been planned for the bed so that it does not bump against any other objects when fully unfolded (see appendix on Space Requirements).

  • Page 9: Installation - Connection

    Caution: danger of injury due to heavy load. Weight of the bed: 125 kg (without water cushions). If the floor is not perfectly flat, the stability of the bed may have to be adjusted to the floor surface by adjusting the setscrew. If you have found a suitable location with sufficient space (see appendix 1) for the bed, unscrew the carrying aids and store them in case you ever have to transport the bed again.

  • Page 10: 2 . 3 . 1 S P A C E R E Q U I R E D

    3 . 0 T h e A m p h i b i a b e d The Amphibia bed can be used either with water or foam cushions (point 3.1). The treatment bed has four electric adjusting motors (see General instructions).

  • Page 11: Hand Switch

    Ill. 4 3 . 2 H a n d s w i t c h The hand switch is a low-voltage electric switch (24V) (ill. 5), used to operate the electrically controlled functions. The four motors can be adjusted individually, as described above, by simply pressing a button (pressing and holding it).

  • Page 12: Settings

    4 . 1 H e i g h t The height of the Gharieni Amphibia can be adjusted from approx. 55 cm to approx. 90 cm. The access height is the lowest seat height. It is approx. 55 cm. This height enables the customer to comfortably sit or lie on the bed from the side.

  • Page 13: Armrests

    4 . 4 A r m r e s t s The individual armrests of the Gharieni Amphibia can be lowered manually by means of gas springs, similar to the headrest. Simply press the lever on the relevant side and exert slight pressure to adjust the armrests downwards. Pull the armrest up by hand to raise it (override function).

  • Page 14: Extending Runners

    4 . 7 E x t e n d i n g r u n n e r s The Amphibia bed has a special construction enabling runners to be extended in order to move the bed. Proceed as follows: First move the backrest up (as described) using the hand switch.

  • Page 15: Electric Triple Airback With Heating And Light

    E l e c t r i c T r i p l e A i r b a c k w i t h h e a t i n g a n d l i g h t The lying surface (water cushion) of the Amphibia has two heating mats. The lower heating mat (HML) is located under the water cushion (ill.
  • Page 16 Replace the water every six months, but no later than once a year. Check the water cushions for leaks after filling them with water. Water conditioner (enclosed) must be added to the water. The water cushions have a pocket (over the water cushion), into which the enclosed upper heating mat can be inserted.

  • Page 17: Heating

    We recommend unplugging the mains plug during long intervals between uses (e.g. during the night). Caution - risk of fire: The bed must not be covered by objects such as blankets, towels, clothes etc. while the heating is on, otherwise heat may accumulate and damage the bed. 5 .

  • Page 18: Displaying And Setting The Duration Of Heating

    Step 3: Press the On/Off button. The heating system is off. The display LEDs are extinguished. 5 . 4 S e t t i n g t h e u p p e r h e a t i n g m a t t e m p e r a t u r e Press the "HMU"...

  • Page 19: Electric Airback

    5 . 7 E l e c t r i c A i r b a c k There are three air cushions (Airbacks) under the water elements. Airback-1 and Airback-2 are located in the lumbar area. Airback-3 is located in the thigh zone (ill-16). An electric pump enables the Airbacks to be inflated.

  • Page 20: Options

    6 . 0 O p t i o n s 6 . 1 F o o t s w i t c h The foot switch (see ill. 17) can be connected as an option, in addition to the hand switch. The right-hand foot switch is used to adjust the height; the left- hand foot switch adjusts the backrest.

  • Page 21: Ayurveda Liner

    6 . 3 A y u r v e d a l i n e r The Ayurveda bed has been designed specifically for oil treatments. It has an opening in the head part to drain the oil (ill. 19). The pushbuttons on the side (ill.

  • Page 22: Upholstery - Cleaning / Disinfection

    G u a r a n t e e p r o v i s i o n s Gharieni GmbH supplies all new equipment subject to a 2-year guarantee. Wearing parts (such as e.g. incandescent lamps, UV lamps, consumables etc.) are not covered by this guarantee.

  • Page 23: Drive Failures / Remedies

    Type plate Ill. 20 8 . 0 D r i v e f a i l u r e s / r e m e d i e s Possible failures Remedies 1. None of the - No mains connection - Check the mains motors work available...

  • Page 24: Technical Specifications

    9 . 0 T e c h n i c a l s p e c i f i c a t i o n s Feature Value Total length approx. 202 cm Standard bed surface width (alternative) approx. 85 cm (80 or 90cm) Width of the basis (substructure) approx.
  • Page 25 KONFORMITÄTSERKLÄRUNG EC DECLARATION OF CONFORMITY DECLARATION CE DE CONFORMITE Wir / We / Nous Electro-Medical Gharieni GmbH (Hersteller/Manufacturer/Fabricant) Gutenbergstr. 40 D-47443 Moers Germany erklären, dass das Produkt declare that the product déclarons que le produit (Typ oder Modell, Bezeichnung / Type or model, name / Type ou modèle, nom)

  • Page 26: Ppendix -1

    1 0 . 0 A p p e n d i x - 1 : G H A R I E N I b e d s...
