INSTRUCTION MANUAL
Lounger RLX ELECTRIC
Lounger RLX/RLX LIGHT
Gharieni Group GmbH
Gutenbergstraße 40
D – 47443 Moers
+49 (0)2841/88300-0
service@gharieni.de
Fax:
+49 (0)2841/88300-999
Web: www.gharieni.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lounger RLX ELECTRIC and is the answer not in the manual?

Questions and answers

Related Manuals for GHARiENi Lounger RLX ELECTRIC

Summary of Contents for GHARiENi Lounger RLX ELECTRIC

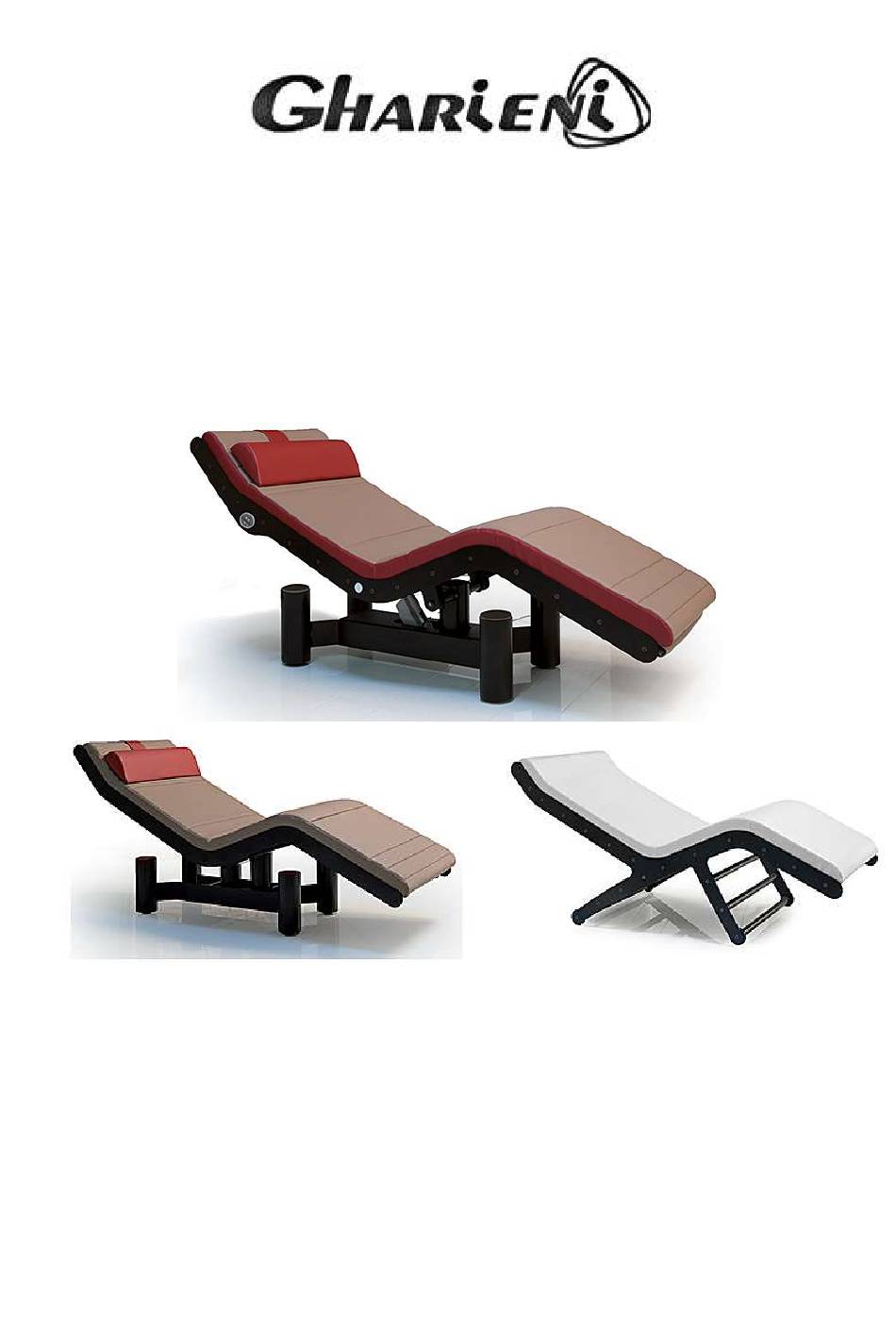

  • Page 1 INSTRUCTION MANUAL Lounger RLX ELECTRIC Lounger RLX/RLX LIGHT Gharieni Group GmbH Gutenbergstraße 40 D – 47443 Moers Phone: +49 (0)2841/88300-0 Fax: +49 (0)2841/88300-999 E-mail: service@gharieni.de Web: www.gharieni.de Service Hotline: +49 (0)2841/88300-40...

  • Page 2: Table Of Contents

    Index 1. Safety information ......................3 1.1 Signal words ......................3 1.2 Safety instructions/RLX and RLX ELECTRIC ..........4 1.3 Safety instructions/RLX LIGHT ................5 1.4 Safety instructions Smart Thermo II ..............6 2. General information...................... 6 2.1 Model variants ......................7 2.2 View/RLX ELECTRIC ..................

  • Page 3: Safety Information

    Copies of this instruction manual are available upon request.  The Gharieni Group GmbH shall not be held responsible for any damages, direct or indirect, caused to people, animals or objects resulting from negligence or non-compliance with the instructions contained herein.

  • Page 4: Safety Instructions/Rlx And Rlx Electric

    RLX. All repairs or maintenance work must be carried out by persons who are authorized by the Gharieni Group GmbH. 7. Do not make the rating plate illegible! Do not remove the rating plate! 8.

  • Page 5: Safety Instructions/Rlx Light

    10. Never sit or stand on any part of the lying surface. Do not exert strong physical forces on these components; otherwise you can damage the supporting structure permanently. RISK OF TIPPING! RISK OF BREAKAGE! RISK OF INJURY! 11. Do not use the base as a foot rest. RISK OF CRUSHING! 12.

  • Page 6: Safety Instructions Smart Thermo Ii

    are supervised or instructed concerning the use of the appliance and do understand the danger resulting thereof. 1.4 Safety instructions Smart Thermo II WARNING! 1. Do not use the option Smart-Thermo when your customer  has got a pacemaker.  is pregnant. ...

  • Page 7: Model Variants

    2.1 Model variants The available electric functions are depending from model. The available variants are: Length Width Electric adjustment of inclination ELECTRIC 190 cm 70 cm Length Width Fixed position 190 cm 70 cm Length Width Fixed position LIGHT 174 cm 66 cm 2.2 View/RLX ELECTRIC Supporting structure...

  • Page 8: Preliminary Remarks

    3. Preliminary remarks 1. The RLX is subject to high standards of safety and quality. 2. Check before initial operation that all parts are complete and not visibly damaged. 3. Ensure that the socket is grounded properly and meets the required voltage. 4.

  • Page 9: Rating Plate

    4. Always consider the dimensions of the RLX. Narrow hallways, doors or staircases can make the transport difficult or impossible. Depending on model, the length of the RLX is up to 190 cm and the total width up to 70 cm. 6.

  • Page 10: Dimensions Of Highest/Lowest Inclination

    3. Button 1 moves the back section (A) downwards and, consequently, the leg section (B) upwards. 4. Button 2 moves the back section (A) upwards and, consequently, the leg section (B) downwards. 7.2.1 Dimensions of highest/lowest inclination...

  • Page 11: Options

    8. Options 8.1 Electric foot switch An additional foot switch to adjust the inclination is optional available (RLX ELECTRIC only). Use the relevant switch to adjust the inclination of the lying surface. 8.2 Heater Smart Thermo II The lying surface of RLX can be heated to maximize the treatment comfort. You can set 10 heating levels using the HCP.

  • Page 12: Manufacturers Setting

    buttons and set the temperature to one of the 10 levels. Switch off the heater using the OFF-button on the HCP. 8.2.3 Manufacturers setting Default operating parameters of the heater when delivered: Total heating time 60 minutes LED 6 Pre-heating period 6 minutes LED 1+2 Power/total operation...

  • Page 13: Audio-Relax Headrest

    Press the ON-button to save your setting, then you enter the Setting of the pre-heating period Each illuminated LED indicates a pre-heating period of 3 minutes. The manufacturer´s setting is 6 minutes. The max. pre-heating period available is 30 minutes. Do not exceed the default values set by the manufacturer. While the heater is still warm, the pre-heating period may be shorter when the heater is switched on again.

  • Page 14: Repair, Maintenance And Cleaning

    We are responsible for safety and reliability of the RLX under the following conditions only: 1. Repairs and modifications must be carried out by Gharieni Group GmbH or a person authorized by Gharieni Group GmbH. 2. The electrical installation of the room the RLX is installed in must meet the current legal regulations at the site where the RLX is operated.

  • Page 15: Trouble Shooting

    The malfunctioning is attributable to the operator.  The instructions in this instruction manual are not observed.  The Gharieni product has suffered changes after repair operations performed  by a third party which has not been authorized by the Gharieni Group GmbH.

  • Page 16: Waste Management

     This product is made of metal and plastic components, electronic components, electric cables. Dispose of the separate components in accordance with the current local disposal regulations. For further information, please contact your municipal disposal authorities, your retailer or  Gharieni GmbH Phone 02841/88300-0 02841/88300-999  service@gharieni.de ...
  • Page 17 Protection against solid and liquid materials IP X4 Smart Thermo II (RLX and RLX ELECTRIC only) Transformer voltage/primary 230V AC/50Hz/120 VA max. Transformer voltage/secondary 12 V DC/8.75 A Protection/primary Ambient conditions for storing and transportation Climate Value Temperature C to +50 C ambient temperature Atmospheric pressure 700 to 1060 hPa...

  • Page 18: Ec-Declaration Of Conformity

    13. EC-Declaration Of Conformity EC DECLARATION OF CONFORMITY Gharieni Group GmbH (Manufacturer) Gutenbergstraße 40; D-47443 Moers; Germany declare that the product RLX/ELECTRIC Spa Table (Type or model; name) is produced in accordance with the requirements specified in Low Voltage Directive (LVD) 2006/95/EG, Electromagnetic Compatibility 2004/108/EG, Safety of Machinery 2006/42/EG.
  • Page 19 THE PROPERTY RIGHTS OF THIS INSTRUCTION MANUAL ARE RESERVED. ITS REPRODUCTION OR TRANSMISSION TO THIRD PARTIES IS FORBIDDEN WITHOUT THE AUTHORISATION OF THE OWNING COMPANY. THE POWER TO PROTECT ITS RIGHTS IS RESERVED AND OFFENDERS SHALL BE PROSECUTED. Gharieni Group GmbH Gutenbergstraße 40 D – 47443 Moers...
