Summary of Contents for GHARiENi MLW F1

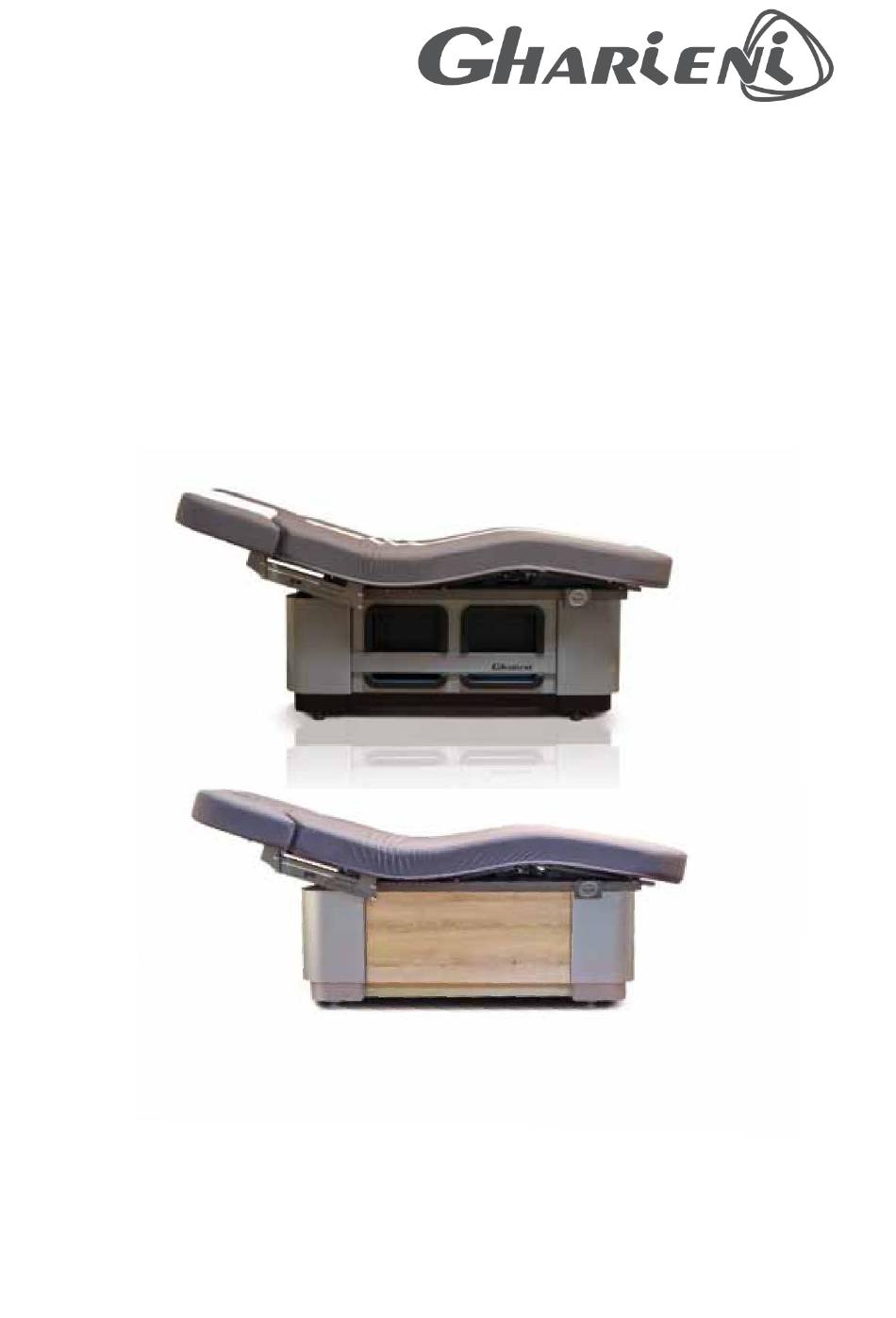

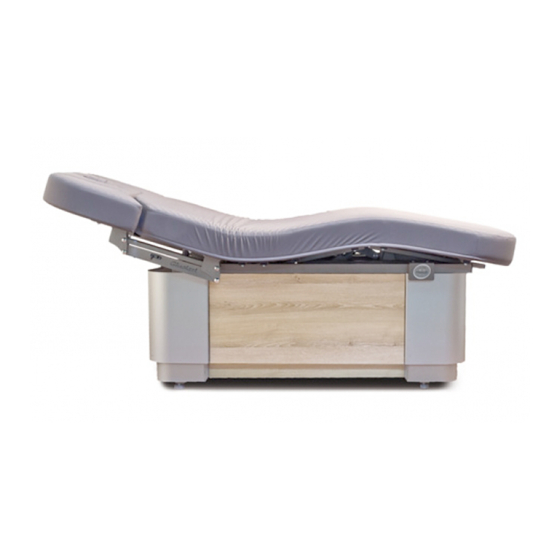

- Page 1 Operating Instructions Gharieni MLW F1 Wellness Treatment Bed Gharieni Group GmbH Service hotline: +49 (0) 2841-88300-40 Gutenbergstraße 40 Email: service@gharieni.de D - 47443 Moers Web: www.gharieni.de Tel.: +49 (0) 2841-88300-0 Fax: +49 (0) 2841-88300-999...
-
Page 2: Table Of Contents
Contents Page 1. Safety symbols …………….………………………………… 2. General instructions …………………………......3 3. Prior remarks ………………………………...………………. 4. Delivery ……………………...……………………….……… 5. Before first use ……………………………………… 6. Type plate...……………………………………………………… 4 7. Initial start-up …………………………………………...……… 8. Operation ………………………………………………………… 5 8.1 Height …………………………………………………….. ……… 5 8.2 Headrest ………………………………………………………….. -
Page 3: Safety Symbols
The Gharieni MLW F1 is available with a hand switch, infrared switch or foot switches. Only one of these options forms a part of the standard scope of delivery. -
Page 4: Delivery
4. Delivery In the event of delivery by a forwarding company, the beds are delivered on special pallets and in boxes. The bed is then fully horizontal and the upholstery is already in place. Carefully open the top of the box. Do not use any sharp objects which might damage the upholstery. -
Page 5: Initial Start-Up
8. Operation 8.1 Height The height of the Gharieni MLW F1 can be adjusted from approx. 59 cm to approx. 92 cm. The access height is approx. 59 cm. This height enables the client to get onto the bed from the side. -
Page 6: Armrests
8.3 Armrests The individual armrests of the Gharieni MLW F1 can be lowered and swivelled manually by means of the gas springs, in a similar fashion to the headrest. Press the lever on the relevant side and exert slight pressure to continuously adjust the armrests. This makes the bed extremely suitable for back massages (see ill. -
Page 7: Leg Rest
The bed's leg rest can be adjusted independently of the backrest and the inclination by using the hand, infrared or foot switches; this adjustment encompasses the entire calf section from the knee downwards. The MLW F1 offers many possible adjustments, making it suitable for many different uses. -
Page 8: Remote Control
Disabling the bed: To disable the bed, press and hold the Lock key for three seconds until you hear two beeps. The bed operation has now been disabled. Enabling the bed: To enable the bed, press the Shift key and then immediately press the Lock key while still holding the Shift key. -
Page 9: Foot Switches
Disabling the bed: To disable the bed, press and hold the Lock key for three seconds until you hear two beeps. The bed operation has now been disabled. Enabling the bed: To enable the bed, press and hold the Shift key, and then immediately press and hold the Lock key. -
Page 10: Smart Thermo Heating
8.10 Smart Thermo heating To increase the user's comfort, the surface of the treatment bed can be heated. The heating control panel (see ill. 15 on page 11) enables the heating power to be set at 10 levels. To quickly warm up the cold surface, the heating power is at maximum capacity for the duration of the pre-heating time after starting. - Page 11 Setting the total heating duration The maximum heating duration can be set in 10 levels of 10 to 100 minutes. The location of the one LED that is lit - from left to right - indicates the level. The initial setting is 60 minutes. For example: level 6 equals a total heating time of 60 minutes (see ill.
-
Page 12: Initialising The Software
9. Options 9.1 Extending runners The Gharieni MLW F1 has a special construction enabling runners to be extended in order to move the bed. Proceed as follows: First extend the inclination motor and then raise the leg rest. Now you can reach the lifting device (see ill.16, 17 and 18) by pulling the lever in the substructure towards you or positioning it... -
Page 13: Vibro Wellness 6
9.2 Vibro Wellness 6 The six integrated motors (see ill. 19) act on the shoulders, back, buttocks and thigh area. The motors for the individual parts of the body can be controlled in pairs, as described below, by operating the hand switch (see ill. 20). bottom Ill. - Page 14 (M2) Setting the intensity for massage range M2: Massage range 2 is set in the same way as massage range 1. The operating status of the massage motor is indicated by LED 2. (M3) Setting the intensity for massage range M3: Massage range 3 is set in the same way as massage range 1.
-
Page 15: Vibro Wellness 10
9.3 Vibro Wellness 10 The 10 integrated motors are located in different zones (see ill.21). The motors for the individual parts of the body can be controlled in pairs, as described below, by operating the hand switch (see ill. 22). Positions of the Vibro motors Ill. - Page 16 End of massage The massage is ended automatically by a timer after 15 minutes. To end the massage before the program has finished, press the on/off key (1). Individual setting Start the massage by pressing the Individual key (2). When the massage unit is used for the first time, the factory setting (intensity level 2; medium intensity) is selected.
-
Page 17: Heated Electric Triple Airback
9.4 Heated electric triple airback 9.4.1 Smart Thermo heating To increase the user's comfort, the surface of the treatment bed can be heated. The heating control panel (see ill. 23) enables the heating power to be set at 10 levels. To quickly warm up the cold surface, the heating power is at maximum capacity for the duration of the pre-heating time after starting. -
Page 18: Initial Settings
9.4.4 Initial settings The bed is delivered with the following initial settings: Total heating duration: 60 minutes (LED number 6) Pre-heating time: 6 minutes (LEDs 1+2) Continuous power: 30% (LEDs 1+2+3) 9.4.5 Programming The values for the total operating time, the pre-heating time and the heating power can be programmed. -
Page 19: Electric Airback
Clean the housing and the fittings with a damp cloth or sponge and some soap. Covering the upholstery: The standard upholstery of the Gharieni MLW F1 is PU (polyurethane). To avoid damaging this material, special protective covers should be used. We recommend our five-part terry-cloth cover for ordinary cosmetic treatments. -
Page 20: Guarantee
12. Guarantee Gharieni Group GmbH supplies all beds subject to a 3-year guarantee. Wearing parts (such as incandescent lamps, UV lamps, consumables etc.) are not covered by this guarantee. Damage or loss due to unprofessional or improper use, non-compliance with the provisions of the instructions for use and/or gross negligence is not covered by guarantee either. -
Page 21: Troubleshooting
14. Troubleshooting We only accept responsibility for the safety and reliability of this device if repairs and changes have been made by us or by a person authorised by us. Furthermore, the electrical system in the room must comply with the provisions of VDE 0100 or 0107 and the device must only be used in accordance with these operating instructions. -
Page 22: Technical Specifications
15 Technical specifications Details: Overall dimensions (length x width x height): 220 x 85 x 92 cm Surface (length x width): 205 x 85 cm Base (length x width): 140 x 55 cm Height adjustment range: 59 - 92 cm Trendelenburg / Anti-Trendelenburg positions: No Headrest inclination: ±... -
Page 23: Declaration Of Conformity
16. Declaration of Conformity EC Declaration of Conformity EC DECLARATION OF CONFORMITY DECLARATION CE DE CONFORMITE Wir / We / Nous Gharieni Group GmbH (Hersteller/Manufacturer/Fabricant) Gutenbergstr. 40 47443 Moers Germany erklären, dass das Produkt declare that the product déclarons que le produit (Typ oder Modell, Bezeichnung / Type or model, name / Type ou modèle, nom) -
Page 24: Issue Status
17 Issue status Issue Change (pages) Date First issue 28.01.2013 REV-1 Page 6, Armrests 03.04.2014 Safety note...
