Summary of Contents for Kramer RTBUS-21 xl
- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: RTBUS-21xl Round Table Connection Bus P/N: 2900-300439 Rev 2...
-
Page 3: Table Of Contents
Contents Introduction Getting Started Achieving the Best Performance Safety Instructions Recycling Kramer Products Overview Defining the RTBUS-21xl Power Socket Options The RTBUS-21xl Connecting Surface Installing the RTBUS-21xl Drilling a Hole in the Table Installing the Power Socket Mounting the RTBUS-21xl in the Table... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Thank you for purchasing the Kramer RTBUS-21xl Round Table Connection Bus, which is ideal for using in boardrooms, conference and training rooms! RTBUS-21xl - Introduction... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
(the Europlug), Belgium-France, Switzerland, Italy, Australia, Brazil, Israel, South Africa or “Universal” for use anywhere (see compatibility restrictions in Section 4.1) Order the power sockets separately from Kramer Electronics We offer the RTBUS-21xl in either a black anodized or a brushed clear aluminum surface. RTBUS-21xl - Overview... -
Page 8: Defining The Rtbus-21Xl
Defining the RTBUS-21xl Figure 1: RTBUS-21xl Top View RTBUS-21xl - Defining the RTBUS-21xl... - Page 9 Feature Function Black anodized or brushed Covers the connecting surface, leaving the table surface aluminum semi-automatic lid neat and tidy Outer Rim Fits over the table surface Pneumatic Mechanism Enables automatic lifting and smooth closing of the lid Connecting Surface Figure 2 IEC socket Connect to an IEC power cord (can be purchased...
-
Page 10: Power Socket Options
Power Socket Options A choice of power sockets is available for purchase in several versions, including power sockets for the USA, Brazil, Germany (the Europlug), UK, Switzerland, Belgium-France, Italy, South Africa, Israel and Australia. A “Universal” socket for general use is also available (see the compatibility restrictions in the table below). Note that the photos below are for illustration purposes only. -

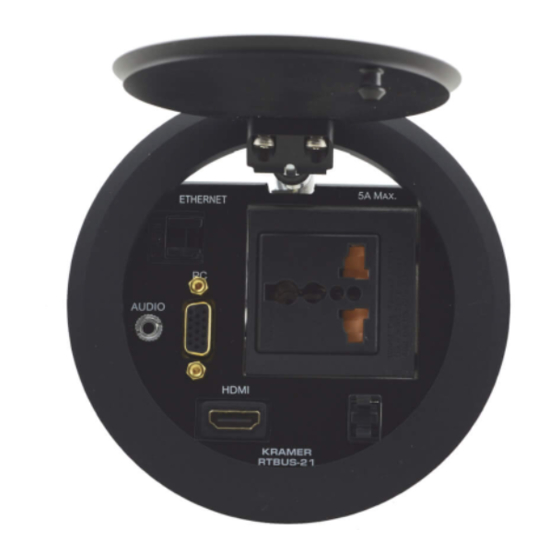

Page 11: The Rtbus-21Xl Connecting Surface
The RTBUS-21xl Connecting Surface defines the connecting surface (note that although ‘RTBUS-21’ is printed Figure 2 on the panel, the name of the modular product is RTBUS-21xl). Figure 2: RTBUS-21xl Connecting Surface Feature Function ETHERNET RJ-45 Connector Connect to a network AUDIO 3.5mm Mini Jack Connects to an unbalanced stereo audio source PC 15-pin HD Connector... -
Page 12: Installing The Rtbus-21Xl
The thickness of the table should be 3in (76mm) or less. 2. Clean the table surface. Take care not to damage the table. Kramer Electronics is not responsible for any damage caused to the table. RTBUS-21xl - Installing the RTBUS-21xl... -
Page 13: Installing The Power Socket
Installing the Power Socket Figure 3 shows an example of the Universal power socket housing which is one of the optional power sockets for the RTBUS-21xl, see Section 4.1. Figure 3: RTBUS-21xl Universal Power Socket Housing To install the power socket: 1. -
Page 14: Mounting The Rtbus-21Xl In The Table
Mounting the RTBUS-21xl in the Table To mount the unit, follow these steps: Step 1: Insert the RTBUS-21xl into the hole cut into the table making sure the outer rim is firm against the surface of the table. Step 2: From underneath the table, slide the mounting brackets into the appropriate slots. -
Page 15: Connecting The Cables And Wires
You can extend these cables if required. Note that the connecting surface is an integral part of the RTBUS-21xl enclosure and cannot be detached. We recommend that you use the Kramer C-AC Power Cord series to power the unit. -
Page 16: Using The Rtbus-21Xl
Using the RTBUS-21xl Once the RTBUS-21xl is installed, you can easily customize it to your own needs by directly plugging in the required AV equipment, as illustrated in the example in Figure Figure 5: RTBUS-21xl Boardroom Installation RTBUS-21xl - Using the RTBUS-21xl... -
Page 17: Technical Specifications
Technical Specifications PORTS: 1 HDMI connector, 1 15-pin HD connector, 1 3.5mm mini jack, 1 RJ-45 connector OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F) STORAGE TEMPERATURE: -40° to +70°C (-49° to 158°F) HUMIDITY: 10% to 90%, RHL non-condensing POWER SOURCE Power Socket Assemblies (AC power limits): Universal... - Page 19 This page is intentionally left blank...
- Page 20 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
