Step 1: Check What's in the Box
T-REC5 Cable Retractor HDMI
or USBC F/F (dependent on
ordered product)
Retractor positioning templates
Step 2: Position Retractor Template under the Table
1. Position the T-IN-REC / T-IN-RND enclosure in place -
DO NOT tighten the enclosure screws yet.
2. Place the Retractor template under the table - Position
direction according to the M-LOCK location.
3. Tighten the enclosure screws.

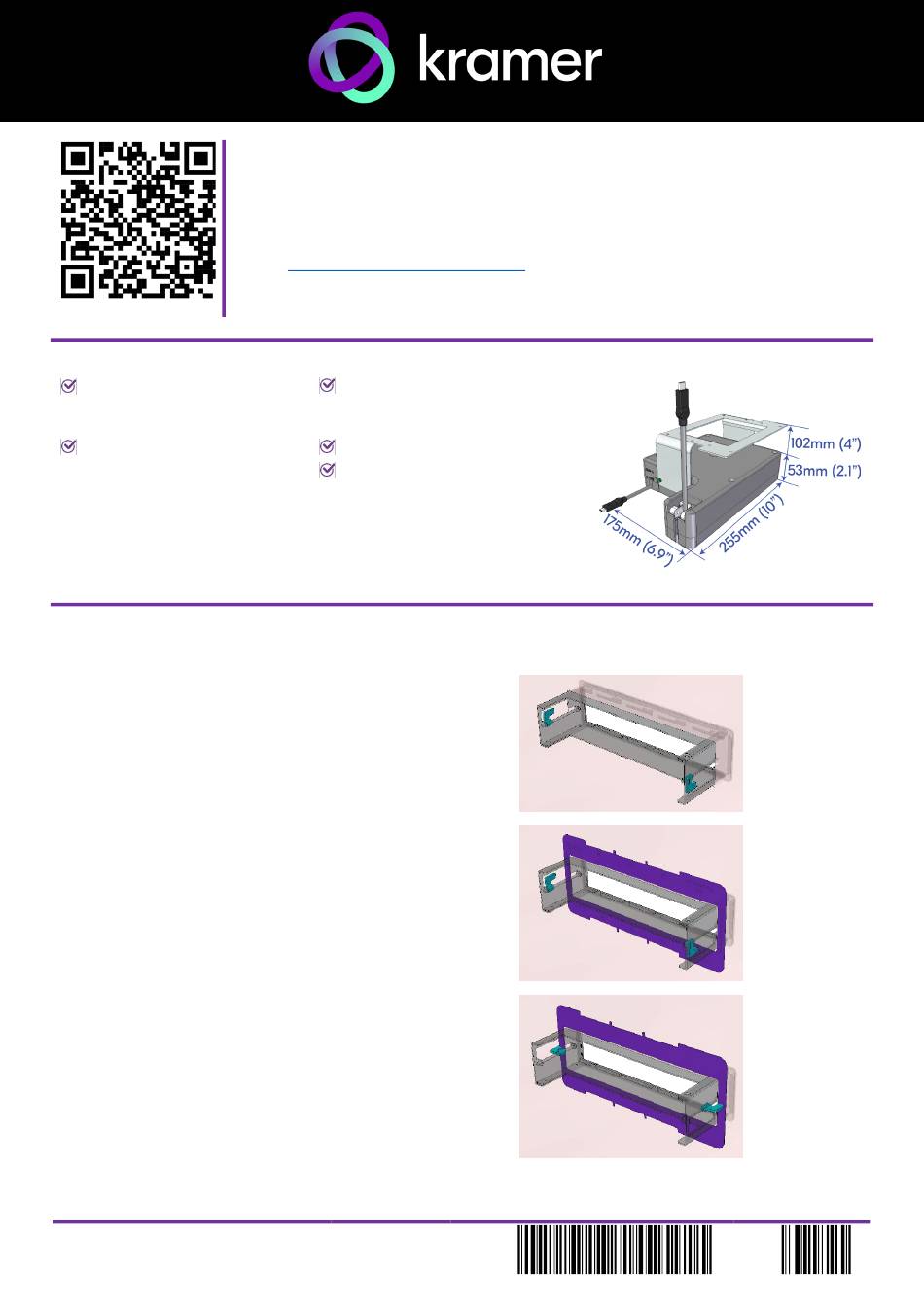

T-REC5-U32/FF, T-REC5-HDMI Quick
Start
T-REC5-U32/FF, T-REC5-HDMI
Quick Start Guide
This guide helps you install and use your T-REC5-U32/FF, T-REC5-HDMI for the first time.
Go to
www.kramerav.com/downloads/T-REC5,
firmware upgrades are available.
Metal bracket
for horizontal placements
2 knobs
4 M5x10mm screws
to download the latest user manual and check if
2900- 301781QS
P/N:
6
Rev:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kramer T-REC5-U32/FF
Summary of Contents for Kramer T-REC5-U32/FF
- Page 1 T-REC5-U32/FF, T-REC5-HDMI Quick Start Guide This guide helps you install and use your T-REC5-U32/FF, T-REC5-HDMI for the first time. Go to www.kramerav.com/downloads/T-REC5, to download the latest user manual and check if firmware upgrades are available. Scan to see website Step 1: Check What’s in the Box...
- Page 2 Step 3: Routing the Retractor Cable T-IN-REC Series: Refer to Step 3.1 T-IN-RND Series: Refer to Step 3.2 Step 3.1 Retractor Cable Pass-through for T-IN-REC Series Pull out about 1 meter / 3 ft cable from the retractor located under the table. Remove the MCP-1 from the TBUS frame, separate its two parts, and route the cable through.
- Page 3 Step 5: Connect Retractor to bracket 1. Slide the pins, located on the side of the retractor, closest to the TBUS, through the bracket holes. 2. Attach 2 side of the retractor and fasten using the 2 red knobs. REC5 can be positioned in 2 ways - Side-A up or side-B up. Refer to Step 6: Multiple Retractors Side A Up Side B Up...
- Page 4 Step 5.1 Place T-REC5 in its Vertical Position For vertical positioning, make sure to order the vertical bracket, required for (vertical) installation. Position the T-IN-REC / T-IN-RND enclosure in place. 2. Perform Steps 2-3 in Step 2: Positioning Retractor Template under the Table. 3.
-
Page 5: Step 7: Product Specifications
Product Max. number of Max. number of Horizontal Vertical retractors retractors allowed allowed (recommended) T-IN2-REC1 T-IN4-REC1 T-IN6-REC1 T-IN2-REC2 T-IN4-REC2 T-IN6-REC2 T-IN1-RND1 T-IN2-RND1 T-IN1-RND2 T-IN2-RND2 Step 7: Product Specifications Model Description Size & Weight Specs T-REC- Table Retractor type 5 Product 255 x 175 x 50mm HDMI A male to HDMI A male, 48 000368...
