Kramer WSP-1 User Manual

Passive Wall Plate Connection Module: WSP-1

Congratulations on purchasing your Kramer passive wall plate connection module, which is
ideal for the following applications:
Board, conference and training rooms
Presentation systems
Home theater
You can attach up to 3 (using the US version) or 4 (using the European version) of any of the
wall plate connection module devices from the passive WP Series to work with the WP Frame.
The WSP-1 is intended for the connection of loud speakers.
The WSP-1 is a passive wall plate connection module with a 4-pin (L+ L– R– R+)
connector on the front panel with clips to hold the wires securely in place, and a 4-pin
(L+ L– R– R+) connector on the rear panel with screws to fasten the wires in place:

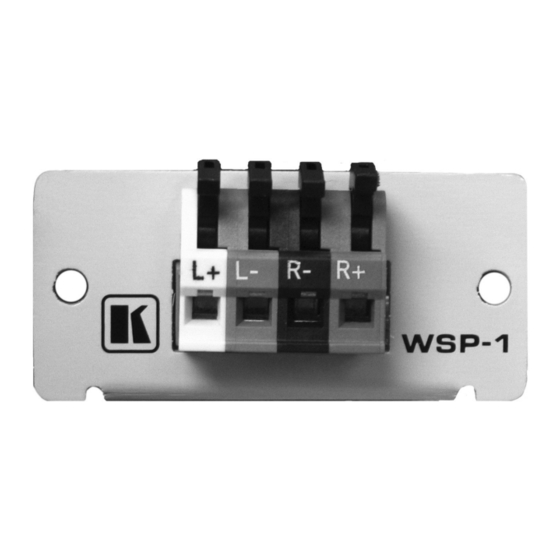

The WSP-1 Front View:
The WSP-1 Rear View:
