- Page 1 Kramer Electronics, Ltd. USER MANUAL Wall Plate Models: SV-301 SV-302 SV-303 SV-304 SV-305...
-
Page 2: Table Of Contents
Wiring the CAT 5 LINE IN / LINE OUT Terminal Block Connectors Summary of Recommended Cables Tables Table 1: Defining the SV-301 and SV-302 (for the U.S.) Table 2: Defining the SV-303, SV-304 and SV-305 (for the U.S.) Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.) Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame... -
Page 3: Introduction
Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download the user manual at: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Overview
Overview This user manual describes the: SV-301 and SV-302—provided as the default wall plate devices with the SummitView™ Standard Kit and the SummitView™ Essentials Kit and described in that user manual, as well as in sections 4.1 (the U.S. version) and 5.1 (the European version) -
Page 5: Defining The Wall Plates (For The United States)

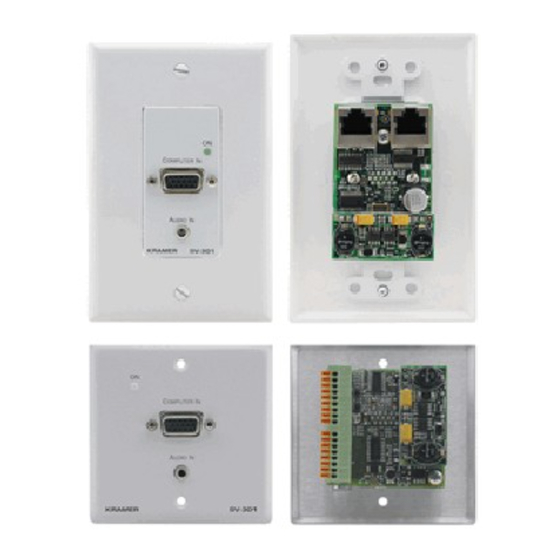

Section 4.1 defines the SV-301 and SV-302, and section 4.2 defines the SV-303, SV-304 and SV-305. 4.1 SV-301 and SV-302 (for the United States) Table 1 defines the front and rear views of the SV-301 and SV-302: Table 1: Defining the SV-301 and SV-302 (for the U.S.) SV-301:... -
Page 6: 303, Sv-304, And Sv-305 (For The United States)
Connector audio Connector source Mini Plug an IR Emitter source IR OUT Connect to a IR OUT Connect to 3.5mm machine via an 3.5mm Mini a machine Mini Plug IR Emitter Plug via an IR Emitter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Table 3: Defining The Sv-303, Sv-304, Sv-305 Rear (For The U.s.)
Defining the Wall Plates (for the United States) Table 3: Defining the SV-303, SV-304, SV-305 Rear (for the U.S.) SV-303: SV-304 and SV-305: 1 RJ-45 CAT5 Connector 2 RJ-45 CAT5 Connectors Table 4 defines the SV-305, as an example, in its plastic frame: Table 4: Enclosing a Wall Plate (for the U.S.) in its Plastic Frame 1 Each model that is designed specifically for the US market fits inside a plastic frame... -
Page 8: Defining The Wall Plates (For Europe)
SV-303, SV-304 and SV-305. 5.1 SV-301 and SV-302 (for Europe) The SV-301 and SV-302 are 1 Gang wall plate inserts. The SV-301 has two terminal block connectors at the rear and the SV-302 has one. Table 5: Defining the SV-301 (for England and Europe) -
Page 9: 303, Sv-304, And Sv-305 (For Europe)
Defining the Wall Plates (for Europe) 5.2 SV-303, SV-304, and SV-305 (for Europe) The SV-303 is a 1 Gang wall plate insert with one RJ-45 CAT5 connector at the rear. The SV-304 and SV-305 are 2 Gang wall plate inserts with two RJ-45 CAT 5 connectors at the rear (available in a single version for Europe). -
Page 10: Table 9: Defining The Sv-305 (For Europe)
L AUDIO IN RCA Connector Connect to the left analog audio source R AUDIO IN RCA Connector Connect to the right analog audio source IR OUT 3.5mm Mini Plug Connect to a machine via an IR Emitter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Wiring The Rear Panel Connectors
Wiring the Rear Panel Connectors Wiring the Rear Panel Connectors STP cabling of 50' (15.24m) in length is provided with the Kramer A/V SummitView™ Standard Kit and the SummitView™ Essentials Kit . When required, longer STP cabling can be used when purchased for stand alone wall plates but we recommend a maximum transmission range of up to 100' (30.48m). -
Page 12: 6.2 Wiring The Cat 5 Line In / Line Out Terminal Block Connectors
CAT 5 cable. Table 11 defines the PINOUT of the terminal block connectors: Table 11: Terminal Block Connector PINOUT (for Europe) SV-301, SV-304, SV-305 Rear Panel PINOUT SV-302, SV-303 Rear Panel PINOUT Orange / White Orange / White... -
Page 13: Summary Of Recommended Cables
Summary of Recommended Cables Summary of Recommended Cables Table 12 defines the cables that should be purchased for use with the SV-301 / SV-302 / SV-303/ SV-304 / SV-305: Table 12: Cables for use with the SV-301/SV-302/SV-303/SV-304/SV-305 Item Description SV-301 Cable set CP-STP-50 / C-STP-50 (2 cables STP cable 50' (15.24m) - Page 14 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
