Mount QuickFix bracket on a machine or profile frame
Table 3: Lateral and rear mounting with the QuickFix bracket
Mounting type Description
On the side Fasten the M5 screw to the machine or profile frame through the QuickFix
bracket. A screw nut or threaded hole is required on the machine or profile
frame (!).
Fasten the M5 screw to the QuickFix bracket through the machine or profile
frame. A screw nut is required for each QuickFix bracket (").
Fasten the M5 screw to the profile frame through the QuickFix bracket. A
sliding nut is required on the profile frame (§).
On the back Fasten the M5 screw to the machine or profile frame through the QuickFix
bracket. A screw nut or threaded hole is required on the machine or profile
frame ($).
!
"
§

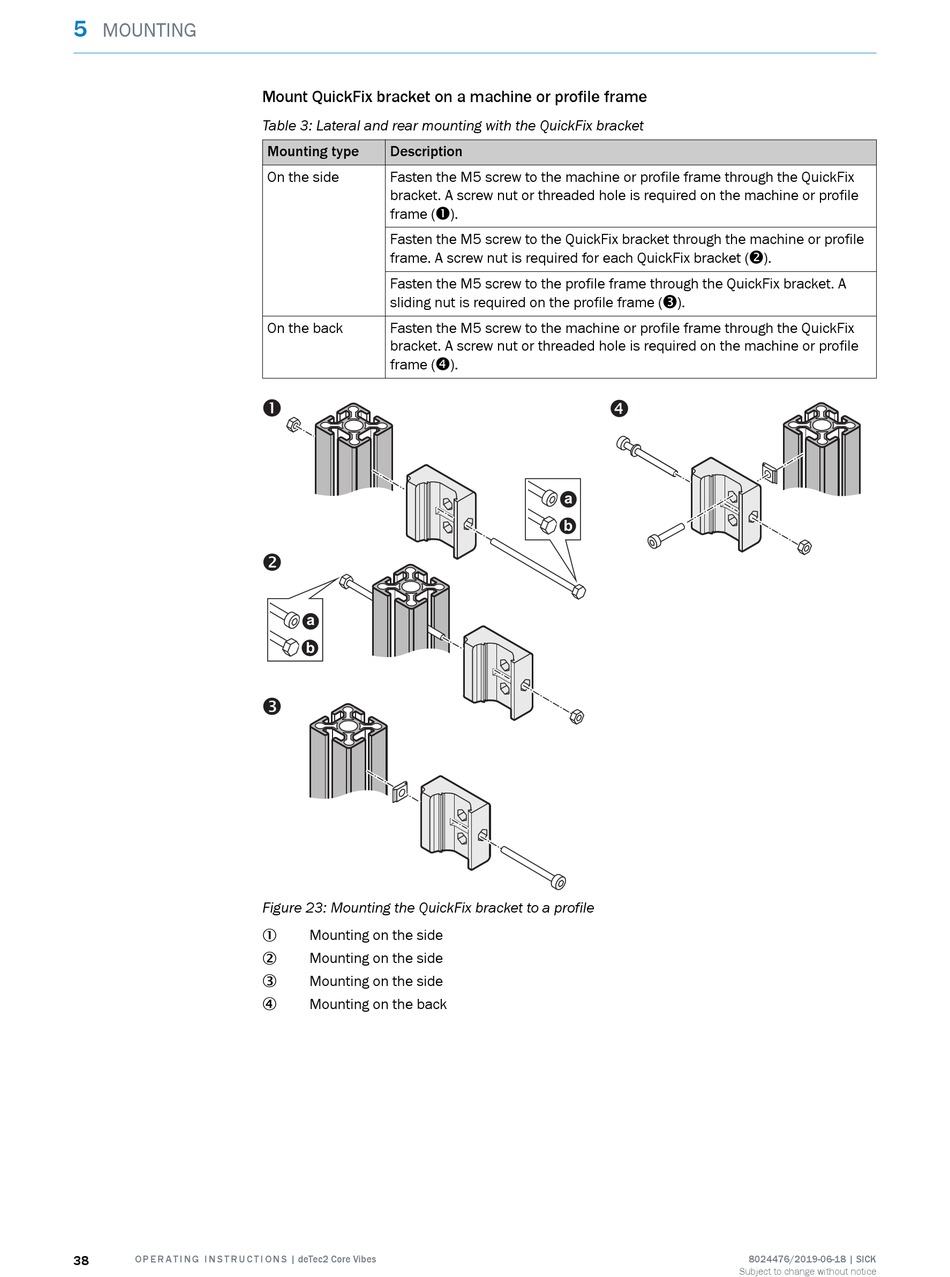

Figure 23: Mounting the QuickFix bracket to a profile
Mounting on the side
1
Mounting on the side
2
Mounting on the side
3
Mounting on the back
4
$
