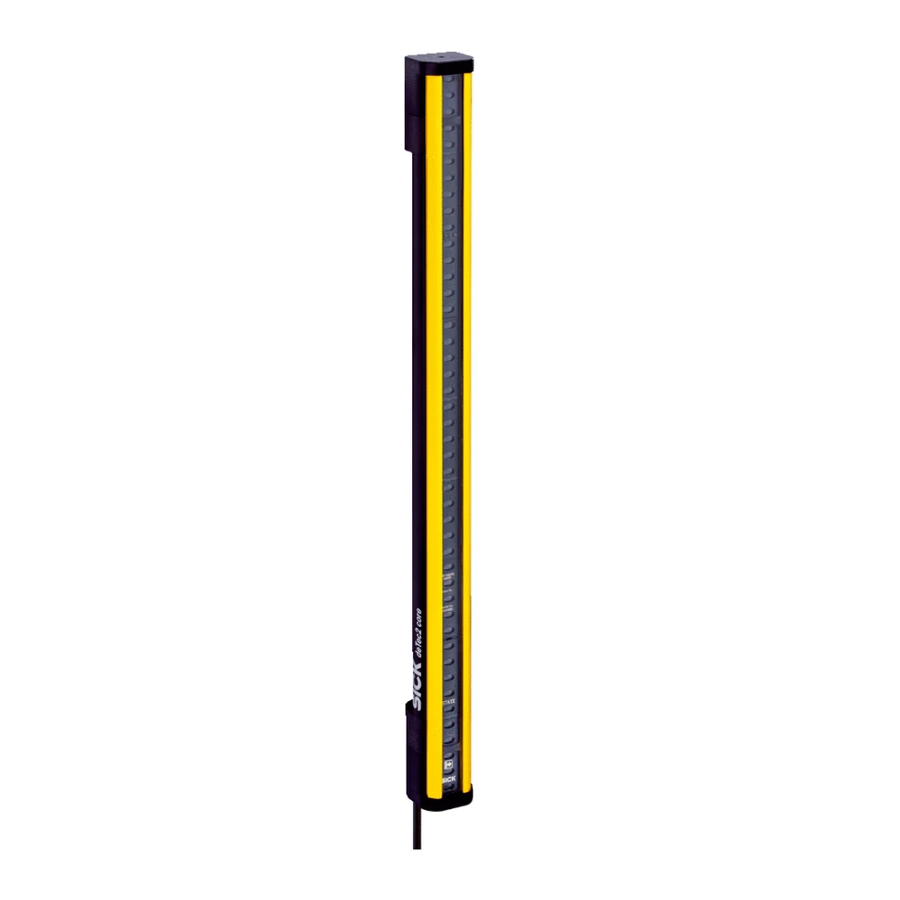

  • Page 1 O P E R A T I N G I N S T R U C T I O N S deTec2 Core Safety light curtain...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    5.3.3 Mounting the upgrade bracket..........Electrical installation................ 38 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 4 13.2 Ordering information deTec2 Core............Accessories..................60 14.1 Brackets....................14.2 Mounting accessories................O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...
  • Page 5 List of figures..................72 List of tables..................73 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 6: About This Document

    In other applications, the operating organization is also the manufacturer of the equip‐ ment with the corresponding allocation of the target groups. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 7: Additional Information

    These symbols indicate the sender and receiver of the device: The symbol indicates the sender. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 8 ABOUT THIS DOCUMENT The symbol indicates the receiver. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 9: Safety Information

    At altitudes over 3,000 m above sea level • In environments with enhanced ionizing radiation 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 10: Requirements For The Qualification Of Personnel

    More information for the operator of the machine: see "Regular cleaning", page see "Operation", page O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 11: Product Description

    8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 12: Product Characteristics

    The sender and receiver LEDs indicate the operational status of the safety light cur‐ tains. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 13: Sender Indicators

    Resolution 14 mm Resolution 30 mm Figure 3: Receiver indicators 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 14: Example Applications

    "Fault indicators", page Example applications Figure 4: Hazardous point protection O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 15: Access Protection

    Figure 5: Access protection Figure 6: Hazardous area protection 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 16: Project Planning

    Information about the individual steps for mounting the device: see "Mounting", page O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 17: Scanning Range And Protective Field Width

    When mounting the safety light curtain, observe the minimum distance. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 18: Protective Field

    Minimum distance S Protective field height Hazardous point O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 19: Representation Of The Accessibility Of Electro-Sensitive Protective Device By Reach- Ing Over. Left: Protective Field That Cannot Be Reached Over. Right: Protective Field That Can Be Reached Over

    Left: Protective field that cannot be reached over. Right: Protective field that can be reached over. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 20: Minimum Distance To Reflective Surfaces

    12 D [m] Figure 10: Graph, minimum distance from reflective surfaces O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 21: Protection Against Interference From Systems In Close Proximity To Each Other

    The safety light curtain and the following products do not influence one another: • microScan3 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 22: Integrating Into The Electrical Control

    The machine must switch to the safe state at any time if at least one of the two OSSDs switches to the OFF state. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 23: No Potential Difference Between Load And Protective Device

    8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 24: Restart Interlock

    Because the safety light curtain does not have integrated external device monitoring, this must be implemented in the external control, if required. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 25: Connection Diagrams

    The following checks are often defined in connection with a protective device: 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 26: Test Rod Check

    Do not use any test rods with a similar or the same diameter of other safety light curtains. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 27: Test Rod Check: Step 1

    The OSSD LED must not illuminate green. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 28: Visual Check Of The Machine And The Protective Device

    O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 29: Mounting

    Further topics • "Scope of delivery", page 59 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 30: Installation

    The end with the cable connection must point in the same direction for the sender and receiver. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 31: Mounting The Quickfix Bracket

    The two mounting surfaces for the brackets of the sender or receiver must be parallel and lie in the same plane. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 32: Mounting The Flexfix Bracket

    In the FlexFix bracket, the sender and receiver can be rotated ± 15° around their longi‐ tudinal axis. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 33: Mount Flexfix Brackets To A Profile Frame

    Figure 21: Mount FlexFix brackets to a profile frame Mounting on the side 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 34: Inserting The Safety Light Curtain In The Flexfix Brackets

    Tighten the screws. Figure 22: Inserting the safety light curtain in the FlexFix brackets O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 35: Mounting The Flexfix Bracket To A Device Column (Accessory)

    "Alignment of the sender and receiver", page 41 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 36: Mounting The Upgrade Bracket

    2019659 Figure 24: Upgrade bracket, installation version A O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 37: Upgrade Bracket, Installation Version B

    2071021 Figure 26: Upgrade bracket, installation version C 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 38: Electrical Installation

    Prevent the formation of a potential difference between the load and the protec‐ tive device. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 39: System Connection (M12, 5-Pin)

    C2000 safety light curtain with a deTec2 Core, without having to route new cables. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 40: Commissioning

    "Mounting", page 29 • "Electrical installation", page 38 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 41: Switching On

    LEDs as possible light up on the receiver. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 42: Alignment With The Quickfix Bracket

    • Adjust vertically (H) O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 43: Alignment With The Flexfix Bracket Or With The Upgrade Bracket

    • Adjust vertically (H) • Rotate (± 15°) 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 44: Indication Of The Alignment Quality

    Alignment is not yet sufficient for stable availability. Green diodes light up O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 45: Check During Commissioning And Modifications

    Carry out the checks according to the instructions from the manufacturer of the machine and from the operating entity. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 46: Operation

    Carry out the checks according to the instructions from the manufacturer of the machine and from the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 47: Maintenance

    Make sure that no dispersive media (e.g., dust, fog, or smoke) are within the calcu‐ lated minimum distance from the protective field. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 48: Regular Thorough Check

    Carry out the checks according to the instructions from the manufacturer of the machine and from the operating entity. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 49: Troubleshooting

    In the event of a fault, the type of fault is indicated by the LED display on the sender or receiver. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 50: Fault Indicator On The Sender

    If the fault persists, replace the defective components, see "Ordering information", page O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...
  • Page 51 "Ordering information", page 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 52: Decommissioning

    We will be glad to help you dispose of these devices on request. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 53: Technical Data

    For more detailed information on the exact configuration of your machine, please consult your respective SICK subsidiary. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 54: Technical Specifications, Sender

    The supply cable must not be used to connect other loads with the exception of the sender. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core...

  • Page 55: Response Time

    1050 1200 1350 1500 1650 1800 1950 2100 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 56: Power Consumption

    Control cabinet with safety relay or safety controller T-connector O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 57: Table Of Weights

    1790 1800 2100 1920 1930 Tolerance: ± 50g 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 58: Dimensional Drawings

    IEC 61496-1 is recognized over the entire length of the housing. The limits of the protective field are identical to ends of the housing. O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 59: Ordering Information

    C2C-SA19530A10000 1213223 C2C-EA19530A10000 2100 1213201 C2C-SA21030A10000 1213164 C2C-EA21030A10000 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 60: Accessories

    Figure 33: Dimensional drawing of the QuickFix bracket (2066048) Width of the housing up to the depression O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 61: Dimensional Drawing Of The Flexfix Bracket (2066614)

    Figure 34: Dimensional drawing of the FlexFix bracket (2066614) 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 62: Mounting Accessories

    Table 19: Mounting accessories ordering information Part Part number Alignment tool 4084133 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 63: Weld Spark Guard

    Ambient operating temperature: Down to -30 °C with fixed installation. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 64: Alignment Aid

    4070854 Ambient operating temperature: Down to –30 °C with fixed installation O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 65: Deflector Mirrors

    The information relates to 90° beam deflection per mirror and a protective field height of 900 mm. 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 66: Deflector Mirror Pns75 - Ordering Information

    PNS125-034 1019425 PNS125-049 1019426 PNS125-064 1019427 PNS125-079 1019428 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 67: Mirror Columns And Device Columns

    Part number Anti-static plastic cleaner 5600006 Lens cloth 4003353 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 68: Test Rods

    Test rod 30 mm 2022602 Test rod holder 2052249 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...

  • Page 69: Annex

    (part number: see the type label entry in the “Ident. no.” field). 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 70: Checklist For Initial Commissioning And Commissioning

    O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 71: Note On Specified Standards

    ISO 13849-1 GB/T 16855.1 ISO 13855 GB/T 19876 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...

  • Page 72: List Of Figures

    37. Example of use of deflector mirrors................65 38. Maximum distance when using deflector mirrors............ 66 O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK...

  • Page 73: List Of Tables

    33. Ordering information, test rods..................68 34. Note on specified standards..................71 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 74 LIST OF TABLES O P E R A T I N G I N S T R U C T I O N S | deTec2 Core 8014276/ZOH1/2017-08-03 | SICK Subject to change without notice...
  • Page 75 LIST OF TABLES 8014276/ZOH1/2017-08-03 | SICK O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Subject to change without notice...
  • Page 76 Phone +36 1 371 2680 Phone +386 591 788 49 E-Mail office@sick.hu E-Mail office@sick.si India South Africa Phone +91 22 6119 8900 Phone +27 11 472 3733 Further locations at www.sick.com E-Mail info@sick-india.com E-Mail info@sickautomation.co.za SICK AG | Waldkirch | Germany | www.sick.com...
