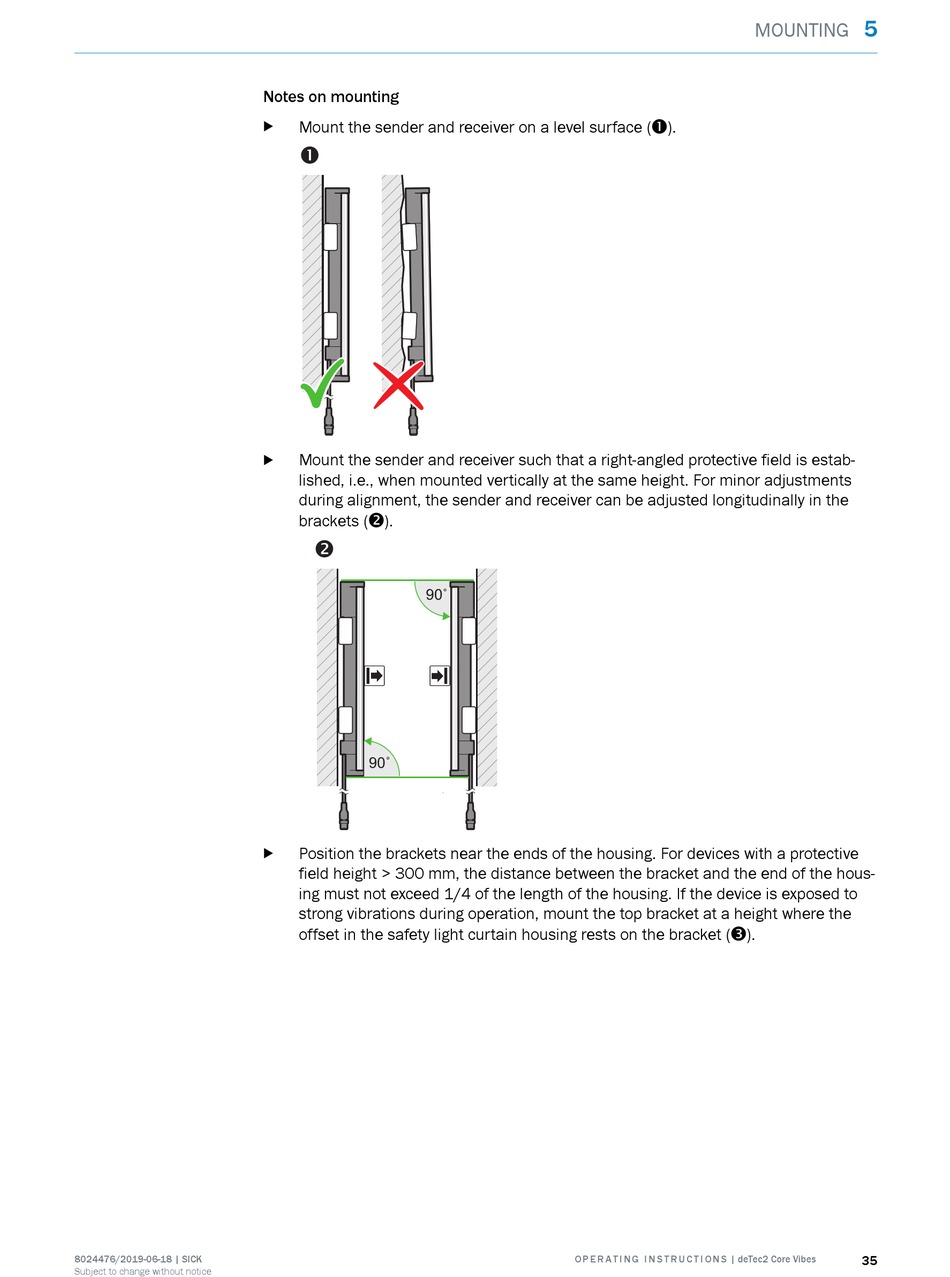

Notes on mounting
Mount the sender and receiver on a level surface (!).
b
!
Mount the sender and receiver such that a right-angled protective field is estab‐
b
lished, i.e., when mounted vertically at the same height. For minor adjustments
during alignment, the sender and receiver can be adjusted longitudinally in the
brackets (").
"
90˚
s r
90˚
Position the brackets near the ends of the housing. For devices with a protective
b
field height > 300 mm, the distance between the bracket and the end of the hous‐
ing must not exceed 1/4 of the length of the housing. If the device is exposed to
strong vibrations during operation, mount the top bracket at a height where the
offset in the safety light curtain housing rests on the bracket (§).
