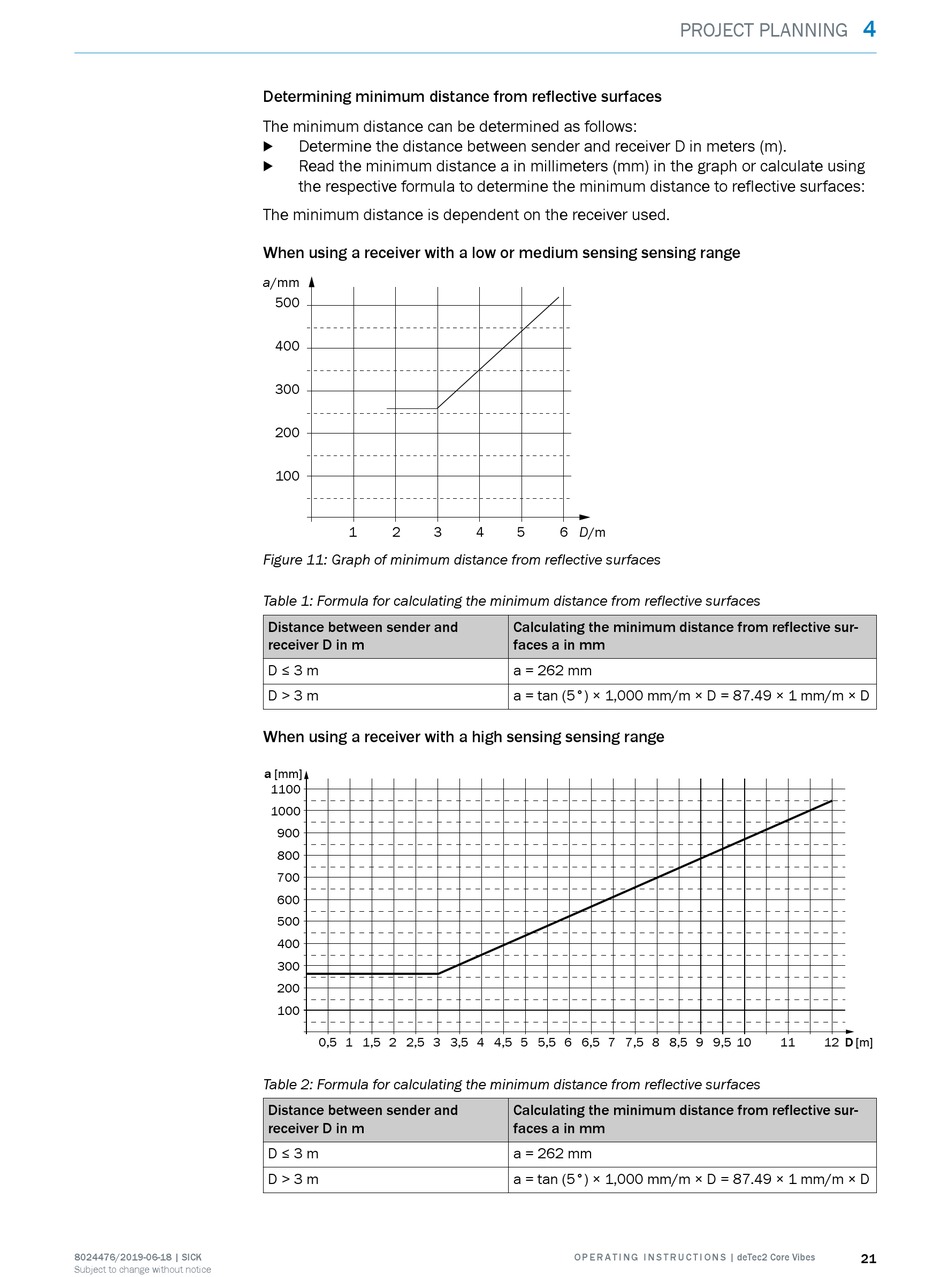

Determining minimum distance from reflective surfaces
The minimum distance can be determined as follows:
Determine the distance between sender and receiver D in meters (m).
b
Read the minimum distance a in millimeters (mm) in the graph or calculate using
b
the respective formula to determine the minimum distance to reflective surfaces:
The minimum distance is dependent on the receiver used.
When using a receiver with a low or medium sensing sensing range
a/mm
500
400
300
200
100
1 2 3
Figure 11: Graph of minimum distance from reflective surfaces
Table 1: Formula for calculating the minimum distance from reflective surfaces
Distance between sender and
receiver D in m
D ≤ 3 m
D > 3 m
When using a receiver with a high sensing sensing range
a [mm]
1100
1000
900
800
700
600
500
400
300
200
100
0,5 1 1,5 2 2,5 3 3,5 4 4,5 5 5,5 6 6,5 7 7,5 8 8,5 9 9,5 10
Table 2: Formula for calculating the minimum distance from reflective surfaces
Distance between sender and
receiver D in m
D ≤ 3 m
D > 3 m
4 5 6 D/m
Calculating the minimum distance from reflective sur‐
faces a in mm
a = 262 mm
a = tan (5°) × 1,000 mm/m × D = 87.49 × 1 mm/m × D
Calculating the minimum distance from reflective sur‐
faces a in mm
a = 262 mm
a = tan (5°) × 1,000 mm/m × D = 87.49 × 1 mm/m × D
