4.3.4.2 Maintaining sufficient distance
4.3.4.3 Combining sufficient distance and reversed direction of transmission
8024476/2019-06-18 | SICK
Subject to change without notice
!
s s s s s s s s s s s s s s s

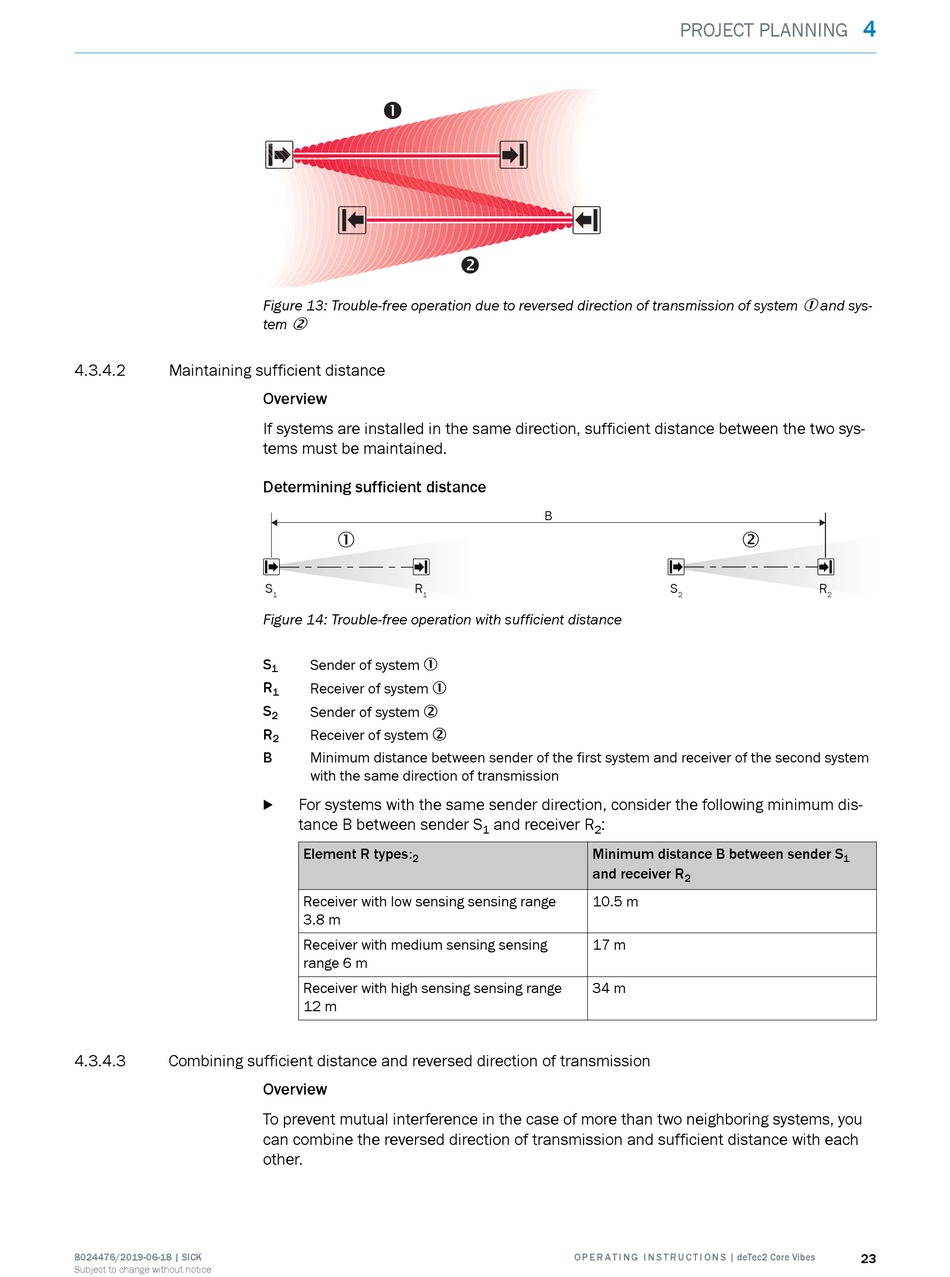

Figure 13: Trouble-free operation due to reversed direction of transmission of system
tem 2
Overview
If systems are installed in the same direction, sufficient distance between the two sys‐
tems must be maintained.
Determining sufficient distance
1
S R
1 1
Figure 14: Trouble-free operation with sufficient distance
S
Sender of system 1
1
R
Receiver of system 1
1
S
Sender of system 2
2
R
Receiver of system 2
2
B Minimum distance between sender of the first system and receiver of the second system
with the same direction of transmission
For systems with the same sender direction, consider the following minimum dis‐
b
tance B between sender S
Element R types:
2
Receiver with low sensing sensing range
3.8 m
Receiver with medium sensing sensing
range 6 m
Receiver with high sensing sensing range
12 m
Overview
To prevent mutual interference in the case of more than two neighboring systems, you
can combine the reversed direction of transmission and sufficient distance with each
other.
r
"
B
and receiver R :
1 2
Minimum distance B between sender S
and receiver R
10.5 m
17 m
34 m
O P E R A T I N G I N S T R U C T I O N S | deTec2 Core Vibes
PROJECT PLANNING
1 and sys‐
2
S R
2 2
1
2
4
