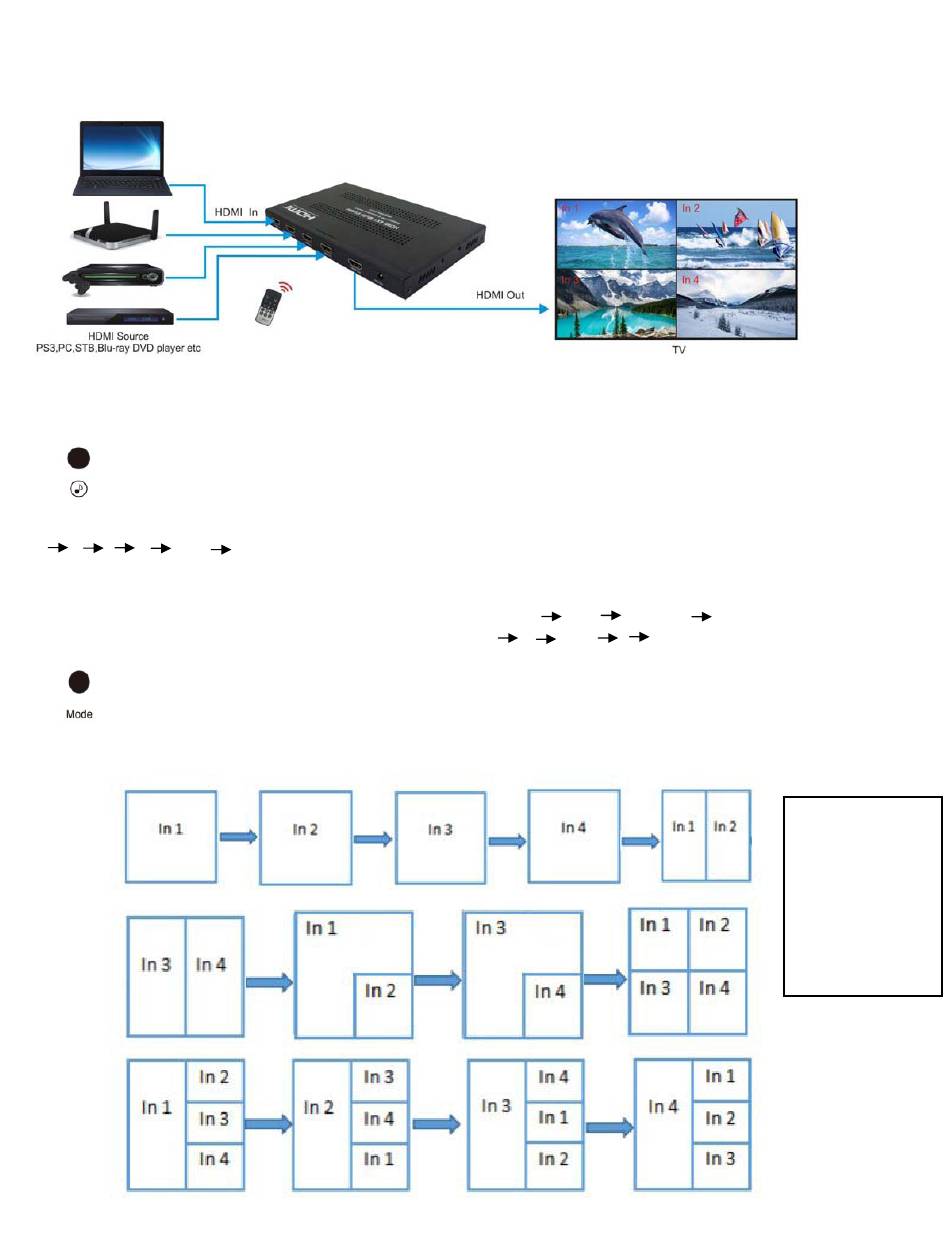

CONNECTION DIAGRAM

Panel Buttons

---Audio mode switching

Press the audio switch button on the front panel and switch between the audio channels as follows:

mute

Note: The audio will only switch between the channels being displayed.

For example:

If only one channel is displayed, the button will switch Channelx

If Channels 3 and 4 are displayed, audio will switch from 3

---Video mode switching

There are 13 different screen segmentation modes supported, switched in the following order :

1... ...

mute

Channelx

mute

mute, etc.

Note: If the

SPLITMUX is

powered-OFF,

the last mode

selected will be

the mode the

SPLITMUX is in

when powered-

ON again.
