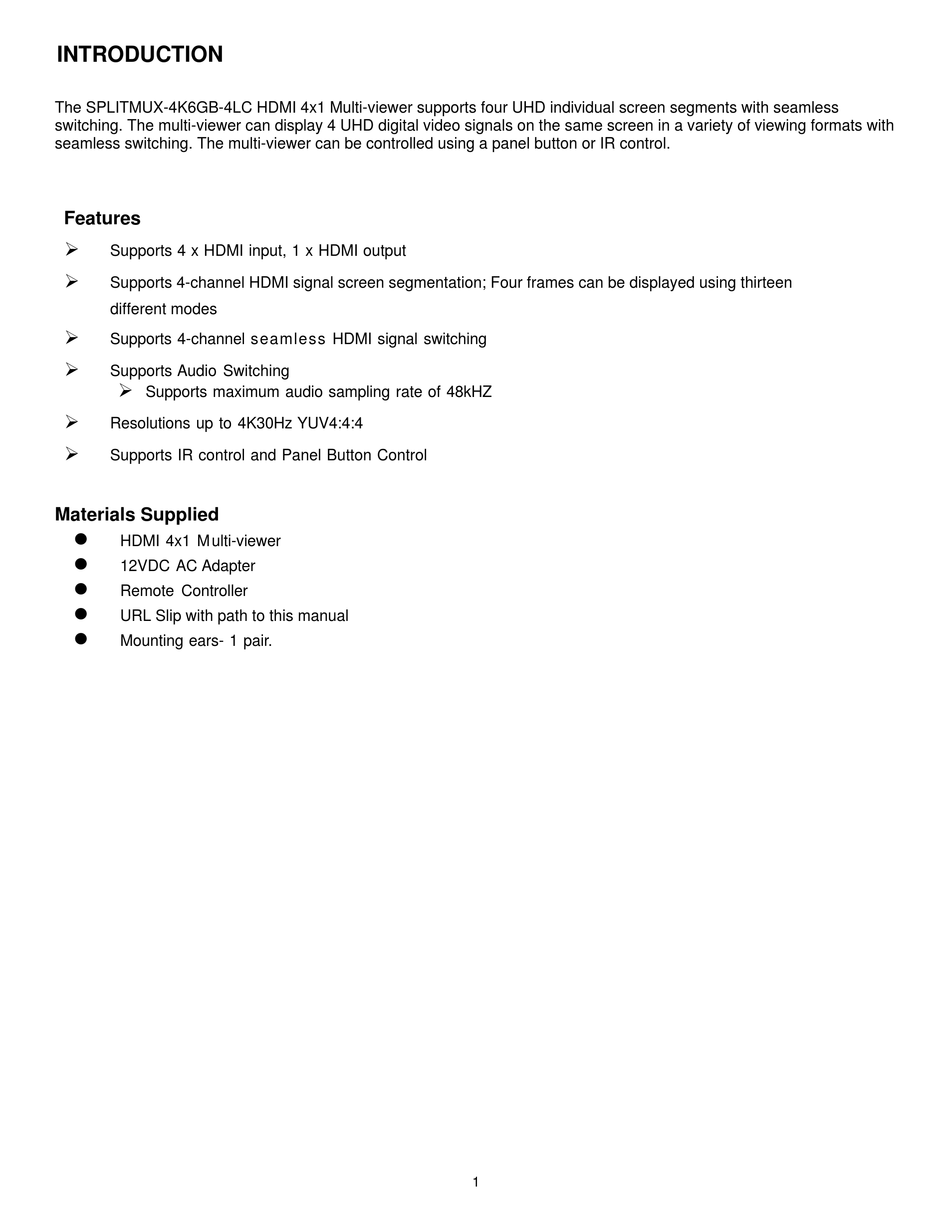

INTRODUCTION
The SPLITMUX-4K6GB-4LC HDMI 4x1 Multi-viewer supports four UHD individual screen segments with seamless
switching. The multi-viewer can display 4 UHD digital video signals on the same screen in a variety of viewing formats with
seamless switching. The multi-viewer can be controlled using a panel button or IR control.
Features

Supports 4 x HDMI input, 1 x HDMI output

Supports 4-channel HDMI signal screen segmentation; Four frames can be displayed using thirteen
different modes

Supports 4-channel seamless HDMI signal switching

Supports Audio Switching

Supports maximum audio sampling rate of 48kHZ

Resolutions up to 4K30Hz YUV4:4:4

Supports IR control and Panel Button Control

Materials Supplied


HDMI 4x1 M ulti-viewer

12VDC AC Adapter

Remote Controller

URL Slip with path to this manual

Mounting ears- 1 pair.
