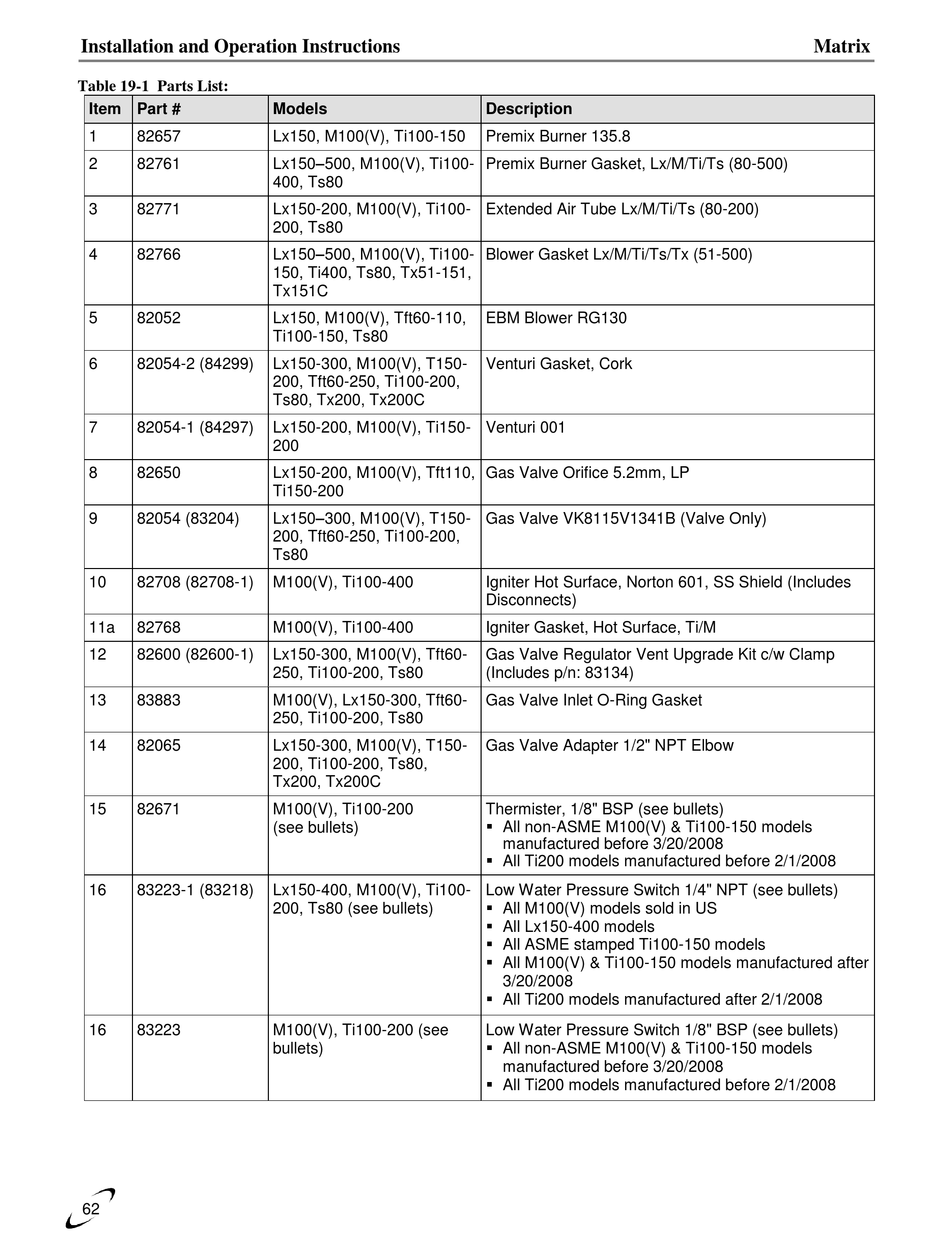

Table 19-1 Parts List:
Item Part #
1 82657
2 82761
3 82771
4 82766
5 82052
6 82054-2 (84299)
7 82054-1 (84297)
8 82650
9 82054 (83204)
10 82708 (82708-1)
11a 82768
12 82600 (82600-1)
13 83883
14 82065
15 82671
16 83223-1 (83218)
16 83223
62
Models
Lx150, M100(V), Ti100-150
Lx150–500, M100(V), Ti100-
400, Ts80
Lx150-200, M100(V), Ti100-
200, Ts80
Lx150–500, M100(V), Ti100-
150, Ti400, Ts80, Tx51-151,
Tx151C
Lx150, M100(V), Tft60-110,
Ti100-150, Ts80
Lx150-300, M100(V), T150-
200, Tft60-250, Ti100-200,
Ts80, Tx200, Tx200C
Lx150-200, M100(V), Ti150-
200
Lx150-200, M100(V), Tft110,
Ti150-200
Lx150–300, M100(V), T150-
200, Tft60-250, Ti100-200,
Ts80
M100(V), Ti100-400
M100(V), Ti100-400
Lx150-300, M100(V), Tft60-
250, Ti100-200, Ts80
M100(V), Lx150-300, Tft60-
250, Ti100-200, Ts80
Lx150-300, M100(V), T150-
200, Ti100-200, Ts80,
Tx200, Tx200C
M100(V), Ti100-200
(see bullets)
Lx150-400, M100(V), Ti100-
200, Ts80 (see bullets)
M100(V), Ti100-200 (see
bullets)
Description
Premix Burner 135.8
Premix Burner Gasket, Lx/M/Ti/Ts (80-500)
Extended Air Tube Lx/M/Ti/Ts (80-200)
Blower Gasket Lx/M/Ti/Ts/Tx (51-500)
EBM Blower RG130
Venturi Gasket, Cork
Venturi 001
Gas Valve Orifice 5.2mm, LP
Gas Valve VK8115V1341B (Valve Only)
Igniter Hot Surface, Norton 601, SS Shield (Includes
Disconnects)
Igniter Gasket, Hot Surface, Ti/M
Gas Valve Regulator Vent Upgrade Kit c/w Clamp
(Includes p/n: 83134)
Gas Valve Inlet O-Ring Gasket
Gas Valve Adapter 1/2" NPT Elbow
Thermister, 1/8" BSP (see bullets)
 All non-ASME M100(V) & Ti100-150 models
manufactured before 3/20/2008
 All Ti200 models manufactured before 2/1/2008
Low Water Pressure Switch 1/4" NPT (see bullets)
 All M100(V) models sold in US
 All Lx150-400 models
 All ASME stamped Ti100-150 models
 All M100(V) & Ti100-150 models manufactured after
3/20/2008
 All Ti200 models manufactured after 2/1/2008
Low Water Pressure Switch 1/8" BSP (see bullets)
 All non-ASME M100(V) & Ti100-150 models
manufactured before 3/20/2008
 All Ti200 models manufactured before 2/1/2008
