Installation and Operation Instructions

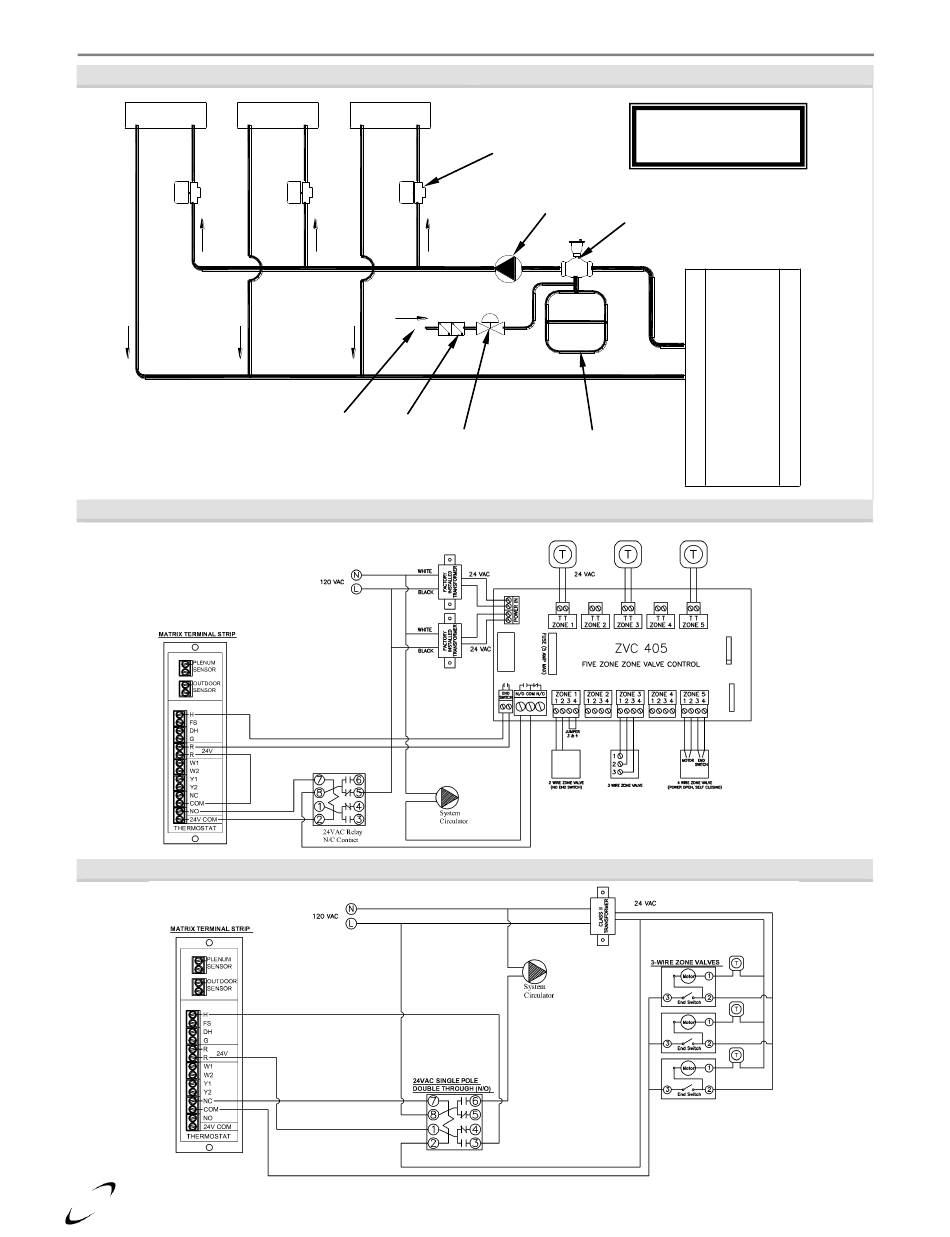

Figure 10-3(a) Plumbing High Temperature Zones (w/ Zone Valves)
Zone #3 Zone #2
32
Zone #1
Make Up
Backflow
Water
Preventer Pressure
Reducing
Valve
Figure 10-3(b) Wiring Zones (w/ Zone Valve Controller)
Figure 10-3(c) Wiring Zones (w/o Zone Valve Controller)
High Temperature
Zones Only
Zone
Valve
System
Circulator
Air
Separator
Expansion
Tank
Matrix
NTI
