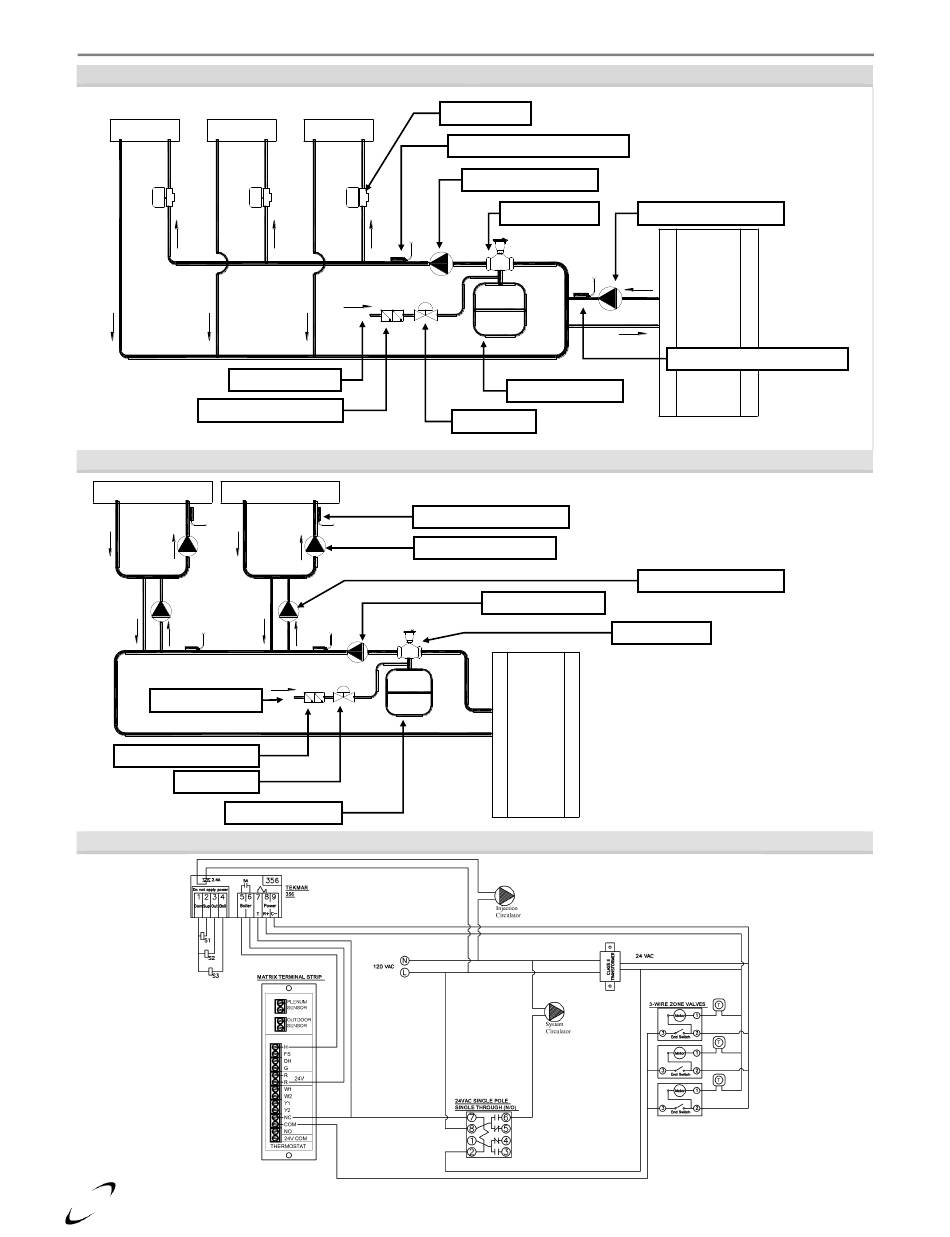

Figure 10-5(a) Plumbing Single Temperature Zones (w/ Injection System)
Zone #3 Zone #2
Make-up Water
Backflow Preventer
Figure 10-5(b) Plumbing Multiple Temperature Zones (w/ Injection System)
Low Temp. Zones High Temp. Zones
Make-up Water
Backflow Preventer
Feed Valve
Expansion Tank
Figure 10-5(c) Wiring Injection System (w/ Tekmar 356 Controller)
34
Zone Valves
Zone #1
Temperature Sensor (S1)
System Circulator
Feed Valve
Temperature Sensors
System Circulators
Boiler Circulator
Air Separator Injection Circulator
Temperature Sensor (S3)
Expansion Tank
Injection Circulators
Air Separator
NTI
Matrix
NTI
