Installation and Operation Instructions

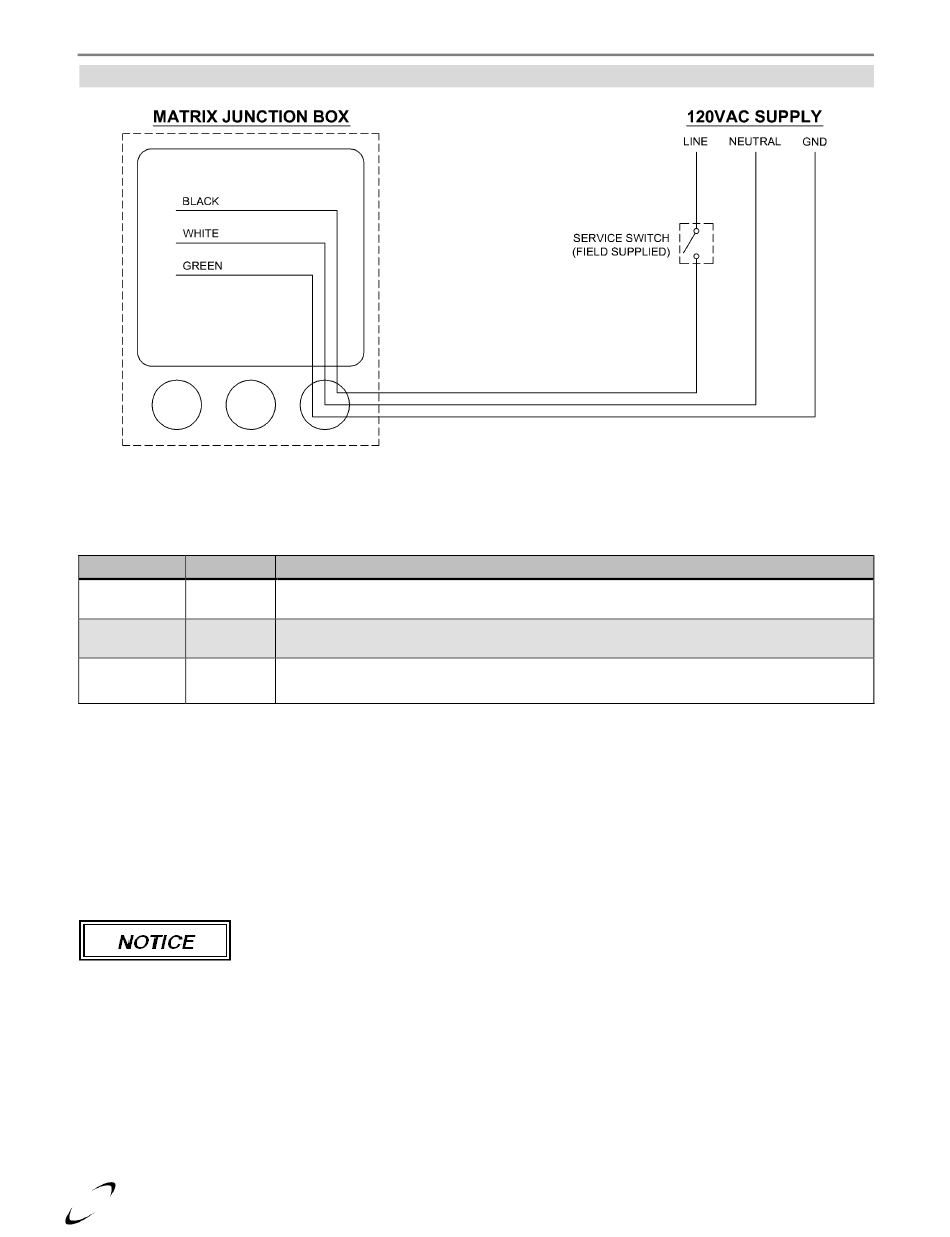

Figure 12-1 Line Voltage Field Wiring
Table 12-1 Line Voltage Field Connections
Connection Color
L1
Black
(120VAC)
L2
White
(Neutral)
Ground Green
Low Voltage Connections
The Matrix low voltage (thermostat) connections are located on a terminal strip on the left-hand side of the unit,
on the outside of the boiler cabinet. Low voltage field connections are to be installed in accordance with Figure
12-2 and Table 12-2.
Fuse (24 VAC) – The Matrix is equipped with a "blade style" 2 Amp fuse to protect the internal transformer
located on the control panel.
The Matrix terminal strip is for low voltage (max 24 VAC) and low load (max 1 Amp)
connections. Any electrical loads in excess of 24 VAC or 1 Amp must be isolated using
relays. Failure to follow these instructions can result in component malfunction.
40
Description
Location for connecting line voltage of the power supply. Note; most installation codes
require the installation of a service switch to break line voltage to the appliance.
Location for connecting neutral of the power supply.
Location for connecting earth ground and for grounding all of the circulators.
Matrix
