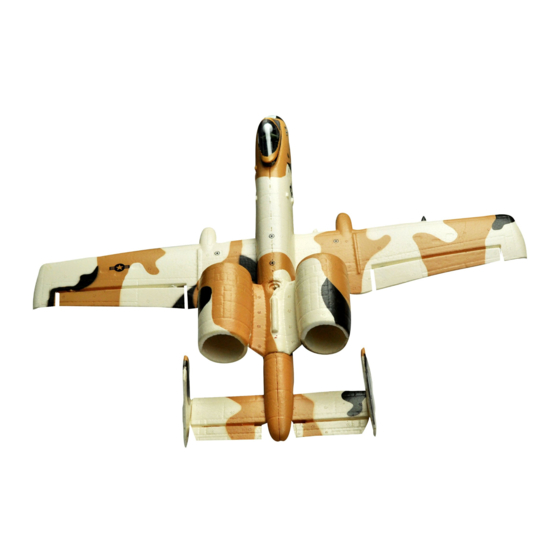

- Page 1 Assembly and Operating Manual Nano A-10 SPECIFICATION: Length: 18-3/10"(465mm) Wing Span: 19-9/10"(465mm) Flying Weight: 5-1/2 oz. (155g)
- Page 2 2.4GHz radios placed under stress. SKYANGEL Nano range and thank you for systems are recommended, similar to the unit placing your trust in us. included with our deluxe version.
-
Page 3: Parts Illustration
Assembly and Operating Manual Fig. 1 Open the box and check all the parts. Parts Illustration Parts List Description Fuselage Twin ducted fan set Integral wing panels with L.H / R.H. ailerons Tail Set - One Left (and one Right) Vertical Fin Integral Horizontal Stabilizer with Elevators Cockpit Canopy Missiles... - Page 4 Assembly and Operating Manual Fig. 2 - Glue the control rod to Horizontal Stabilizer. Fig. 3 - Remove any excess glue and hold in Fig. 4 - Glue the left Vertical fin to the Horizontal (glue not included) position until glue sets. The photo shows the Stabilizer.
- Page 5 Assembly and Operating Manual Fig. 8 - Apply glue to the Horizontal Stabilizer. Fig. 9 - Assemble the Horizontal Stabilizer to the Fig. 10 - Connect the elevator push rod to the fuselage, and hold in position until the glue sets. servo at first hole.
- Page 6 Assembly and Operating Manual Fig. 14 - Insert the ducted fan set to the fuselage Fig. 15 - Fix the ducted fan set with fixed base. Fig. 16 - Tighten it with screw. carefully. Fig. 17 - Glue the control rod to the wing panel Fig.
- Page 7 Assembly and Operating Manual Fig. 20 - Connect the aileron push rod to the Fig. 21 - Tighten the control rod with screw. Fig. 22 - Reverse the procedure to the left push control rod. rod. The photo shows the finished view. Fig.
- Page 8 Assembly and Operating Manual Fig. 26 - Insert the wing panel to the fuselage. Fig. 27 - Fix the wing panel with fix base. Fig. 28 - Tighten the fix base with screw. Fig. 29 - Glue the skid to the fuselage. Fig.
- Page 9 Assembly and Operating Manual Fig. 32 - Apply glue to the fuselage Fig. 33 - Photo shows the finished view after the Fig. 34 - Connect channel wire to the receiver. The receiver on the abdomen position Electronic warehouse is glued. Fig.
- Page 10 Assembly and Operating Manual Fig. 38 - Apply glue to the fix slot and glue the fix Fig. 39 - Insert the landing gear to the fix base. Fig. 40 - The photo shows the assembled landing base and hold it in position until the glue sets. gear set.
- Page 11 Assembly and Operating Manual Fig. 43 - Charge the flight battery; connect the Equalizer lead using and adapter lead matching your charger (adapter lead not included) Fig. 44 - Switch the transmitter on, and move the throttle stick to the “Motor OFF” position. (Diagram MODE 1 right throttle control stick)
- Page 12 Assembly and Operating Manual Fig. 45 and 46 - Checking Ailerons and Elevators Check that the control surfaces respond to the appropriate movements of the transmitter sticks. If not, swap over the connectors at the receiver. Make sure do not apply glue to control rods fastener before check the neutral position of the control surfaces Stand behind the model.
- Page 13 Assembly and Operating Manual Fig. 48 - Checking the model’s balance Place the flight battery in its compartment, without connecting. Mark the Centre of Gravity (CG) on both sides of the fuselage; the position is shown in the photo. Support the model at the marked points and allow it to hang freely.
- Page 14 Test Flying - Notes on flying the airplane For the first flight you should wait for a relatively calm day with no more Please read the sections entitled “Routine pre-flight checks” and “Flying than a gentle breeze. the model” in the Safety Notes before attempting to fly the Nano A-10Jet A good flying site is a large, flat, open field;...
- Page 15 Jiangyin Skyangel Electronic Technology Co., Limited. 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.skyangelrc.com...
