Page 1

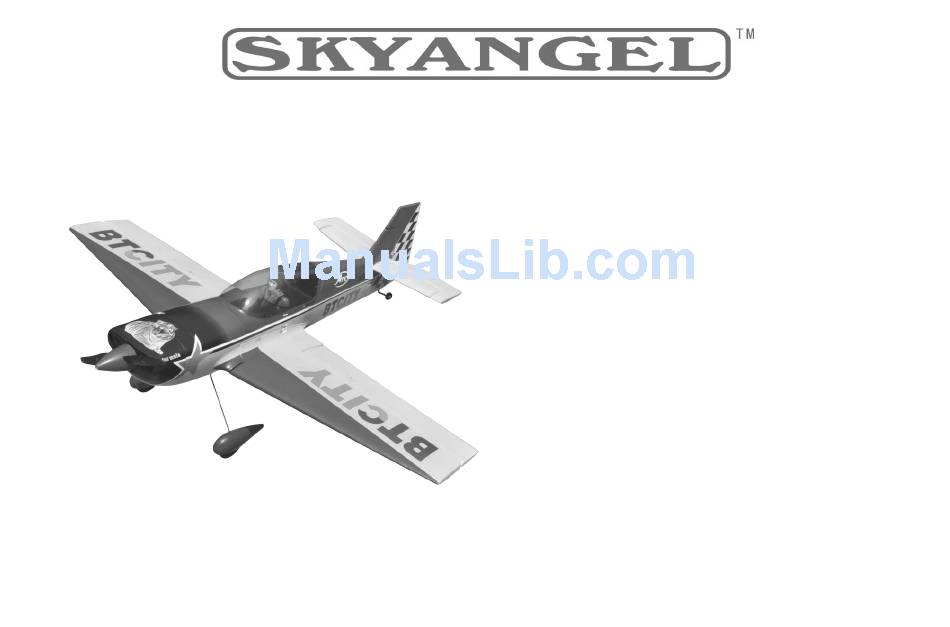

Assembly and Operating Manual G202-3D Specification: *Length: 36-1/5"(920 mm) *Wing span: 39-2/5"(1000 mm) *Flying weight: 35-3/10 oz (1000g)
Page 2
The receiving system is powered by the speed Integral wing panels with L.H / R.H. ailerons and SKYANGEL 3D AEROBATIC range and thank controller’s integral BEC system. servos you for placing your trust in us.
Page 3
Assembly and Operating Manual G202-3D Figs. 1 -Connect the control rod to horizontal tail, tighten it with the screws. Figs. 2 -Photo shows the finished view. Fig. 3 -Connect the control rod to vertical tail, tighten it with the screws.
Page 4
Assembly and Operating Manual G202-3D Fig. 5 -Connect the control rod to aileron, tighten it with the screws. Fig. 6 - Photo shows the control rods have locked on the aileron. Fig. 7 - Apply glue on the horizontal tail.
Page 5
Assembly and Operating Manual G202-3D Fig. 9 - Photo shows the horizon tail have assembled on the fuselage. Fig. 10 - Put the backward landing gear in the hole which on the fuselage. Figs. 11 -Put the backward landing gear in the steering hole.
Page 6
Assembly and Operating Manual G202-3D Figs. 13 -Apply glue to the fuselage. Figs. 14 -Apply glue to the steering place. Figs. 15 -Assemble the vertical cal tail on the fuselage. Figs. 16 -Photo shows the finished view.
Page 7
Assembly and Operating Manual G202-3D Figs. 17 -Connect the vertical push rod to control rods . Figs. 18 -Photo shows the vertical linkage has connect with the control rods. Figs. 19 -Connect the horizon tail push rod to control rods.
Page 8
Assembly and Operating Manual G202-3D Figs. 21 - Connect the aileron push rod to the servo arm at the second hole. Figs. 22 -Connect the aileron push rod to control rod arm. Figs. 23 -Photo shows the aileron linkage has connect with the control rods.
Page 9
Assembly and Operating Manual G202-3D Figs. 25 -Lock the fixup presser with screw. Figs. 26 -Photo shows the main wing have assembly to the fuselage. Figs. 27 -Assemble the main landing gear on the wing set. Figs. 28 -Assemble the propeller on the motor.
Page 10
Assembly and Operating Manual G202-3D Figs. 29 -Lock the plastic spinner with screws. Figs. 30 - Place the flight battery in the fuselage. Figs. 31 -Connect the channels to the receiver. Figs. 32 - Photo shows battery leads connected to the speed...
Page 11
Assembly and Operating Manual G202-3D Figs. 33 - Opening and closing the canopy: The canopy is retained by the cowl at the front, and by a tongue at the rear - To open the canopy, slide it forward, raise it at the rear and lift it off - Reverse the procedure to replace the canopy.
Page 12
Assembly and Operating Manual G202-3D Figs. 35 -Charge the flight battery; connect the Equalizer lead using and adapter lead matching your charger (adapter lead not included). Figs. 36 -Switch the transmitter on, and move the throttle stick to the “Motor OFF” position. (Diagram MODE 1...
Page 13
Assembly and Operating Manual G202-3D Figs. 37 -39 Function test Check the channel assignment at the receiver, and if necessary swap the plugs as necessary. - Set the transmitter sticks and trims to centre. - The control surfaces should now also be at centre (neutral).
Page 14
Assembly and Operating Manual G202-3D Fig. 40 checking the electric power system - Caution: position the throttle stick in such a way that the motor cannot possibly start running.
Page 15
Assembly and Operating Manual G202-3D - With the motor running at full-throttle, give the - Switch the transmitter on, and connect the aeroplane a firm launch directly into any breeze, Test-flying, flying notes flight pack with the fuselage and wings level.
