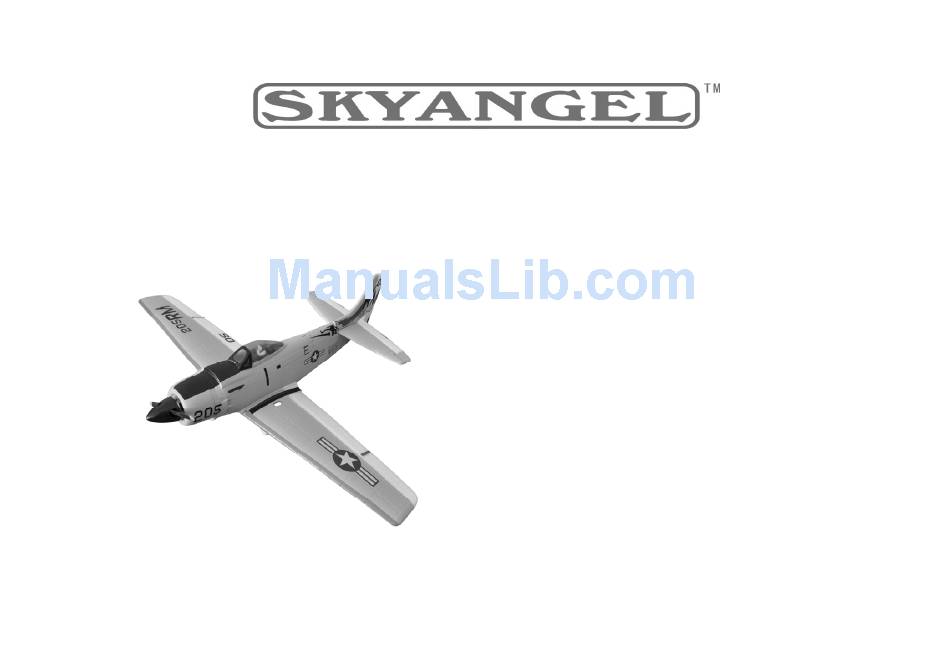

- Page 1 Assembly and Operating Manua Mini Warbirds Specification: *Length: 19-3/10"(490mm) *Wing Span: 25-1/2"(640mm) *Flying Weight: 11-1/10 oz (315g)
- Page 2 We particularly Kit contents factory-assembled model aircraft from the recommend 2.4 GHz systems. SKYANGEL Mini Warbirds range and thank you Fuselage, complete with motor, speed controller for placing your trust in us. The receiving system is powered by the speed and servo.
- Page 3 Assembly and Operating Manual Fig. 1 - Connect the push rods to the elevator servo arm. Fig. 2 - Photo shows the fixed push rods to servo arm. Fig. 3 Apply glue to the horizontal tail (glue not included) Fig. 4 - Apply glue to the fuselage (glue not included)
- Page 4 Assembly and Operating Manual Fig. 5 - Glue the horizontal tail in place with adhesive. Put it in place while the glue is hardening. Fig. 6 - Photo shows the fixed horizontal tail. Fig. 7 - Apply glue to the horizontal tail (glue not included) Fig.
- Page 5 Assembly and Operating Manual Fig. 9 - Glue the vertical tail in place with adhesive. Put it in place while the glue is hardening. Fig. 10 Photo shows the fixed vertical tail. Figs. 11-12 - Opening and closing the canopy: The canopy is retained by the cowl at the front, and by a tongue at the rear - To open the canopy, slide it forward, raise it at...
- Page 6 Assembly and Operating Manual Fig. 13 - Check that the fin is exactly at right-angles to the tailplane. Fig. 14 - Apply a strip of Velcro tape to the underside of the flight battery. Stick the mating piece inside of fuselage.
- Page 7 Assembly and Operating Manual Fig. 17 - Place the receiver in the fuselage and deploy the receiver aerials(s). Fig. 18 Balancing - Place the canopy on the fuselage. - Place the battery in the model of balancing; do not connect it. - Make the Centre of Gravity on both sides.
- Page 8 Assembly and Operating Manual Figs. 21 and 22 - Check the channel assignment of the control surfaces, and swap over the connectors at the - Check the neutral position of the control surfaces. Make adjustments to the clevises if necessary. - Stand behind the model.
- Page 9 Assembly and Operating Manual - Switch the transmitter on, and connect the Test-flying, flying notes aeroplane a firm launch directly into any breeze, flight pack with the fuselage and wings level. Read the sections in the Safety - Check the direction of rotation of the motor: Notes entitled “Routine pre-flight - Allow the A1 to fly straight ahead initially;...
- Page 10 Jiangyin Skyangel Electronic Technology Co., Limited. 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.skyangelrc.com...
