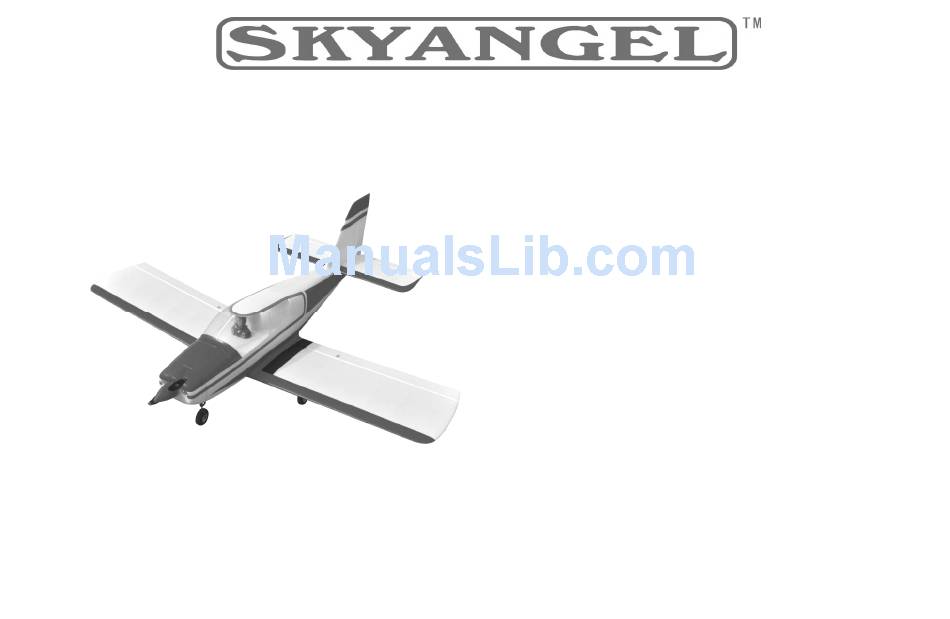

- Page 1 Assembly and Operating Manual HR-100 Specification: *Length: 41-7/10"(1060 mm) *Wing span: 49-1/5"(1250 mm) *Flying weight: 45.9 oz (1300g)
- Page 2 The receiving system is powered by the speed Integral wing panels with L.H / R.H. ailerons and SKYANGEL TRAINER PLANE range and thank controller’s integral BEC system. servos you for placing your trust in us.
- Page 3 Assembly and Operating Manual HR-100 Figs. 1 -Connect the control rod to horizontal tail ,tighten it with the screws. Figs. 2 -Photo shows the finished view. Fig. 3 -Connect the control rod to vertical tail ,tighten it with screws. Fig. 4...
- Page 4 Assembly and Operating Manual HR-100 Fig. 5 -Connect the control rod to aileron, tighten it with the screws. Fig. 6 - Photo shows the control rods have locked on the aileron. Fig. 7 -Reverse the procedure to the left side. The photo shows the finished view.
- Page 5 Assembly and Operating Manual HR-100 Fig. 9 -Photo shows the horizon tail assembly to the fuselage. Fig. 10 -Connect the vertical push rod to control rods . Fig. 11 -Photo shows the vertical linkage has connect with the control rods.
- Page 6 Assembly and Operating Manual HR-100 Fig. 13 -Photo shows the horizon tail linkage has connect with the control rods. Fig. 14 - Assemble the wooden pole into the wing set. Fig. 15 -Photo shows the wooden pole connect the two side wing set.
- Page 7 Assembly and Operating Manual HR-100 Fig. 17 -Connect the aileron push rod to control rod arm. Fig. 18 -Reverse the procedure to the left side. The photo shows the finished view. Figs. 19 -Assemble the wing set on the fuselage.
- Page 8 Assembly and Operating Manual HR-100 Figs. 21 -Photo shows the main wing have assembly to the fuselage. Figs. 22 -Assemble the main landing gear on the wing set. Figs. 23 -Reverse the procedure to the right side. The photo shows the finished view.
- Page 9 Assembly and Operating Manual HR-100 Figs. 25 -Photo shows front landing gear have assembly to fuselage. Figs. 26 -Assemble the propeller on the motor . Figs. 27 -Lock the plastic spinner with screws. Figs. 28 - Place the flight battery in the fuselage.
- Page 10 Assembly and Operating Manual HR-100 Figs. 29 -Connect the channels to the receiver . Figs. 30 - Photo shows battery leads connected to the speed controller. Figs. 31 - Assemble the canopy on the fuselage. Figs. 32 - Place the canopy on the fuselage.
- Page 11 Assembly and Operating Manual HR-100 Figs. 33 -Charge the flight battery; connect the Equalizer lead using and adapter lead matching your charger (adapter lead not included). Figs. 34 -Switch the transmitter on, and move the throttle stick to the “Motor OFF” position. (Diagram MODE 1...
- Page 12 Assembly and Operating Manual HR-100 Figs. 35 -37 Check the channel assignment at the receiver, and if necessary swap the plugs as necessary. - Set the transmitter sticks and trims to centre. - The control surfaces should now also be at centre (neutral).
- Page 13 Assembly and Operating Manual HR-100 Fig. 38 checking the electric power system - Caution: position the throttle stick in such a way that the motor cannot possibly start running.
- Page 14 Read the sections in the Safety - Check the direction of rotation of the motor: Notes entitled “Routine pre-flight - Allow the HR-100 to fly straight ahead initially; when viewed from the front, the output shaft checks” and “Flying the model”...
