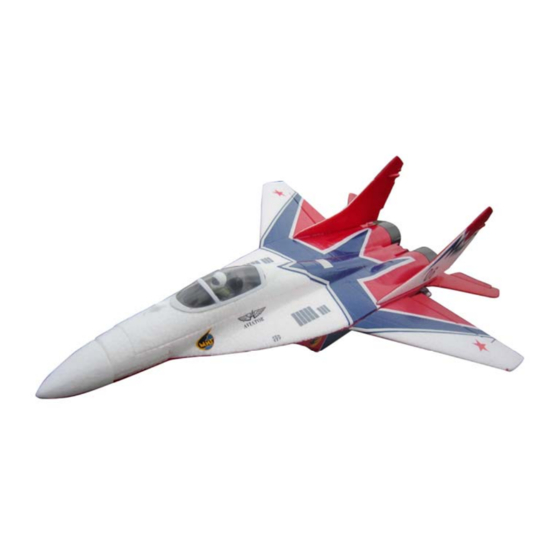

- Page 1 Assembly and Operating Manual Nano MIG-29 SPECIFICATION: Length: 20-1/5"(515mm) Wing Span: 15-1/5"(386mm) Flying Weight: 5-3/5oz。(158g.)
- Page 2 Assembly and Operating Manual Dear customer, by the glue manufacturer. Allow the glue to fully To fly the Nano Mig-29 you will need a radio cure (harden) to the point where the joint can be Congratulations on your choice of a control system with at least four channels.
-
Page 3: Parts Illustration
Assembly and Operating Manual Fig. 1 Open the box and check all the parts. Parts Illustration Parts List Description Fuselage Nose Wing Set – One Left (and one Right) Wing Panel Tail Set - Two Vertical Fin Tail Set - One Left (and one Right) Horizontal Stabilizer with Elevators Cockpit Canopy Missiles 600mAh 7.4V 20C Li-Po Battery... - Page 4 Assembly and Operating Manual Fig. 2 - Glue the control rod to main wing panel. Fig. 3 - Remove any excess glue and hold in Fig. 4 - Reverse the procedure to the right side. (glue not included) position until glue sets. The photo shows the The photo shows the finished view.
- Page 5 Assembly and Operating Manual Fig. 8 - The photo shows the finished view. Fig. 9 - Reverse the procedure to the right side. Fig. 10 - Glue the control rod to horizontal tail (glue not included). The photo shows the finished view. Fig.
- Page 6 Assembly and Operating Manual Fig. 14 - Apply glue to the horizontal tail. Fig. 15 - Remove any excess glue and hold in Fig. 16 - Reverse the procedure to the right side. position until glue sets. The photo shows the The photo shows the finished view.
- Page 7 Assembly and Operating Manual Fig. 20 - Connect the elevator push rod to the Fig. 21 - Connect the elevator push rods to the Fig. 22 - Tighten the control rod with screw servo arm at first hole. control rods. Fig.
- Page 8 Assembly and Operating Manual Fig. 26 - Remove any excess glue and hold in Fig. 27 - Reverse the procedure to the right side. Fig. 28 - Apply glue to the nose cone (glue not position until glue sets. The photo shows the The photo shows the finished view.
- Page 9 Assembly and Operating Manual Fig. 32 - The photo shows the finished view. Fig. 33 - Connect channel wire to the receiver.. Fig. 34 - Locate the battery in front of the fuselage. Fig. 35 - Photo shows battery leads connected to Fig.
- Page 10 Assembly and Operating Manual Fig. 38 - Charge the flight battery; connect the Equalizer lead using and adapter lead matching your charger (adapter lead not included) Fig. 39 - Switch the transmitter on, and move the throttle stick to the “Motor OFF” position. (Diagram MODE 1 right throttle control stick)
- Page 11 Assembly and Operating Manual Fig. 40 and 41 - Checking Ailerons and Elevators Check that the control surfaces respond to the appropriate movements of the transmitter sticks. If not, swap over the connectors at the receiver. Make sure do not apply glue to control rods fastener before check the neutral position of the control surfaces Stand behind the model.
- Page 12 Assembly and Operating Manual Fig. 43- Checking the model’s balance Place the flight battery in its compartment, without connecting. Mark the Centre of Gravity (CG) on both sides of the fuselage; the position is shown in the photo. Support the model at the marked points and allow it to hang freely.
- Page 13 Switch the motor on, and launch the airplane strongly into the wind, with the fuselage and wings level. Allow the Nano MIG-29 Jet to fly straight and level initially, do not try to turn it when it is close to the ground.
- Page 14 Jiangyin Skyangel Electronic Technology Co., Limited. 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.skyangelrc.
