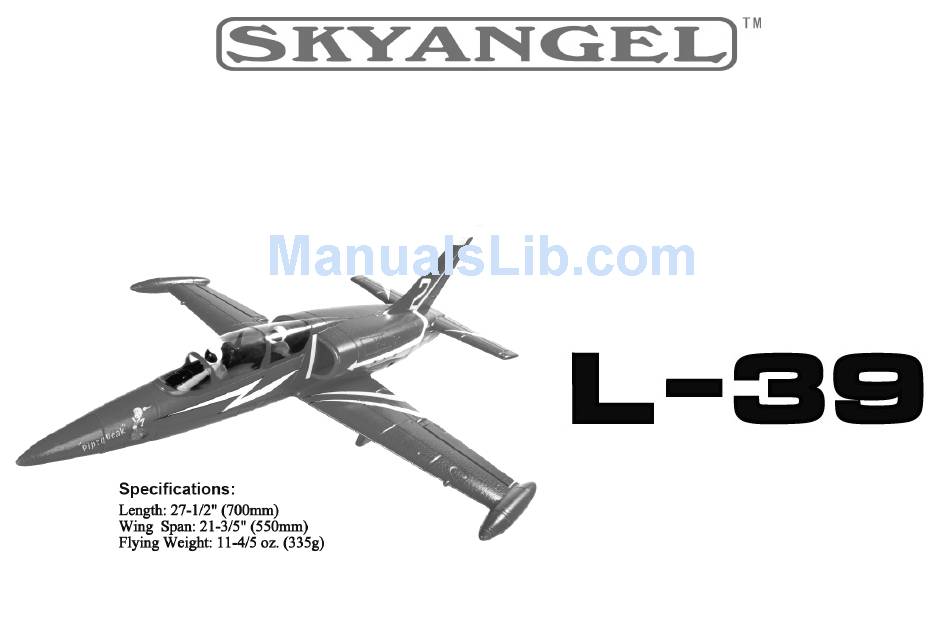

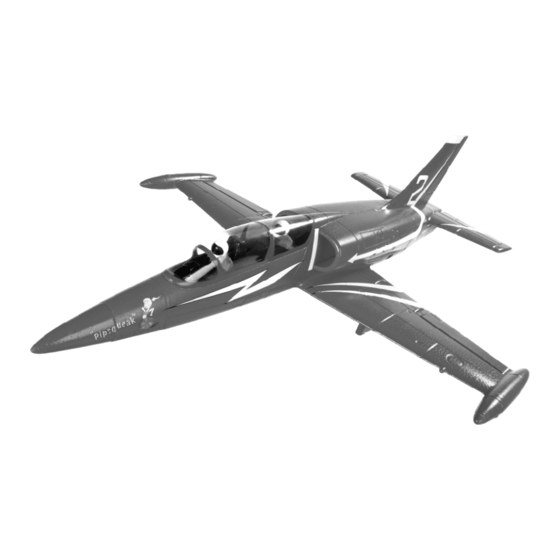

- Page 1 Assembly and Operating Manual...
- Page 3 2.4GHz radios systems from most reputable model retail shops. SKYANGEL Hummingbird range and thank you are recommended, similar to the unit included with for placing your trust in us. our deluxe version.
-
Page 4: Parts Illustration
Assembly and Operating Manual Fig. 1 Open the box and check all the parts. Parts Illustration Parts List Description Fuselage Wing Set – One Main Wing Panel Tail Set –One Horizontal Stabilizer with Elevator Tail Set - One Vertical Stabilizer Cockpit Canopy Push Rods Set Landing Skids... - Page 5 Assembly and Operating Manual Fig. 2 - Locate the fuselage and nose cone. Fig. 3 - Glue the nose to the front of fuselage (glue Fig. 4 - Glue the horizontal stabilizers to the slots not included). at the rear of the fuselage (glue not included). Fig.
- Page 6 Assembly and Operating Manual Fig. 8 - Locate the fixed plate for the front wheel. Fig. 9 - Glue the fixed plate into the fuselage as Fig. 10 - Attach the front wheel to the fixed plate shown in the photo (glue not included). Fig.
- Page 7 Assembly and Operating Manual Fig. 14 - Assemble to the wing panel to the Fig. 15 – Attached the white fix base as potos Fig. 16 – Tighten the main wing with srews. fuselage (glue not included). shown. Fig. 17 - Glue the vertical stabilizer as shown in Fig.
- Page 8 Assembly and Operating Manual Fig. 20 - Photo shows battery leads connected to Fig. 21 - Insert the battery into the front of the Fig. 22 - The canopy is held in place by magnets the electronic speed controller. fuselage. and can be lifted off.
- Page 9 Assembly and Operating Manual Fig. 26 and 27 - Checking Ailerons and Elevators - Check that the control surfaces respond to the appropriate movements of the transmitter sticks. If not, swap over the connectors at the receiver. - Check the neutral position of the control surfaces; you may need to screw the clevises in or out to correct any discrepancy.
- Page 10 Assembly and Operating Manual Fig. 29 - Checking the model’ s balance - Place the flight battery in its compartment, without connecting. - Mark the Centre of Gravity (CG) on both sides of the fuselage; the position is shown in the photo. - Support the model at the marked points and allow it to hang freely.
- Page 11 Assembly and Operating Manual than a gentle breeze. Test Flying - Notes on flying the airplane A good flying site is a large, flat, open field; well away from trees, fences, Please read the sections entitled “ Routine pre-flight checks”and “ Flying high-tension overhead cables and other potentially dangerous obstacles.
- Page 12 Jiangyin Skyangel Electronic Technology Co., Limited. 5th Floor, A3 Building, Xinjianxing Technology Industrial Park, Fengxin Road, Guangming Town, Bao'an, Shenzhen City, 518107 China Phone: +86 755 33699201 Fax: +86 755 33699203 www.skyangelrc.com...
