Kennedy Console Table
Assembly Instructions
12
O
P
O

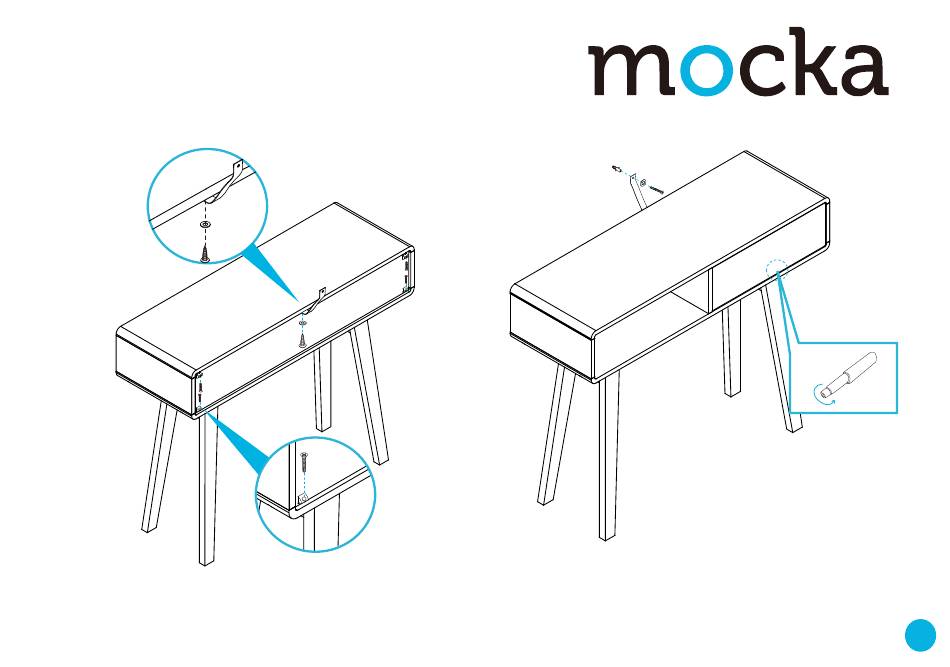

Attach 4x wedges (O) into the corners of the back of the unit and secure
with 4x screws (P). Tighten with a screwdriver.Attach 1x safety strap (V)
to the top of the back side of the unit as shown using 1x washer (Z) and
1x screw (W). Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
V
Z
W
V
Z
W
P
O
13
O
P
O
If the drawer is not catching or sitting flush, twist the end of the cover
(M) until it catches on the stopper (K).
place, do not drag. Use a drill to create a small hole lining up with the
top of the safety strap (V). Fasten to wall using 1x washer (Z), 1x wall
plug (X) and 1x screw (Y). Ensure unit is balanced and steady before
use.You're done, enjoy!
X
Z
Y
Once assembled lift furniture into
M
