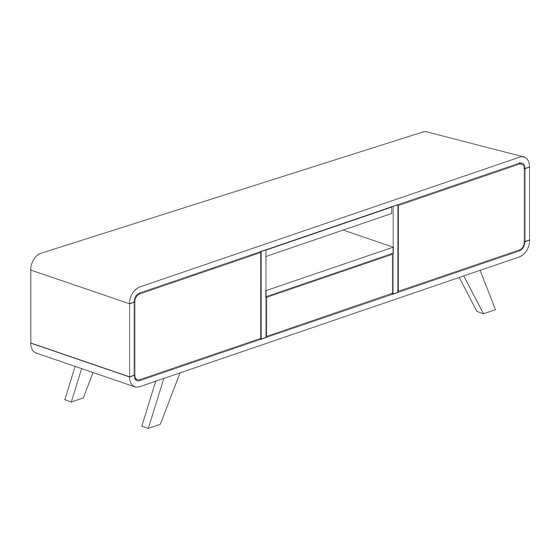

Kennedy Entertainment Unit
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
dowel
bolt
locking
wedge
x12
x20
x24
nut x24
M
N
O
P
hinge
bracket
cover
stopper
x3
x4
x3
x3
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall materials may require
different fixing devices from those supplied.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
E
F
G
H
screw
screw
bolt
slide
x41
x5
rail x1
rail x1
x4
Q
R
S
small
bracket
screw screw
bolt x16
x4
x10
Hardware Supplied
J
I
K
L
slide
slide
slide
allen
rail x1
rail x1
key x1
T
U
A1
adjuster
washer
x12
x1
x16
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Phillips & Flathead screwdrivers required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
Y
Z
wall
washer
screw
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kennedy and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Kennedy

Summary of Contents for Mocka Kennedy

  • Page 1 Kennedy Entertainment Unit Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. safety screw wall wall washer strap x1 anchor screw screw screw slide dowel bolt locking wedge bolt slide slide slide allen rail x1...
  • Page 2 Kennedy Entertainment Unit Assembly Instructions H x1 & J x1 Attach 2x brackets (M) to panel [1] and secure with 4x screws (E). Place 2x Attach 1x slide rail (H) to panel [5] and secure with 2x screws (E). covers (N) over them as shown. Attach panel [8] to panel [1] using 2x screws Attach 1x slide rail (J) to panel [6] and secure with 2x screws (E).
  • Page 3 Kennedy Entertainment Unit Assembly Instructions Attach panels [5] and [6] to panel [7] using 4x dowels (A) and 4x bolts Attach panels [4], [6], [5] and [3] to panel [1] using 8x dowels (A), 8x bolts (B). Secure with 4x locking nuts (C) and tighten with a screwdriver.
  • Page 4 Kennedy Entertainment Unit Assembly Instructions Slide panels [9] and [10] along the grooves between panels [3], [4], [5] Attach panel [2] to the rest of the unit using 8x dowels (A), 8x bolts (B) and [6] to form the back of the unit.
  • Page 5 Kennedy Entertainment Unit Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Front Back Front Attach a leg bracket (R) to each leg [18] using 2x screws (S) and 1x bolt Attach 12x wedges (D) to the back of the unit as shown and secure with (G).
  • Page 6 Kennedy Entertainment Unit Assembly Instructions NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door hinge until they are sitting flush. Attach 1x stopper (O) to door panel [11] using 1x screw (E). Attach 2x Secure door panels [11] and [12] to the main unit by attaching the other end hinges (P) to panel [11] and secure with 4x screws (E).
  • Page 7 Kennedy Entertainment Unit Assembly Instructions Drawer x1 Drawer x1 Attach panel [14] and [15] to front panel [13] using 4x locking nuts (C). Insert 4x bolts (B) into panel [13].Attach 1x plug (O) to panel Tighten with a screwdriver. [13] and secure with 1x screw (E).Tighten with a screwdriver.
  • Page 8 Kennedy Entertainment Unit Assembly Instructions Drawer x1 Drawer x1 Slide panel [17] along the grooves between the side panels [14] and Attach panels [14], [15] and [16] as shown using 4x screws (F). [15] to form the base of the drawer.
  • Page 9 Kennedy Entertainment Unit Assembly Instructions Drawer x1 45° Attach slide rails (K) and slide rails (I) to the underside of the side panels Insert the drawer into the unit at an upwards 45 ˚ angle. See the diagram Insert the drawer into the unit at an upwards 45˚ angle. See the diagram Ensure the drawer slides easily along the rails.

  • Page 10: Wall Mount

    Kennedy Entertainment Unit Assembly Instructions Wall Mount strap wall plug wall screw Attach 1x safety strap (V) to the top of the back side of the unit as shown Once assembled lift furniture into place, do not drag. Use a drill to create using 1x washer (Z) and 1x screw (W).
