Mocka Kennedy Bedside Table Assembly Instructions Manual

Kennedy Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A B C D
dowel
bolt locking screw
x8 x20 nut x20 x22
L M
K N
slide screw
slide slide
rail x2 x8 rail x2
rail x2
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances,
i.e. if a child attempts to climb up on the furniture or in the event of an earthquake. Accordingly, we recommend
that all furniture is anchored to a wall. We supply a free safety wall anchor with all furniture sold and we
recommend these are used to prevent your product tipping. The fixing device provided should fit most wall
types, but please note that different wall materials may require different fixing devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
E H
F G
bracket cover
plug
bolt
x2 x2
x2
x16
O P Q
R
allen
wedge long
screw screw
key x1
x4 bolt x4 x4

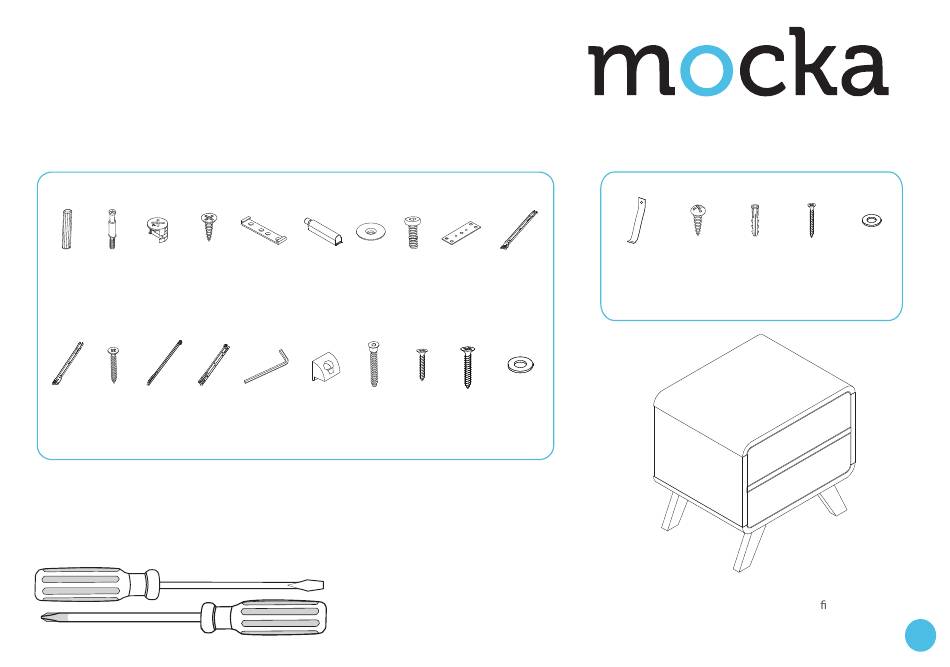

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
J
I
safety
bracket slide
strap x1
x4 rail x2
S
T
washer
x8
x16
holes before inserting the nut to ensure it locks 100%.
V W X
screw wall wall
x1
anchor screw
x1
Wall Strap
*We recommend using a Flathead screwdriver to
tighten all locking nuts 100% before rst use.
Please clear any loose wood from the locking nut
Y Z
washer
x2
x1
