Attach Cl Runner Tracks; Attach Cr Runner Tracks - Mocka Kennedy Console Table Assembly Instructions Manual

Kennedy Console Table
Assembly Instructions
2
E
4
E
E
H

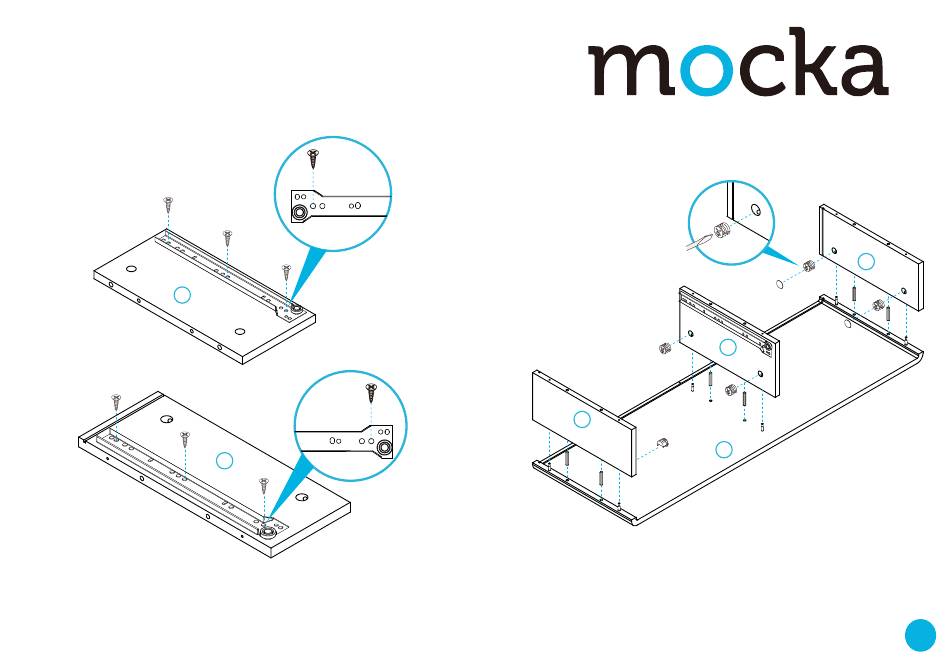

Attach 1xCL runner tracks (G) to panel [4] using 3x small screws (E).
Attach 1xCR runner tracks (H) to panel [5] using 3x small screws (E).
Tighten with a screwdriver.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
E
CL
E
G
E
G
E
CR
5
H
E
3
D
A
5
D
A
A
Insert 6x dowels (A) into panel [1]. Attach panels [3] , [4] and panel [5] to
panel [1] using 6x locking nuts (D). Tighten with a screwdriver. Cover the
holes of panel [3] using 2x sticker(R) as shown.
D
D
3
R
A
D
R
4
D
A
1
A
3
