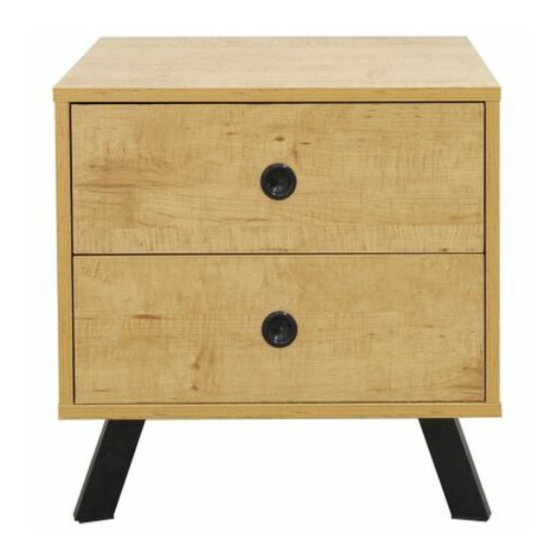

Mocka Kirra Bedside Table Assembly Instructions Manual

Mocka Kirra Bedside Table Assembly Instructions Manual

Advertisement

Quick Links

Kirra Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
dowl
screw
x8
x8
F
G
CL runner tracks
CR runner tracks
x2
x2
L
K
wedge
scerw
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au
C
D
bolt
locking nut
x4
x4
I
H
DL runners
DR runners
x2
x2
M
N
long scerw
small bolt
x4
x8

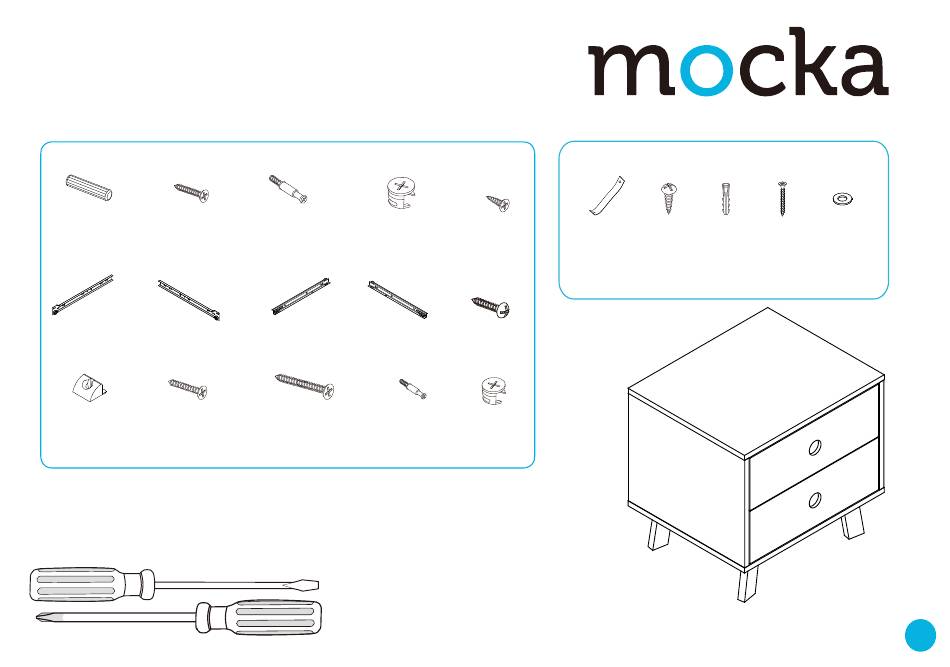

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
V
small screw
safety
x16
strap x1
J
screw
x16
O
small locking
nut
x8
W
X
Y
screw
wall
wall
washer
x1
anchor
screw
x1
x1
Wall Strap
Z
x2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kirra Bedside Table and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Kirra Bedside Table

  • Page 1 Kirra Bedside Table Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. dowl screw bolt small screw locking nut safety screw wall wall washer strap x1 anchor screw Wall Strap CL runner tracks CR runner tracks...
  • Page 2 Kirra Bedside Table Assembly Instructions Attach 2x slide rails (F) to panel [2] and secure with 4x small screws (E). Insert 4x dowels (A) to panel [1]. Insert 4x bolts (C) into panel [1]. Attach 2x slide rails (G) to panel [3] and secure with 4x small screws (E).
  • Page 3 Kirra Bedside Table Assembly Instructions Attach panels [2] and [3] to panel [1] and secure with 4x locking nuts (D). Slide panel [5] down along the grooves of the side panels to form the back Tighten with a screwdriver. of the unit.
  • Page 4 Kirra Bedside Table Assembly Instructions Attach panel [4] to the rest of the unit using 4x dowels (A). Attach the legs [6] to panel [4] as shown using 16x screw (J) .Tighten Secure with 4x screws (M) and tighten with a screwdriver.
  • Page 5 Kirra Bedside Table Assembly Instructions Attach panels [8] and [9] to panel [7] and secure with 4x small locking nuts (O). Insert 4x small bolts (N) to panel [7].Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
  • Page 6 Kirra Bedside Table Assembly Instructions Slide panel [10] down along the grooves of panels [8] and [9]. Attach panel [8], [9] and [11] as shown using 4x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au...
  • Page 7 Kirra Bedside Table Assembly Instructions Attach slide rails (I) and slide rails (H) to the underside of the side panels Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. as shown. Secure with 4x screws (E) and tighten with a screwdriver.
  • Page 8 Kirra Bedside Table Assembly Instructions Attach 4x wedges (K) into the corners of the back of the unit and secure Once assembled lift furniture into place, do not drag. Use a drill to create with 4x screws (L). Tighten with a screwdriver.Attach 1x safety strap (V) a small hole lining up with the top of the safety strap (V).
