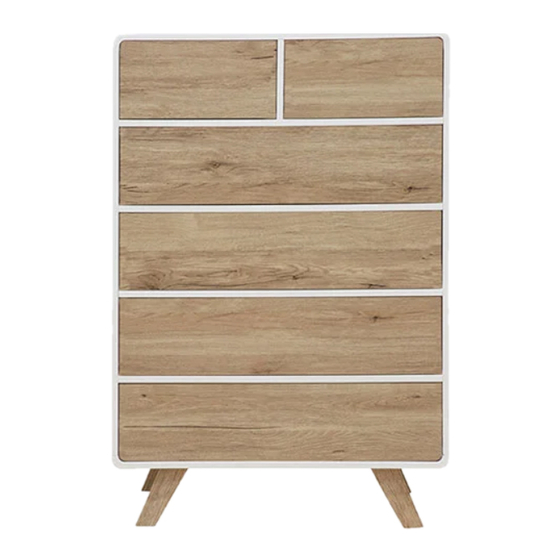

Kennedy Tallboy
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
D
A
B
locking
screw
bolt
dowel
nut x54
x54
x18
x33
L
M
N
O
plug
wedge
screw
bracket
x12
x4
x6
x12
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
F
G
H
screw
slide
slide
slide
slide
x78
rail x6
rail x6
rail x6
rail x6
P
Q
R
S
bolt
long
screw
washer
bolt x4
x8
x16
x16

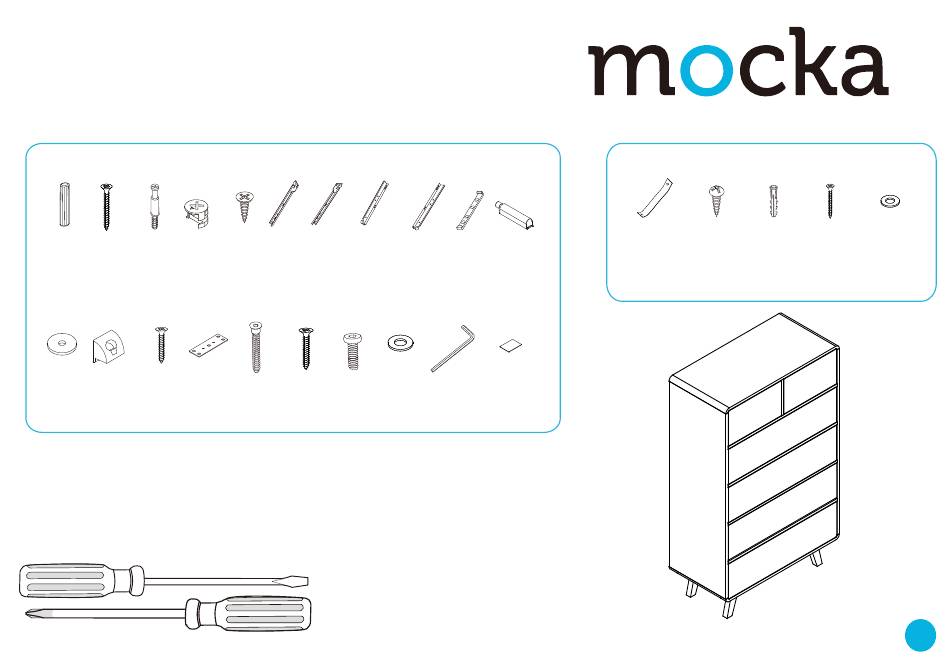

Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
I
J
K
cover
bracket
x6
x6
T
U
allen
felt pad
x4
key x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
x2
screw
x1
1
