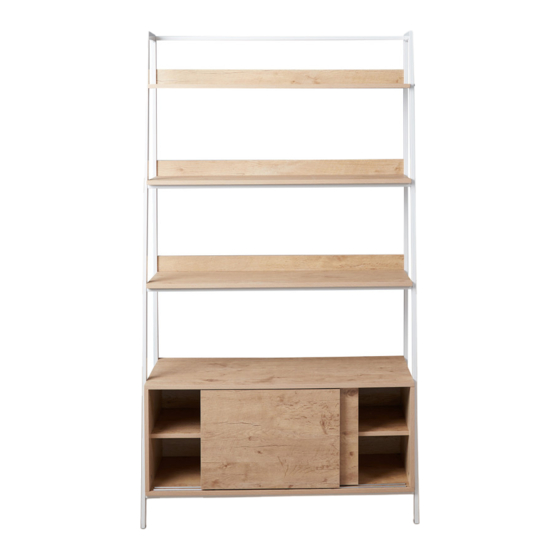

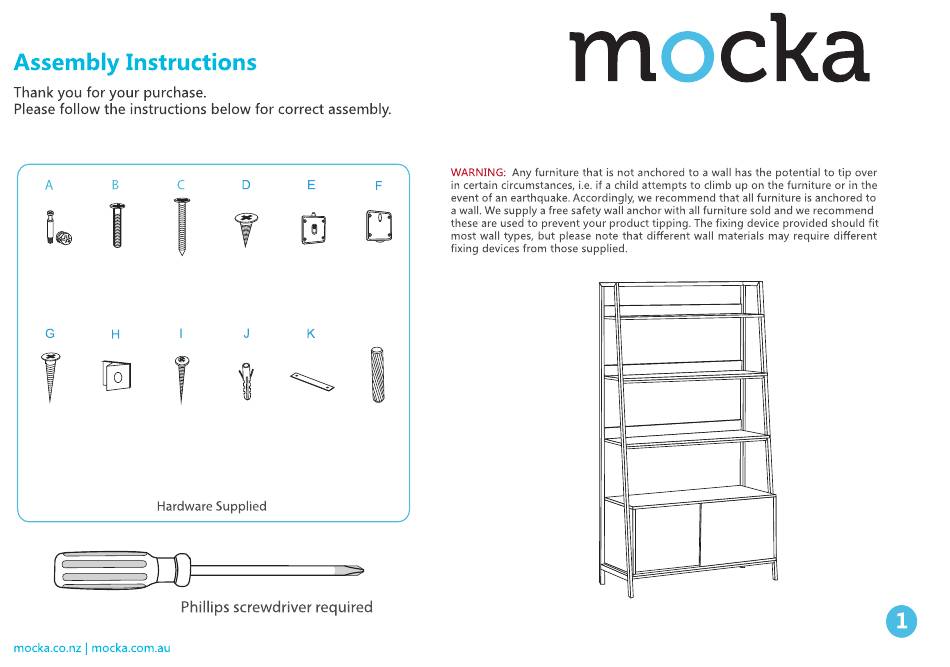

- Page 1 Kent Ladder Bookcase 25mm screw 50mm screw 14mm screw bolt & plastic clip plastic clip locking nut 18mm screw bracket 25mm screw wall strap dowel wall plug...
- Page 2 Kent Ladder Bookcase Attach panels [12], [13] and [14] to panels [11] Attach steel frames [17] to panels [13] and [14] and secure with 6 × screw (C). and secure with 4 × screw (B).
- Page 3 Kent Ladder Bookcase 1. Attach 8 × bolts (A) to panels [3], [4] and [5]. 2. Insert 8 × dowels (L) into panels [6] and [7]. 1. Attach 6 × bolts (A) to panel [2]. 3. Attach panels [3] and [4] to panel [6] and secure 2.
- Page 4 Kent Ladder Bookcase 1. Attach 6 × bolts (A) to panel [1]. Slide panel [8] along slots of panels [3] and [5]. 2. Insert 6 × dowels into panels [3], [4] and [5]. 3. Attach panel [1] to panels [3], [4] and [5] and secure...
- Page 5 Kent Ladder Bookcase Attach plastic clips (E) and (F) to panels [9] and [10] 1. Push clip down. and secure with 16 × screws (D). 2. Insert panels [9] and [10] to the cabinet as shown. 3. Push clip back up.
- Page 6 Kent Ladder Bookcase Attach main frame [15] to steel frame [16] and panels 1. Attach steel frames [17] to panel [2] and secure [12], [13], [14] and the cabinet, secure with 5 × screws with 4 × screws (B). (B) and 6 × screws (C).
- Page 7 Kent Ladder Bookcase Attach main frame [15] to steel frame [16] and panels Once assembled lift furniture into place, do not drag. [12], [13], [14] and the cabinet, secure with 5 × screws Fasten to the wall using 2 x wall plugs (J) and 2 x screws (I).
- Page 8 Kent Ladder Bookcase You`re done, enjoy!
