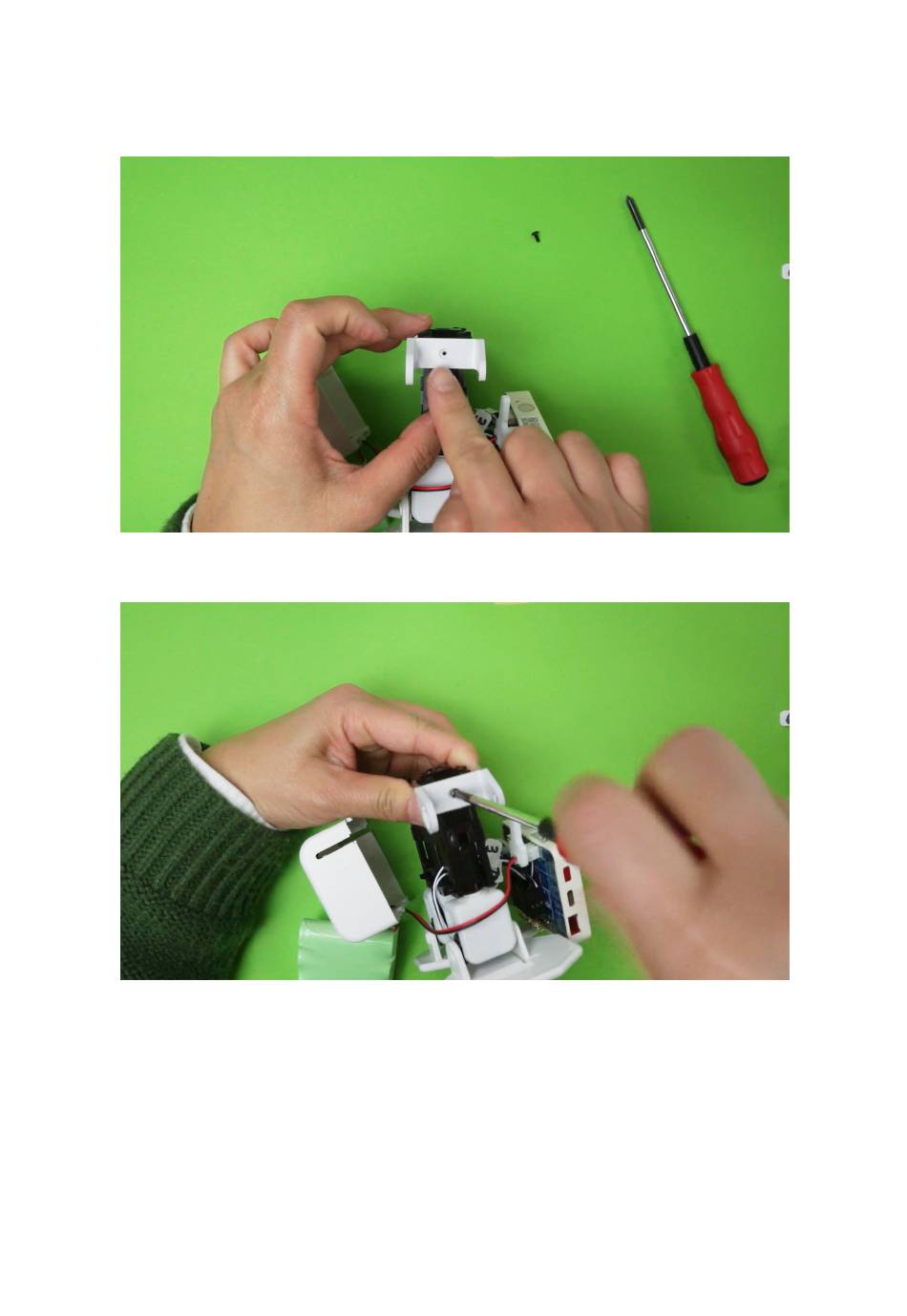

3. Insert the shoulder parts into servo motors 0 and 4 such that the flat edges are aligned with
the servo motor as closely as possible.
The wider side of the shoulder parts with the + cut should be towards the back of the robot.
Screw in the plastic shoulder part into the servo motor.
4. Repeat the previous step for the opposite shoulder
29 / 61
