Procedure
1. Orient the servo bracket such that the long back is horizontal and towards the back when
inserting the servo motors.
The side of the bracket with this long bar in the middle is the "back" of the part and
concordantly the back of the robot.

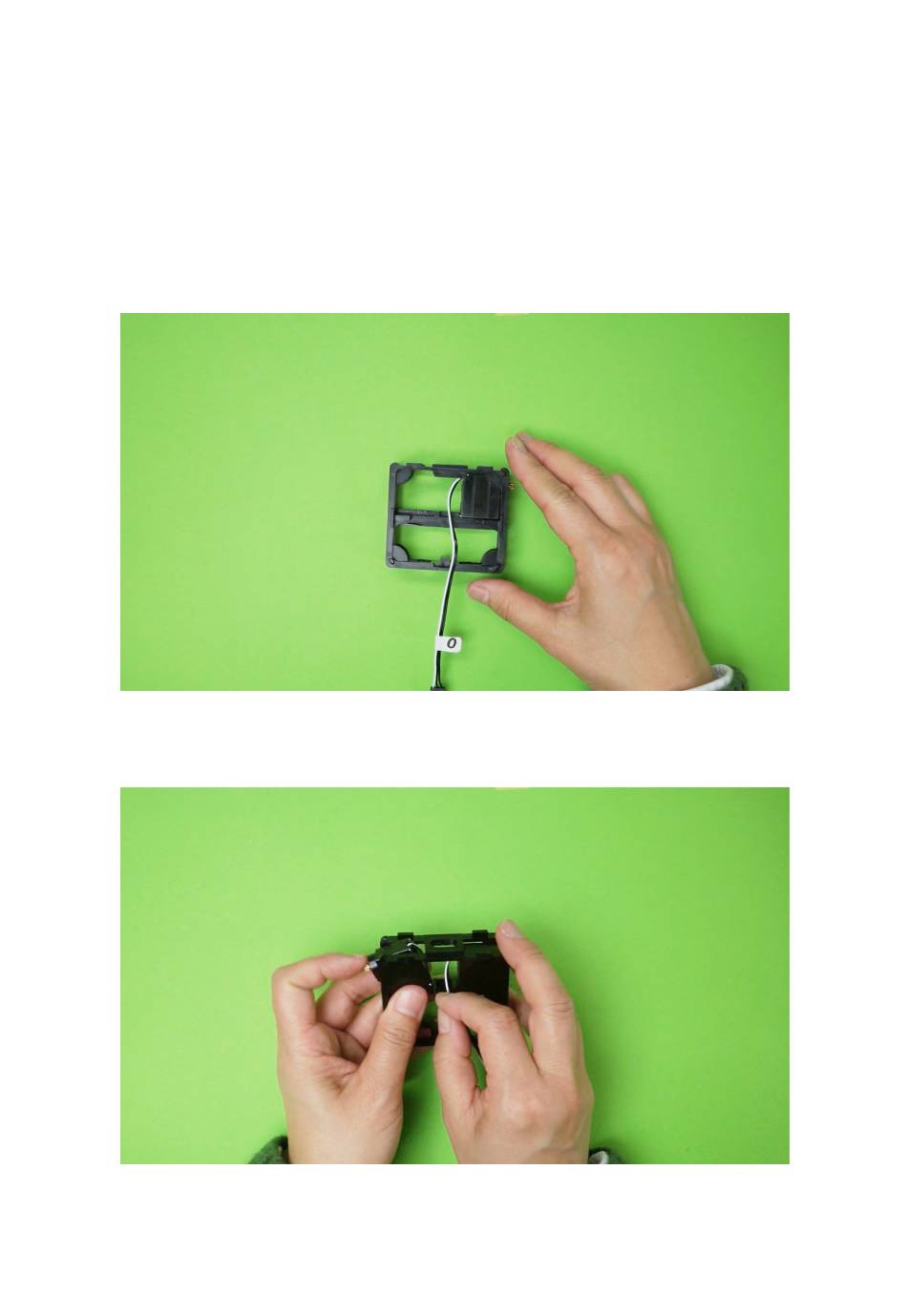

Insert servo motor #0 into the servo bracket as shown. This will be the robot's left arm.
Be careful not to have the cable of servo motor #0 pinched between the motor casing and
plastic parts when assembling.
Have the servo motor cable come out the "front" side of the bracket.
2. Insert servo motor #4 following the same procedure as #0 on the opposite side of the
bracket.
17 / 61
