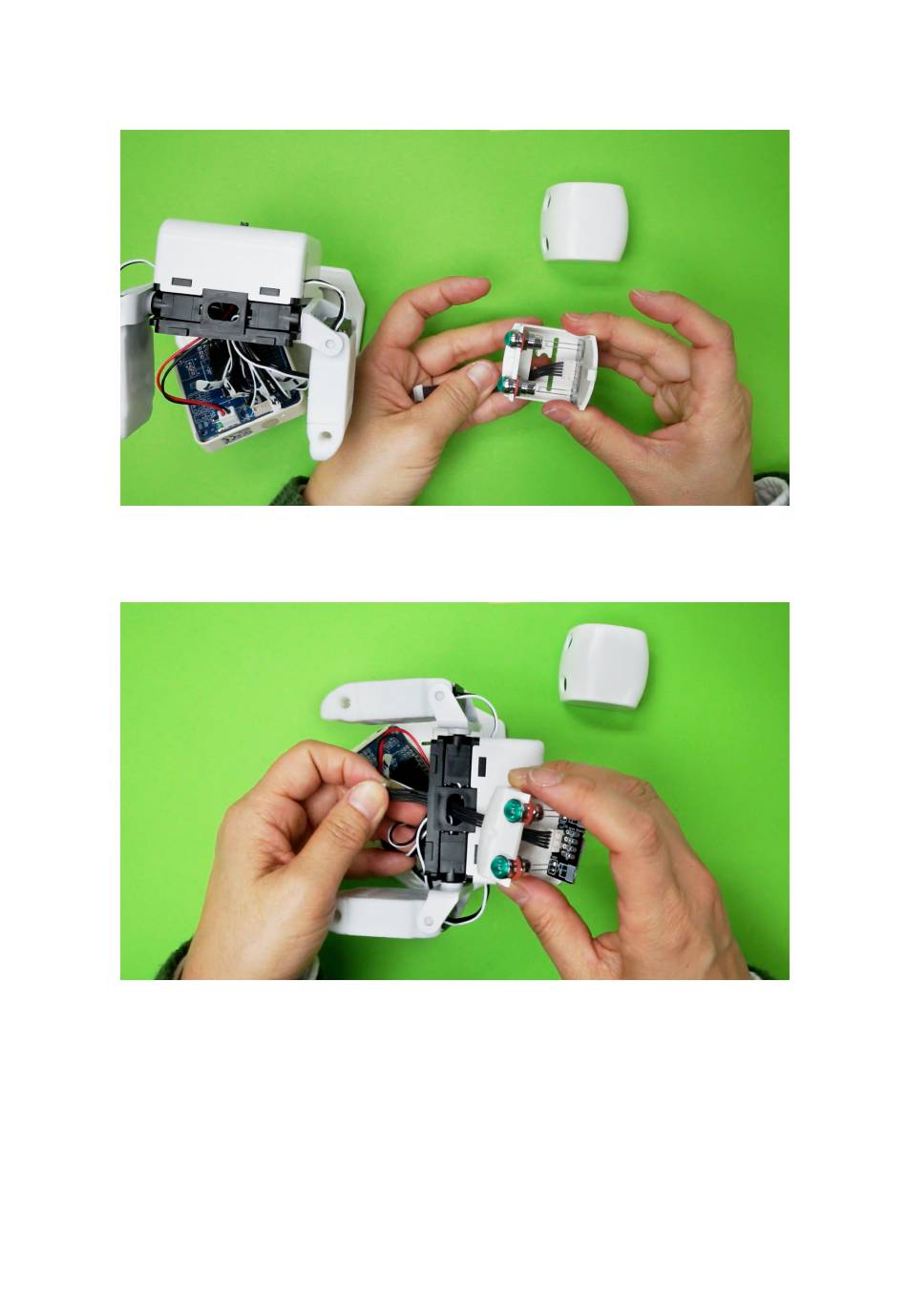

5. Bend the LED legs 90 degrees such that the head-board is rotated up,
and insert both LEDs into the semi-circular grooves in the bottom plastic heat part such that
the nuts on each LED are on the inside of the head.
6. Align and place the top plastic head part onto the bottom part by first passing the LED bulbs
through the top heat eye holes.
