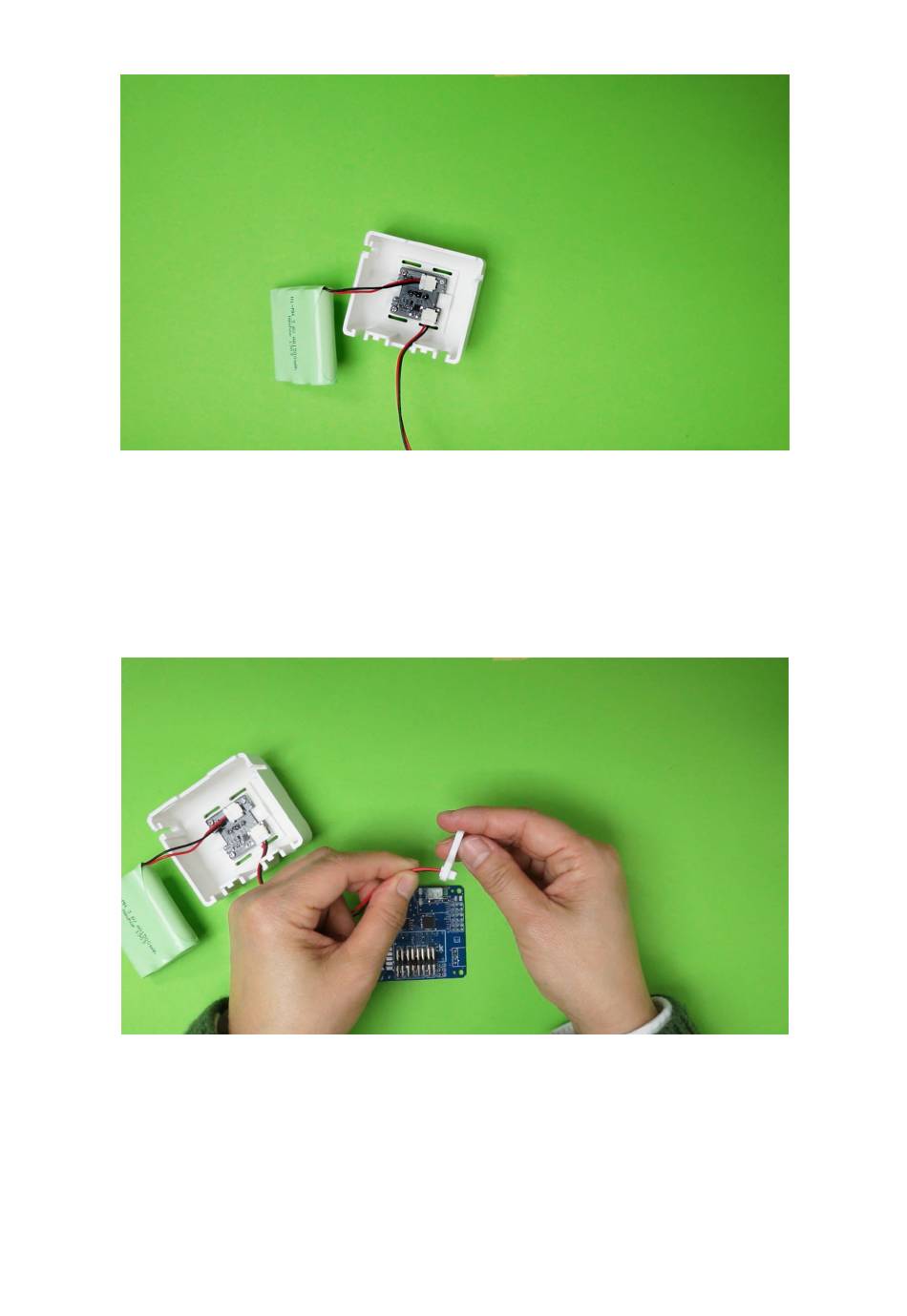

3. Connect the battery to the switch board following the below reference picture.
4. Connect the control board and switch using the power cable. The connectors are different so
please ensure the correct connector slides smoothly into the pins.
※ It is necessary to remove the power cable at the time of "Control board wiring" mentioned
later. In this case, since it is hard to remove the cable from the connector, for children and
people with weak force, use the supplied connector tool. This is a tool to make
it easy to remove by holding this tool between the power cable and the connector.
13 / 61
