Procedure

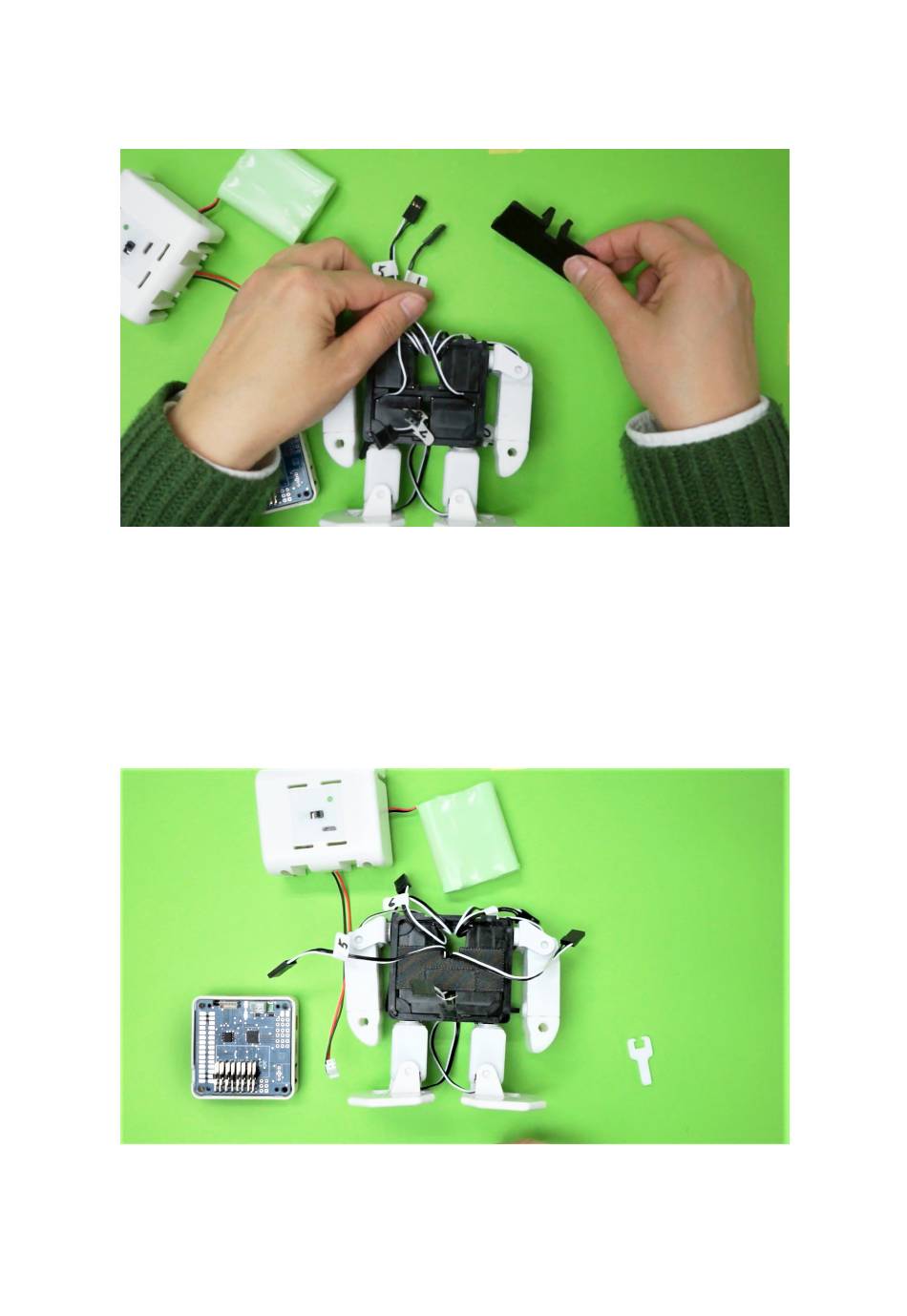

1. Pass the cables of the eight servo motors through the servo bracket and through front as
shown.
2. The cables of motors #3 and 7 are passed through the lower hole of the bracket, and left
there for later.
3. Servo motors #1 and 5 are passed between the opening in the servo fixer,
while the remaining cables are temporarily wrapped up around the top ofthe body to keep
them out of the way.
4. Attach the servo fixer part so as to not catch and pinch any of the other servo motor cables.
36 / 61
