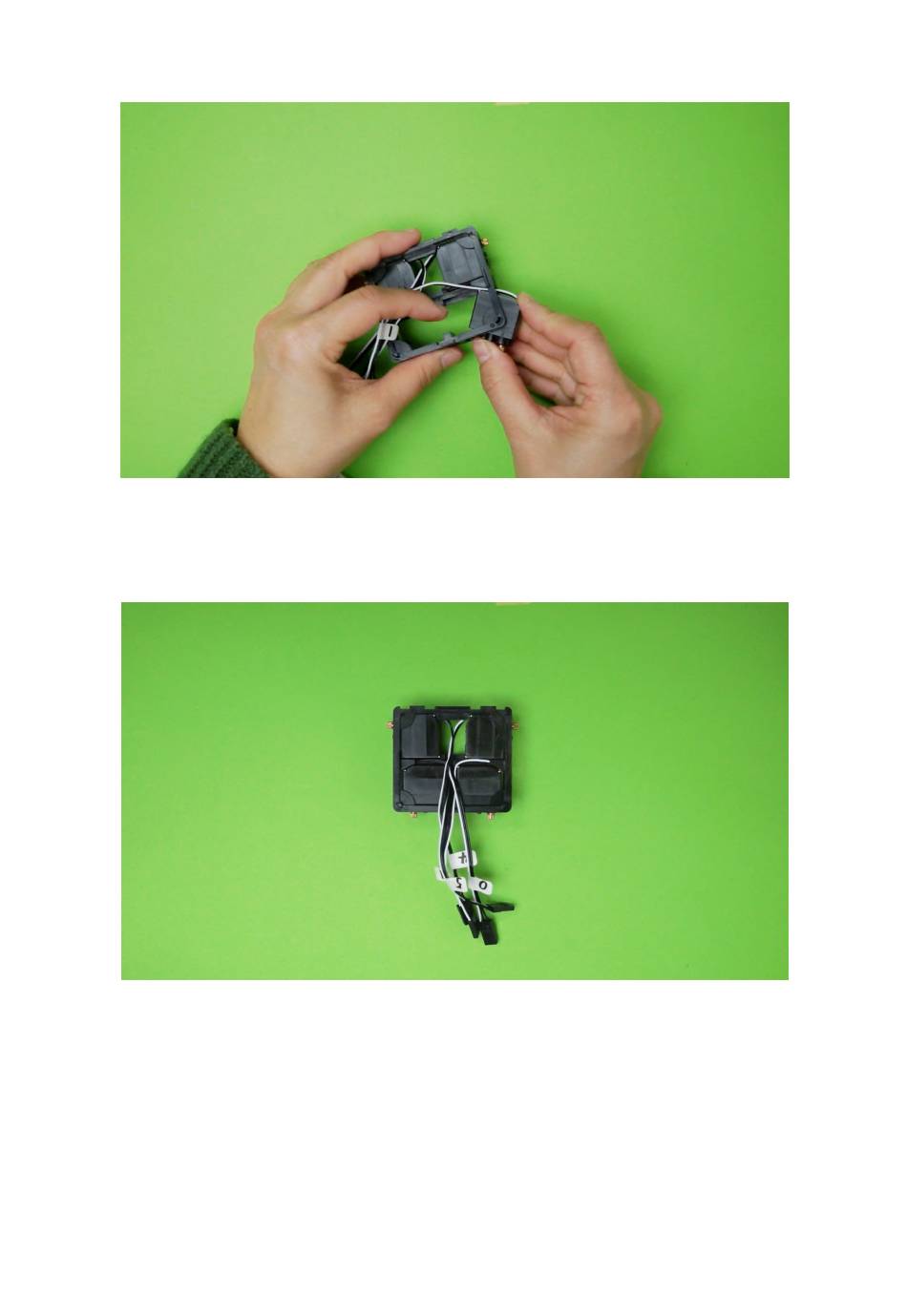

3. Again, be careful not to have the cable of servo motor #1 pinched between the motor casing
and plastic parts when assembling.
4. Insert servo motor #5 following the same procedure as #1 in the last available position in
the bracket.
Ensure all servo motor cables are coming out the "front" face of the bracket.
18 / 61
