Operators Manual
Operation

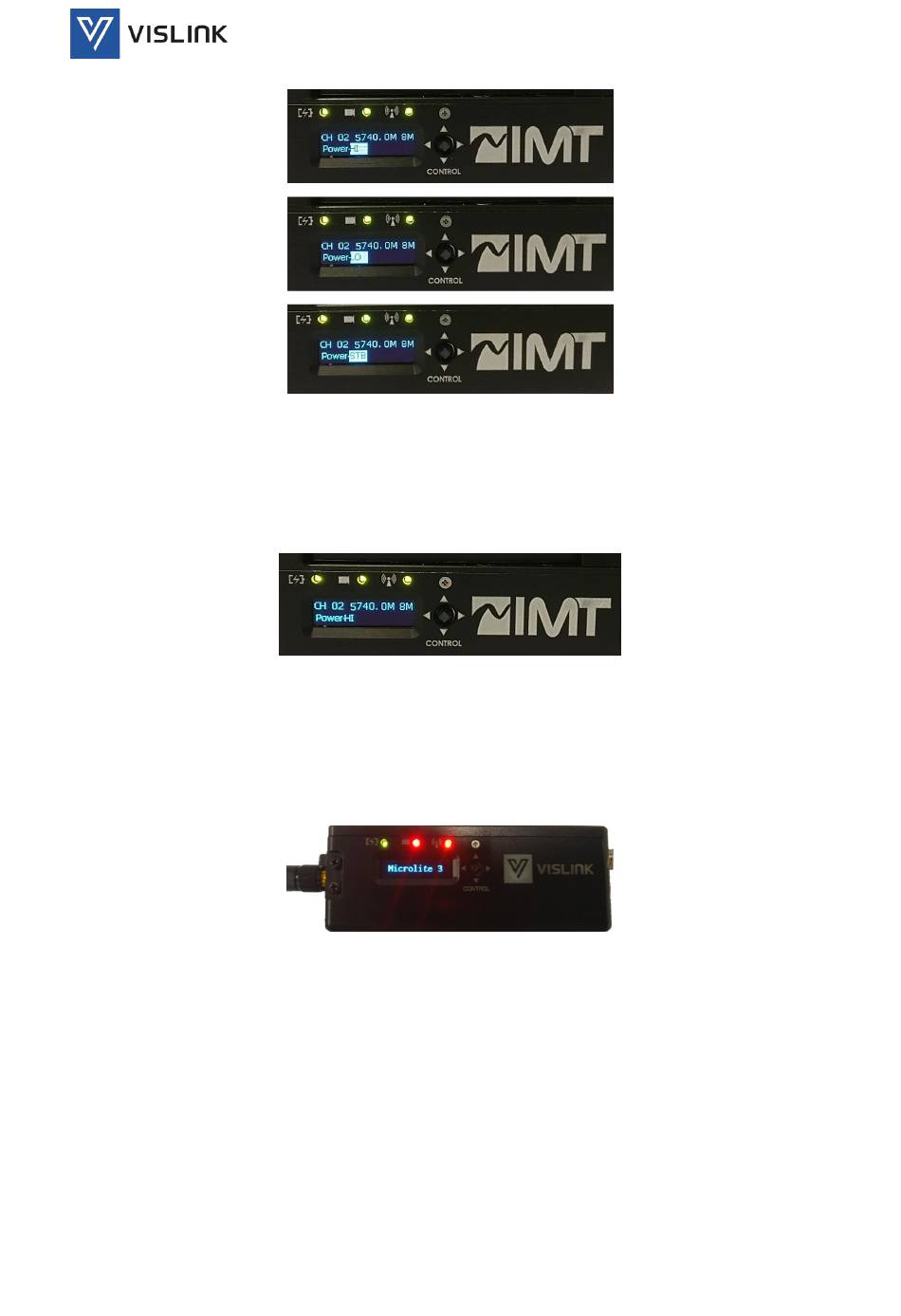

Figure 12: HI, LO, STB Power setting on the OLED Display

When the power setting is changed to Hibernate, the last power setting (HI or LO or STB,
would be shown on the OLED display). Hibernate shuts down every function except for
the control. Use the hibernate function to save battery life.

Figure 13: Last Power Setting

When you switch to HI/LO/SB from Hibernate, the system would reboot (power cycle)
automatically.

Figure 14: Microlite 3 Rebooting from Hibernate

8.2.2.

SCAN Feature

The scan feature is used by the Microlite 3 to select a non-adjacent, clear frequency
channel based on an algorithm. To access this feature, long-press the center of the
toggle button. A screen "DFS SCAN" would be displayed. Once the scan is complete, it
would display the clear channel number of the OLED screen.
.
NOTE: This feature is currently available for the 5GHz version only
M55-ML3-UG, Rev A
25
