The Local User Interface in Figure 6 indicates the following:
•
Channel 2; 5740.0MHz
•
8MHz
•
High Power
•
DVB-T Modulation
•
LED Indicators
• Power ON
•
Video input good
•
Transmitting

8.2. Using the Local User Interface to Control the Microlite 3

The MLT3 local user interface displays the following:
•
Channel and Frequency
•
Bandwidth
•
Power State
• Modulation Type
•
Band (optional)
Only 3 of the parameters may be changed via the front panel joystick (see wireframe below):
•
Channel
• Power State
•
Band (optional)
M55-ML3-UG, Rev A

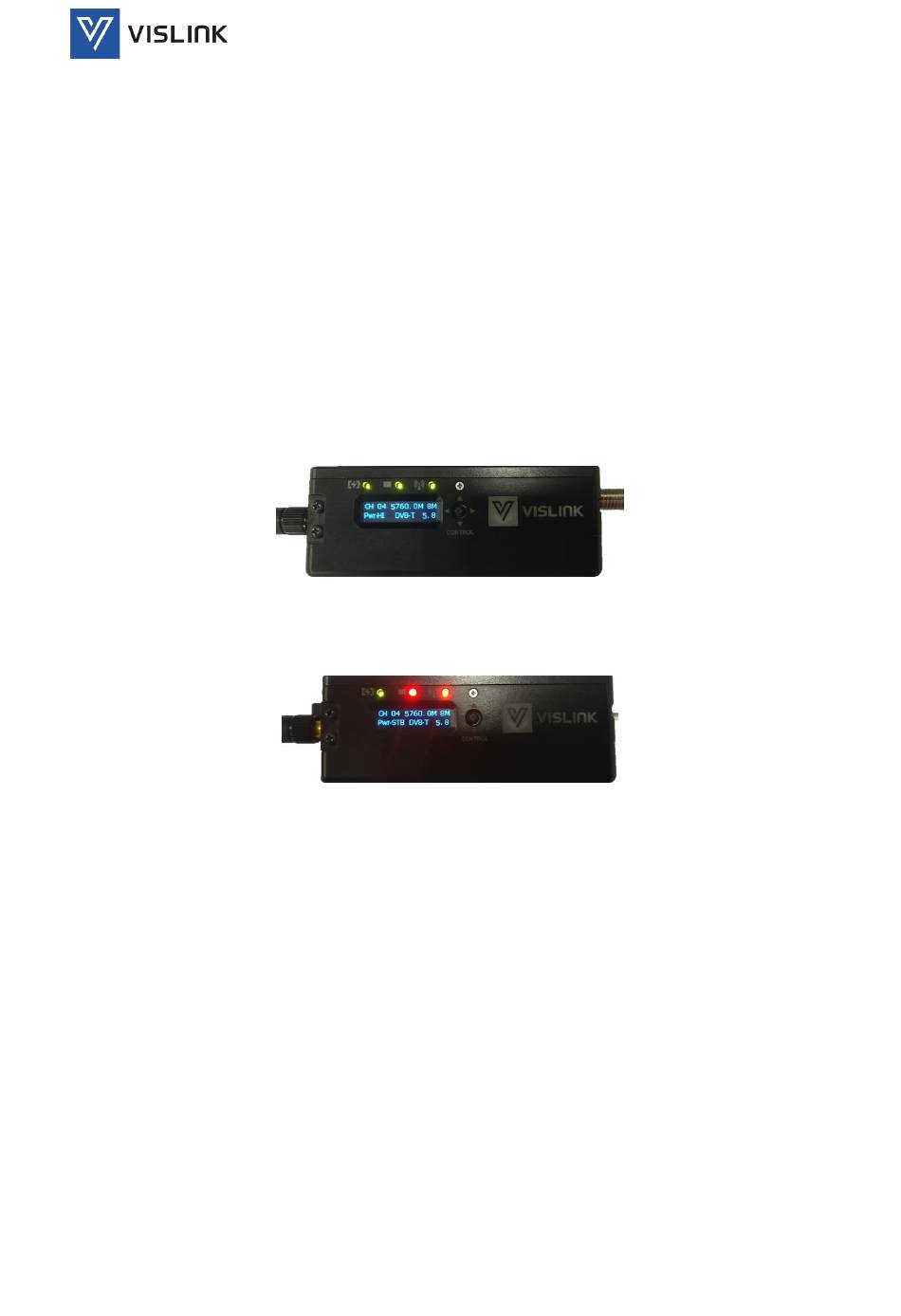

Figure 6: Green LED indicators and OLED Display

Figure 7: No Video Input Sensed and RF is on Standby
