7.3. Ship Kit and Accessories

The MLT3 is shipped in a hardened carrying case with all of the accessories needed for
most applications. All of the accessories are foam shadowed for organization, quick
access, and inventory count at a glance. The accessory kit includes the following:
Line Item
Component Part
No
1 M55-ML3-2L3
2 863-E0053-001-R
3 940-SCC2-18A-R
4 922-B1172-01A
5 921-B437-01A
6 691-00442-00A
7 865-00083-000
8 922-B1065-01A-R
9 922-B907-01C-R
10 865-00076-000-R

7.4. Physical Installation

7.4.1.

Connectors

M55-ML3-UG, Rev A
Part Description
MicroLite 3 laminated quick start guide
CABLE MICRO USB B TO STD A 1.5M
SCC2-18; MicroLite 3 TX Kit Case
Cable, Super Slim High-Speed HDMI Cable M-M (1 foot)
Cable, 1.0/2.3 DIN to BNC Male, 18";L-2.5CHD, 3G/HD-SDI
General Brand right angle bracket with a vertical and
horizontal flash shoe, ML3
Vello Multifunction ball head with removable top & bottom
shoe mount
Power Cable, 7 Pin Lemo to Power Tap, 18"
7 PIN LEMO TO TINNED BARE WIRE;
Revo Hot Shoe to 1/4"-20 Male Post Adapter

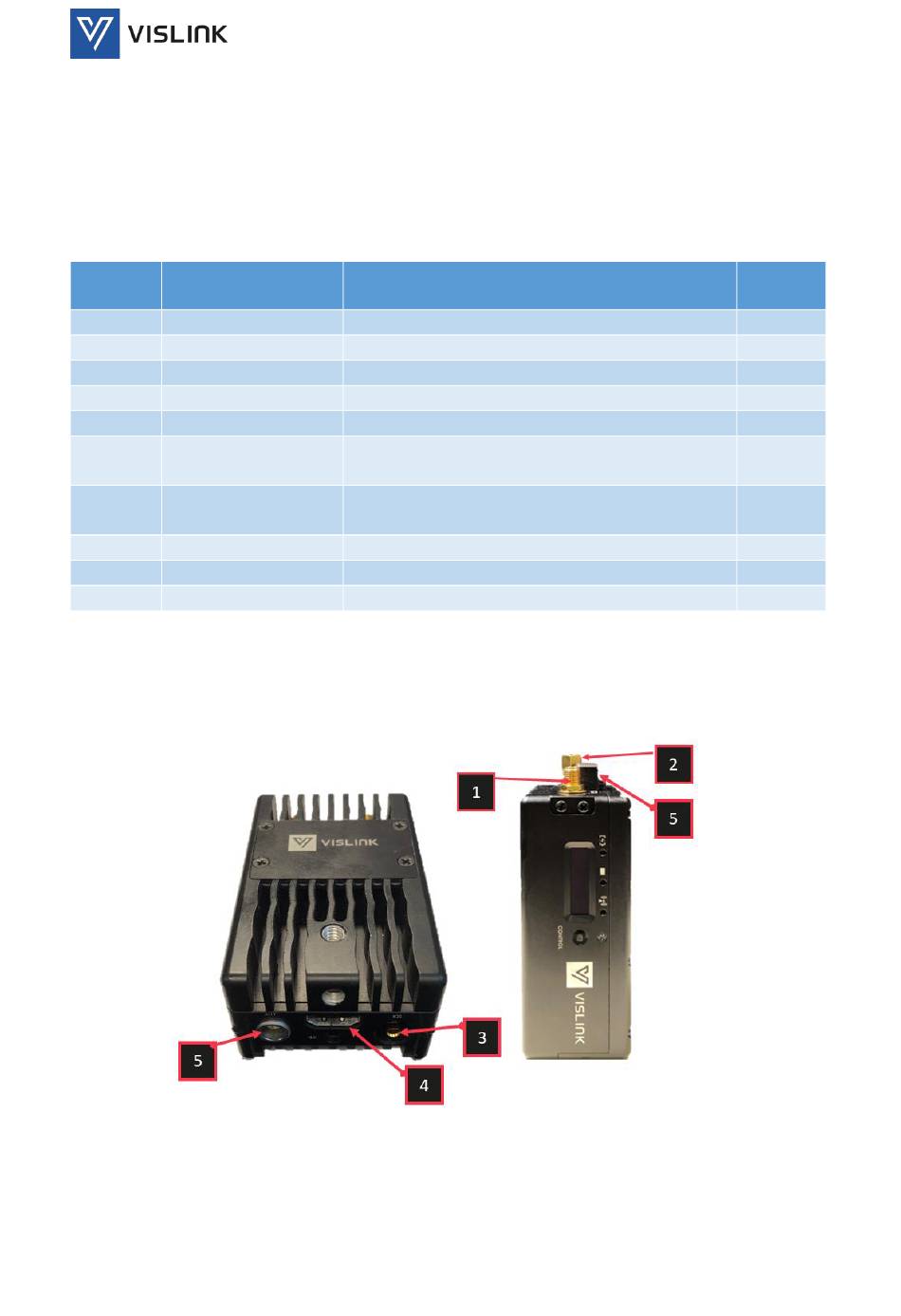

Figure 3: MLT3 Connectors

Operators Manual
Installation
Qty per
Assembly
0
1
1
1
1
1
1
1
1
1
18
