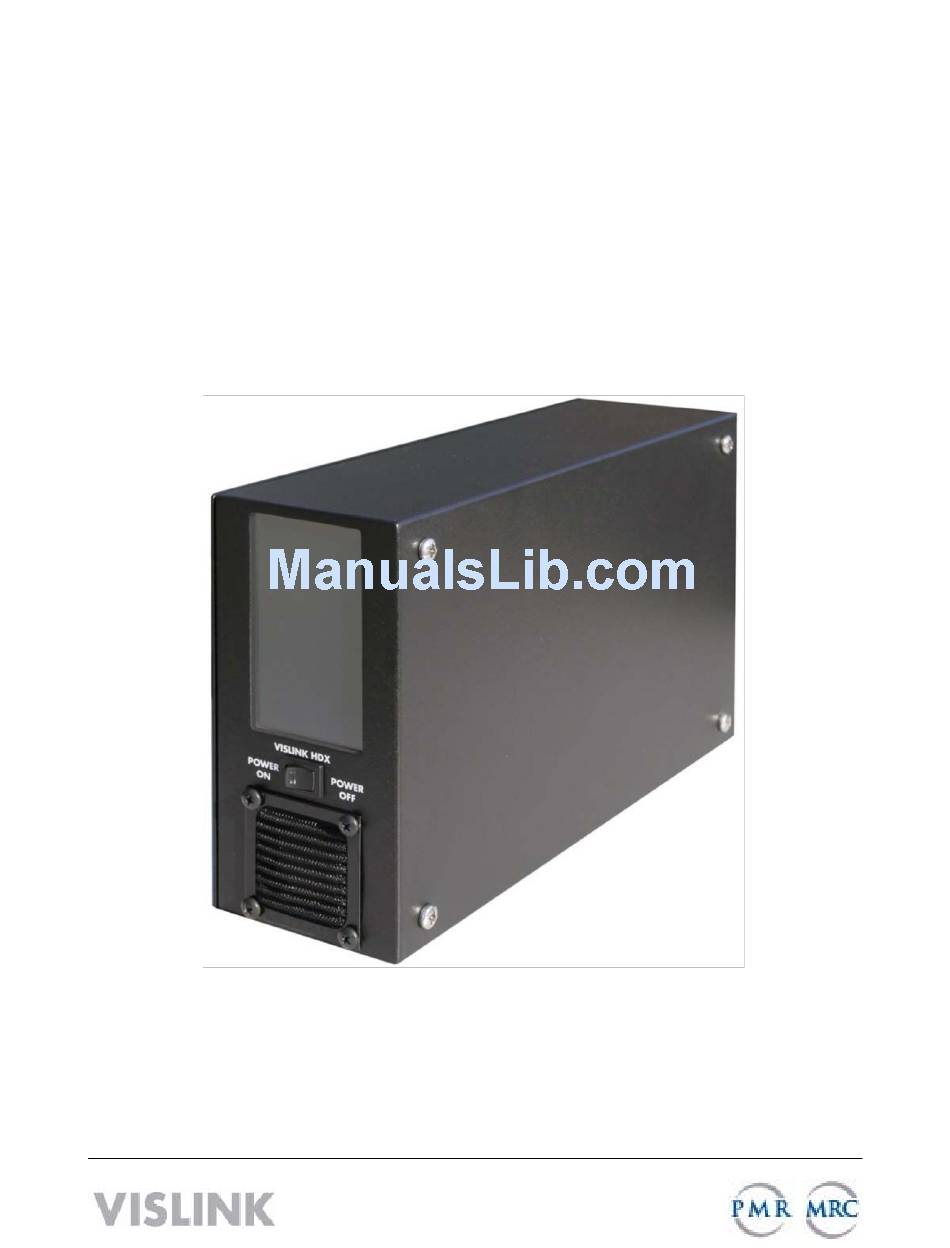

- Page 1 HDX-1100 Aircraft/Terrestrial High Power HD Video Transmitter User and Technical Manual Manual Part No. 400613-1 Rev. 2 March 2010...
- Page 2 The foregoing does not apply to vendor proprietary parts. Vislink has made every effort to ensure the accuracy of the material contained in this manual at the time of printing. As specifications, equipment, and this manual are subject to change without notice, Vislink assumes no responsibility or liability whatsoever for any errors or inaccuracies that may appear in this manual or for any decisions based on its use.
- Page 3 About the HDX-1100 The HDX-1100 Aircraft/Terrestrial High Power HD Video Transmitter (HDX-1100) (shown) is a lightweight and rugged transmitter that is suited for mobile and aircraft environments; able to withstand constant vibration, shock, temperature swings, and humidity. Common uses include law enforcement surveillance and video collection.
- Page 4 Note Hazardous RF radiation limits and recommended distances may vary by country. Observe all applicable state and federal regulations when using this transmitter. To perform calculations to understand the safe exposure margin (MPE), use the following formula suggested by OET 65. The calculations provided are for common antennas often utilized in the ENG environment.
-
Page 5: Selecting A Preset
Vislink, in accordance with the requirements set forth by the FCC, provides this information as a guide to the user and assumes the users of this equipment are licensed and qualified to operate the equipment per the guidelines and recommendations contained within the product user guides and in accordance with any FCC rules that may apply. - Page 6 Selecting the RF Output Level The HDX-1100 recalls the most recently saved RF output power level when it is powered up. To select between high or low power for the RF output level, do the following: 1. Press the RF HI/LOW key. 2.
- Page 7 Use a 9-pin RS-232 null-modem cable to connect the communication path between the RCU and the HDX-1100. A receptacle at the rear of the controller supplies DC power to the RCU. Vislink provides the 2-pin Weidmuller connector (Part # 52104-2) to connect to the power receptacle at the rear of the controller.
- Page 8 3. Select Video Transport Stream from the Video drop down menu. The Transport Stream Settings screen appears. 4. Configure the video and audio parameters as required for the preset and click Apply. 5. Select RF Settings from the Radio drop down menu.
- Page 9 7. Select Modulation Settings from the Radio drop down menu. The Modulation Settings screen appears. 8. Configure the video and audio parameters as required for the preset and click Apply. 9. Select Encryption Settings from the Radio drop down menu. The Encryption Settings screen appears.
- Page 10 11. Select Ancillary Data from the Radio drop down menu. The Ancillary Data Settings screen appears. 12. Configure the video and audio parameters as required for the preset and click Apply. 13. Select Preset Settings from the Radio drop down menu.
-
Page 11: Video Input Connectors
Band and Frequency Options You can order the HDX-1100 for the following frequency bands. Power Frequency Frequency Model Band Frequency Consumption Stability Step Size HDX-1100LS 1.7—2.5 GHz 2.5 ppm 250 Khz HDX-1100S 2.4—2.48 GHz 2.5 ppm 250 Khz HDX-1100C1 3.1—3.5 GHz 2.5 ppm... - Page 12 RF OUT Connector The RF Type N female connector attaches the antenna to the unit. Connector Description Signal Ring Ground DC POWER and CONTROL Connector DC voltage for the HDX-1100 is +10 Vdc to +32 Vdc with reverse voltage protection. Ensure that the power being supplied matches the power required by the equipment.
-
Page 13: Rf Output Power
Encryption Only one encryption scheme is available in a single firmware build. • AES 128-bit • AES 256-bit Note ASI input streams are not encrypted RF Output Power • High Power Mode: Enables PA and supplies output power of 10 W. •... - Page 14 Getting Support for Your HDX-1100 You can contact the Vislink Technical Support staff as follows: 24-hour Worldwide Technical Support E-mail: support@mrcbroadcast.com Telephone: +1 978-671-5929 or 888-777-9221 Customer Service E-mail: customerservice@mrcbroadcast.com Telephone: +1 978-671-5700 Press 3 Monday-Friday, 8AM-5PM EST USA When you contact Technical Support, include the following information: •...
