The projection screen material is our ISF certified CineGrey 5D® , which is a reference quality front
projection material precisely formulated for environments with minimal control over room lighting. It was
designed to enhance picture brightness, accurate color fidelity, and improve contrast levels. The CineGrey
5D® is best for family rooms, educational facilities, conference rooms or any applications in which incident
light is a factor.
In order for the CineGrey 5D® to maintain its projection qualities and optimum performance, please refer to
the list below for proper maintenance and cleaning.
Use a dry microfiber cloth to remove dust from the screen's surface.
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
Never rub or apply pressure when cleaning the surface.
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils
or any other sharp or abrasive objects.
Important Safety & Warning Precautions
Make sure to read this user's guide and follow the procedures below.
Caution: The screen's Black Top Drop is already set to its maximum drop distance. There is NO extra Black
Top Drop in the roller. Please be aware of this as it will void your warranty with Elite ProAV. Unapproved
changes or modifications (except for cutting the power cord for hardwire installations) to this unit are
prohibited and will void your warranty. For more information, please contact our Technical Support
Department at (877) 511-1211 Ext. 604.
Please retain this user's guide for future reference.
To avoid damaging the unit, do not use with any unauthorized accessories not recommended by the
manufacturer.
Handle the unit carefully during transportation to avoid any damages.
To ensure safe and reliable operation, direct connection to a properly grounded power source is
advised.
The power outlet supplying power to the unit should be close to the unit and easily accessible.
Do not install the unit on uneven or inclined surfaces.
Do not put heavy objects on the power cord and position it properly to avoid creating a trip obstacle.
Never overload the power cord to prevent an electric shock or fire due to a loose contact or a short
circuit.
There are not user serviceable parts in this unit. Do not attempt to disassemble this unit by yourself.
No one except authorized technicians can open and make repairs to this unit.
03282019JA

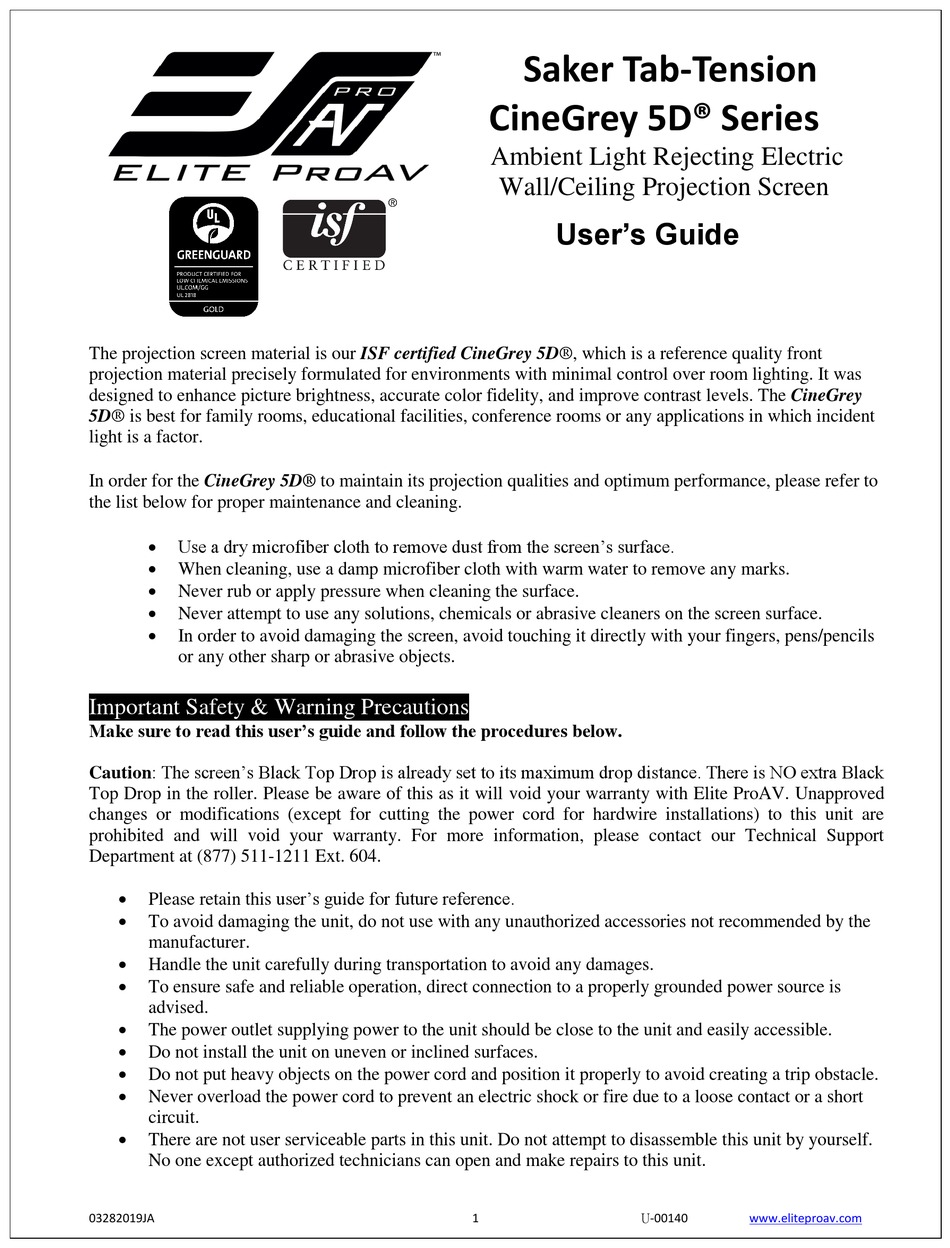

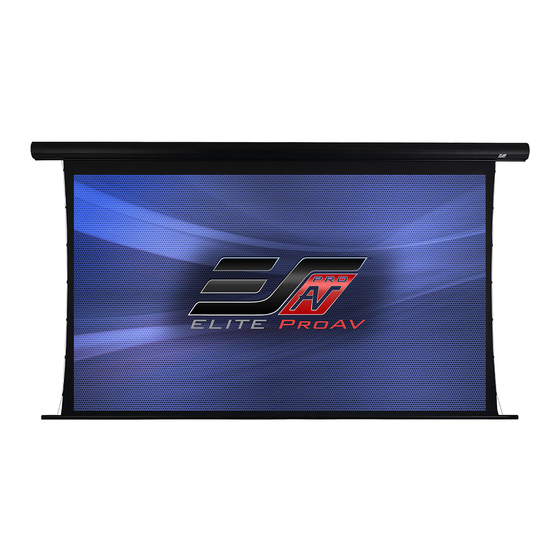

Saker Tab-Tension
CineGrey 5D® Series
Ambient Light Rejecting Electric
Wall/Ceiling Projection Screen
User's Guide
U-00140
1
www.eliteproav.com
