PRODUCT WHITE PAPER
Section 1: Screen Design
1.1 What is it?

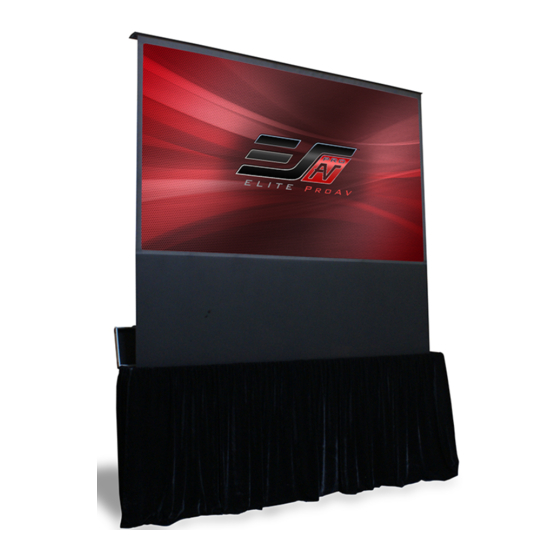

The Kestrel Stage Series is a large venue portable, free standing electric projector screen. It is ideal for Rental &
Staging or other commercial (Pro AV) applications where a mobile projection screen would be required.
1.2 How does it work?
It is integrated into a sturdy wheeled stage case that has handles for easy transport and set-up. As an added
value, a matching roadie flight-case with detachable velvet skirt is included to complete the arrangement. The
flight-case combines with the cased-screen and skirt to create a professional-grade mobile projection display.
Models also available without the ATA Stage Travel Case.
Section 2: Product Features
2.1 Characteristics
Screen Material
GREENGUARD® Certified MaxWhite® Fiberglass (FG) with 1.1 Gain
•
180° wide viewing angle
•
Active 3D, 4K Ultra HD, and HDR ready
•
Not compatible with Ultra/Short-throw Projectors
•
Border masking frames the projection surface
•
Material has black-backing
•
Available in the following diagonal sizes:
•
110" and 131" in 4:3 format
•
100", 120" and 150" in 16:9 format
•
125" and 154" in 16:10 format
•
Design and Installation
Rises and lowers by our motorized precision "scissor-backed" cross spring risers
•
Integrated stage case
•
Wheeled-design includes handles on each side for easy transport and handling
•
Black drape (skirt) included for enhanced aesthetics
•
Detachable wheeled flight-case with internal storage shelves
•
Screen assembly attaches to the flight-case halves when set up for video mode
•
Wheel locking mechanisms
•
Control System
In-line UP/STOP/DOWN control switch
•
Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India
Elite Screens China Ltd. | Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia
http://www.eliteproav.com
Kestrel Stage Series
.
.
1
