Elite ProAV AV Manual B Series Quick User Manual

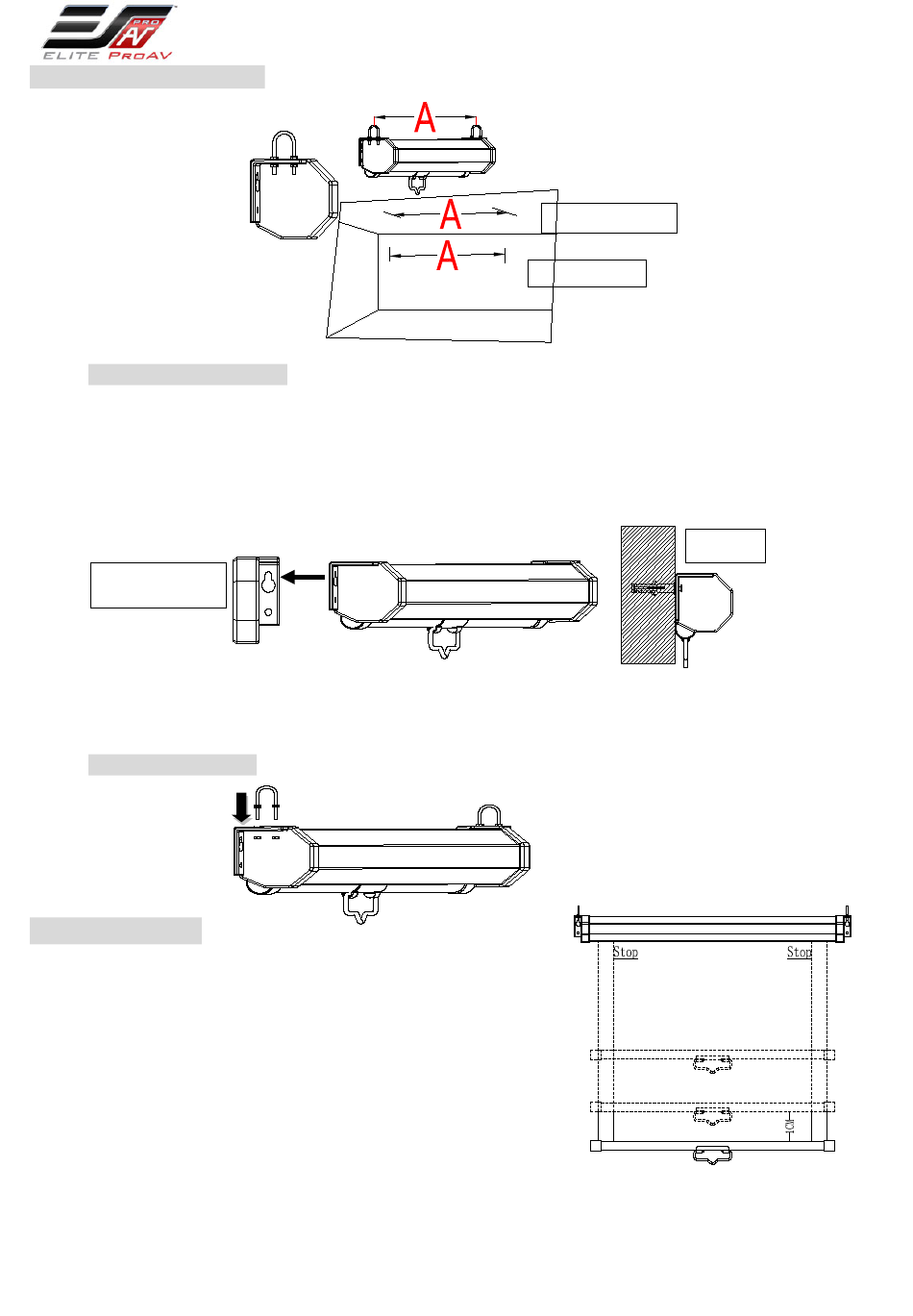

Screen Installation Methods
A. Flush Wall Installation
1. Measure the distance of the keyholes on the end caps and mark the location of where
the screen is to be installed for the pre-drilled hole.
2. After marking the area and drilling the hole, insert the proper screw into the drilled
hole and leave about 1/8" of an inch from the wall to mount the screen.
3. Mount your screen from the keyhole located on back of screen's left and right end caps.
Note: Do not remove the end caps to mount the screen to the wall.
Removing the end caps will release the tension of the internal spring
Keyhole located on
back of end cap.
Note: No hardware is included with this screen for installation. For wall mounting in to drywall, drywall anchors and
screws will suffice to sustain the weight of this screen. For any other type of wall mounting, please consult with your
local hardware store to obtain the proper hardware.
B. Ceiling Installation

Screen Operation

1. Pull the screen down from the lanyard or from the handle only at
a 90-degree angle. The screen is designed to lock at 2 inch intervals.
To achieve this, make sure to pull straight down and allowing the
screen to come up to lock into place. Do not attempt to pull the
screen down by the surface or touch the screen, as it will
damage the screen and void the warranty.
2. To retract the screen, simply pull the screen down more than 2
inches with a quick snap of the wrist and guide it back up in to the
housing without releasing the handle.
Attention: When retracting, always pull the screen down at a 90-degree angle and do not let go until the screen is entirely inside
the housing. If ever the screen feels stuck, keep in mind that the screen's mechanism is new and needs to be run up/down a few
times to loosen up. If this happens, carefully, with a little force, yank the screen straight down to unlock the mechanism.
Rev. 11/26/2018
AV Manual B Series
QUICK USER'S GUIDE
Ceiling Installation
Wall Installation
mechanism.
Side view
U-bolts included with Manual B-series for
hanging from the ceiling using chains and
S-hooks. (Chains and S-hooks not included)
(E type)
eliteproav.com
