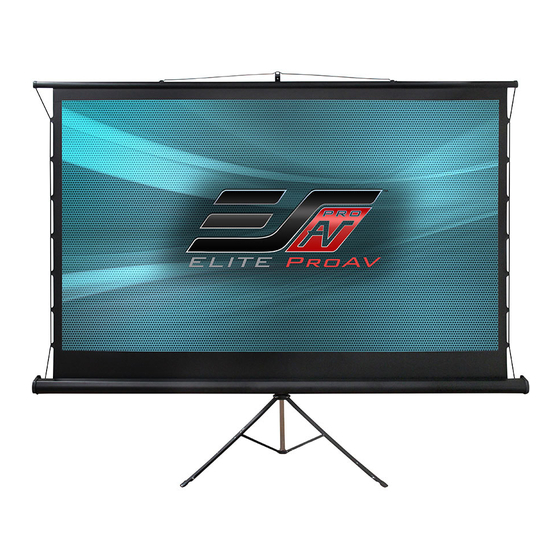

Elite ProAV Manual Tab-Tension Pro Series User Manual

___________________________________________________________________________________________________________________________
Thank you for choosing the Manual Tab-Tension Pro Series projection screen! This tab-tensioned manual screen
is offered in two front projection materials. The CineWhte® UHD-B best performs under a light controlled
environment since it is a matte white surface. For rooms with minimal control over room lighting, we offer our
award-winning GREENGUARD GOLD® and ISF Certified CineGrey 5D®. It is precisely formulated to
enhance picture brightness, offer accurate color fidelity, and improve contrast levels. The CineGrey 5D® is best
for family rooms, educational facilities, conference rooms, house of worship or any applications in which incident
light is a factor.
In order for the CineWhite UHD-B/CineGrey 5D® to maintain its projection qualities and optimum performance
please refer to the list below for proper maintenance and cleaning.
•
Use a dry microfiber cloth to remove dust from the screen's surface.
•
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
•
Never rub or apply pressure when cleaning the surface.
•
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
•
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any
other sharp or abrasive objects.
Please be sure to read the precautions and operating instructions carefully before operating the screen.
Proper maintenance and handling will ensure a longer lifespan of the product.
Note: Wall screws included with this product are complementary and may not be adequate for all mounting
surfaces. Consult with a professional installer or hardware store for proper mounting screws and anchors.
Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on
the viewing surface will not cause the screen case to become loose or fall. The installer must ensure that proper
mounting hardware and the fasteners used are of adequate strength and suitable for the mounting surface.
Hardware Parts List
Please make sure all parts listed below are included before proceeding with the installation.
A. Mounting Bracket
Item Part List
A Mounting Bracket
B Eyebolt
C Drywall Anchor
D Screw
E Nut
F Washer
Rev. 10152019JA
Slow Retract Tab-Tensioned Manual Projection Screen
C. Dry-wall Anchor/
B. Eyebolt
100" Screen 106" Screen
2
2
6
6
4
4
Manual Tab-Tension Pro Series
For models: CineWhite UHD-B (matte white) and
CineGrey 5D® (Ceiling/Ambient Light Rejecting)
D. Screw
113" Screen
2 2
2 2
6 6
6 6
4 4
4 4
1
User's Guide
E. Nut F. Washer
125" Screen 140" Screen
2
2
6
6
4
4
www.eliteproav.com
3
3
9
9
6
6
